H3c Versatile Ls-5024PV5-Ei Power Supply Unit for Various Devices
Product Details:
| Brand Name: | H3C |
| Model Number: | LS-5024PV5-EI-HPWR |
| Document: | H3C S5000PV5-EI.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | LS-5024PV5-EI | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | 24 | Transport Package: | Carton |
| Specification: | 440× 160× 43.6 Mm | Trademark: | H3c |
| Origin: | China | ||
| Highlight: | 5024PV5 Ei Power Supply Unit,H3C Ls-5024PV5-Ei Power Supply Unit |
||
Product Description

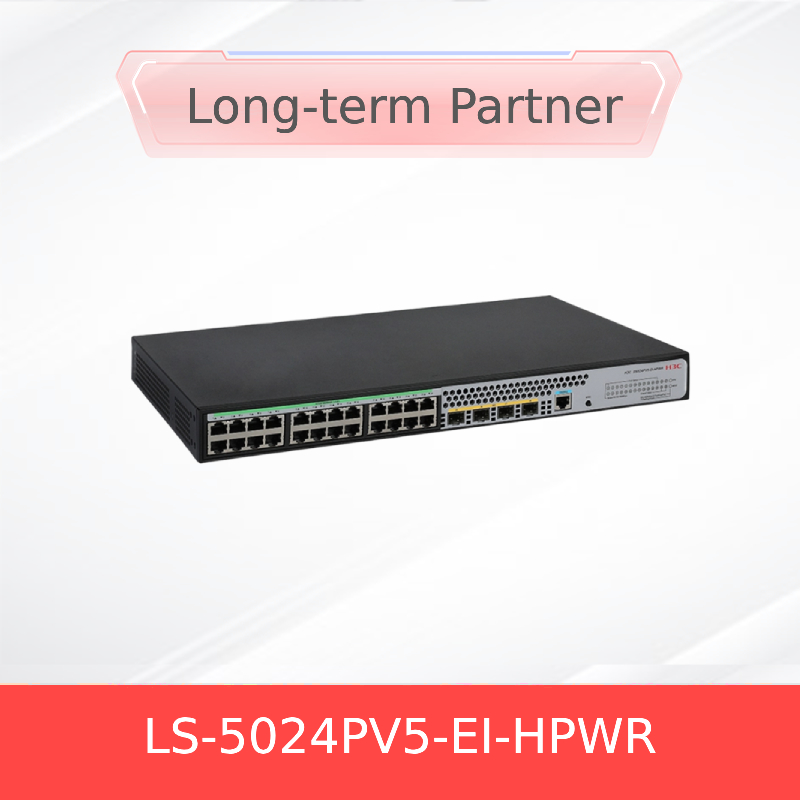

H3C S5024PV5-EI-HPWR 24-Port Gigabit PoE+ Managed Switch
1. Product Overview
The H3C S5024PV5-EI-HPWR represents a high-performance, fully managed Gigabit Ethernet switch designed for modern enterprise networks requiring robust Power over Ethernet capabilities. This 24-port switch delivers 370W of total PoE+ budget, supporting up to 30W per port to power IP phones, wireless access points, and surveillance cameras. With advanced features including IRF stacking technology, comprehensive security protocols, and IPv6 support, this H3C switch provides reliable connectivity and intelligent management for growing business networks. Its energy-efficient design and flexible configuration options make it ideal for bandwidth-intensive applications.
2. Key Features
- 24×10/100/1000Base-T PoE+ ports with 4×1000Base-X SFP uplinks
- 370W total PoE budget with 30W maximum per port
- IRF stacking technology (up to 9 devices)
- Advanced security features including 802.1X and MAC authentication
- Comprehensive QoS with SP/WRR/SP+WRR scheduling
- IPv6 support with dual-stack operation
- Layer 3 static routing capability
3. Technology & Standards
The S5024PV5-EI-HPWR complies with IEEE 802.3, 802.3u, 802.3ab, and 802.3at (PoE+) standards. It supports advanced networking protocols including STP/RSTP/MSTP, IGMP snooping, and static routing. Security features include 802.1X authentication, ACL filtering, and DHCP snooping. The switch utilizes H3C's Comware platform for robust performance and management capabilities.
4. Working Principle
This H3C switch operates as a centralized connectivity point, using store-and-forward switching architecture to ensure data integrity. The integrated PoE controller manages power allocation to connected devices based on negotiated requirements. Advanced traffic management algorithms prioritize critical applications while security processors inspect packets for threats. The IRF technology allows multiple physical switches to operate as a single logical device, simplifying management and improving redundancy.
5. Applications
The H3C S5024PV5-EI-HPWR is ideal for:
- Enterprise access layer deployments with PoE requirements
- IP surveillance systems with multiple cameras
- Wireless network infrastructure with multiple access points
- VoIP phone system implementations
- Educational and healthcare facility networks
- Medium-sized business core switching
6. Specifications
| Specification | Value |
|---|---|
| Fixed Ports | 24×10/100/1000Base-T RJ45 + 4×1000Base-X SFP |
| PoE Budget | 370W total |
| PoE Standard | IEEE 802.3at (PoE+) |
| Switching Capacity | 96Gbps |
| Forwarding Rate | 72Mpps |
| Power Consumption | 294W (max with PoE) |
| Dimensions (W×D×H) | 440 × 260 × 44 mm |
| Weight | 4.5kg |
7. Advantages
- High PoE budget supports multiple power-hungry devices simultaneously
- IRF stacking technology simplifies management and improves scalability
- Comprehensive security features protect against network threats
- Energy-efficient design reduces operational costs
- Flexible uplink options with SFP ports for fiber connectivity
- Future-proof with IPv6 support and advanced management capabilities
8. Service & Support
We provide a comprehensive 5-year hardware warranty with advanced replacement service. Our technical support team offers 24/7 assistance with remote configuration help. We ensure prompt delivery with global shipping options and provide firmware updates throughout the product lifecycle.
9. FAQ
Q: What is the maximum power output per port?
A: Each port supports up to 30W of PoE+ power, compliant with IEEE 802.3at standard.
Q: Does this switch support VLAN configurations?
A: Yes, it supports up to 4K VLANs with advanced features like protocol-based VLAN and MAC-based VLAN.
Q: Can multiple switches be stacked together?
A: Yes, the switch supports IRF stacking technology for up to 9 devices in a single logical stack.
Q: What management options are available?
A: It supports CLI, Web interface, Telnet, SSH, and SNMP v1/v2c/v3 for flexible management.
10. Precautions
- Ensure adequate ventilation and clearance around the switch for proper heat dissipation
- Verify total power requirements when connecting multiple PoE devices
- Use compatible H3C SFP modules for fiber uplink connections
- Follow proper ESD precautions during installation and maintenance
- Operate within specified temperature range (0°C to 45°C)
