Ndr Max Speed 400gbps Infiniband mellanox network Switch MQM9700-NS2R(920-9B210-00RN-0M2) Perfect for Customer Requirements by Nvidia Qm9700 1u
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MQM9700-NS2R(920-9B210-00RN-0M2) |
| Document: | MQM9700 series.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MQM9700-NS2R(920-9B210-00RN-0M2) | Transmission Rate: | 400g |
|---|---|---|---|
| Ports: | 64 | Technology: | Infiniband |
| Max Speed: | Ndr | Transport Package: | Packing |
| Highlight: | 920-9B210-00RN-0M2 Mellanox Network Switch,400Gbps infiniband Mellanox Network Switch,Qm9700 1u Mellanox Network Switch |
||
Product Description

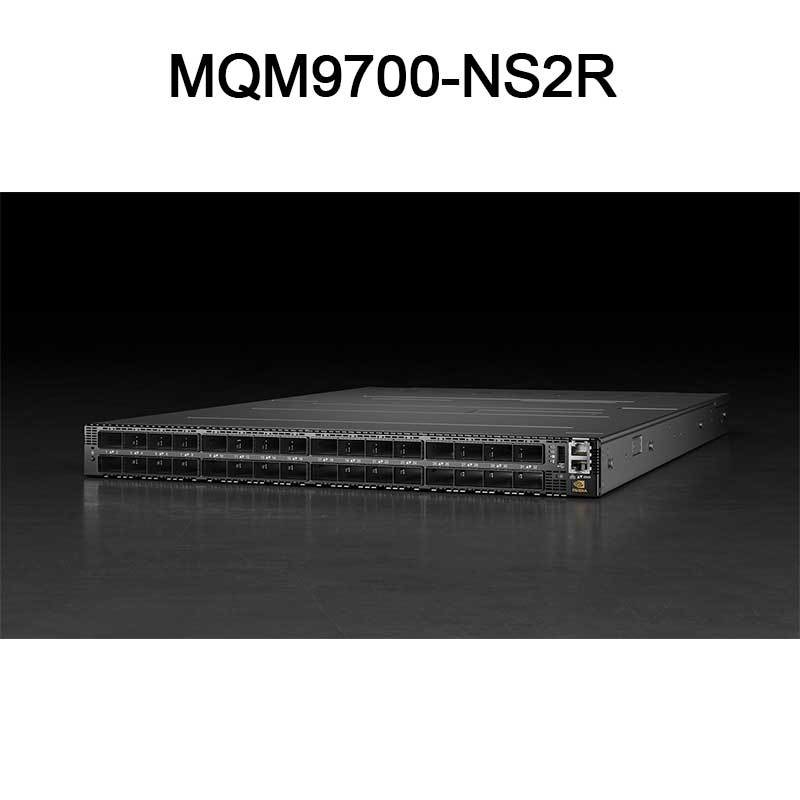

NVIDIA Quantum-2 QM9700 Series 400G InfiniBand Switch
Ultimate Networking Performance
MQM9700-NS2R Product Overview
The NVIDIA Quantum-2 QM9700 Series sets a new benchmark for high-performance networking infrastructure, engineered to meet the extraordinary demands of next-generation artificial intelligence, machine learning, and scientific computing environments. This revolutionary 400G InfiniBand switch delivers unprecedented bandwidth, ultra-low latency, and innovative in-network computing capabilities that transform computational efficiency for the world's most challenging workloads.
MQM9700-NS2R Technical Specifications
| Specification | Details |
|---|---|
| Port Configuration | 64 × 400Gb/s InfiniBand, 32 OSFP connectors |
| Total Bandwidth | 51.2 Tb/s bidirectional throughput |
| Chassis Dimensions | 1RU (1.7" H × 17.0" W × 26.0" D) |
| Power System | 1+1 redundant hot-swappable PSUs |
| System Weight | 14.5 kg (31.97 lbs) |
| Management | CLI, WebUI, SNMP, JSON-RPC |
| Cooling | Hot-swappable fans, dual airflow options |
| Temperature Range | 0°C to 35°C (forward), 0°C to 40°C (reverse) |
MQM9700-NS2R Advanced Technology
The QM9700 incorporates NVIDIA's cutting-edge technologies including Remote Direct Memory Access (RDMA), Scalable Hierarchical Aggregation and Reduction Protocol (SHARP), and intelligent adaptive routing. These innovations work together to minimize latency, maximize bandwidth efficiency, and accelerate distributed AI and high-performance computing applications beyond previous limitations.
Performance Features

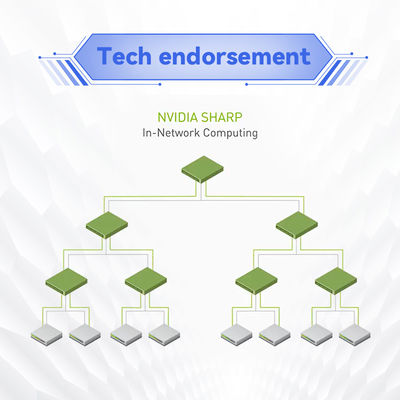

SHARPy3 Technology
32× greater AI acceleration through advanced in-network computing capabilities within the switch architecture.
Adaptive Routing
Intelligent traffic management across 64 non-blocking ports with real-time load balancing and congestion control.
Multi-Topology Support
Compatible with Fat Tree, SlimFly, DragonFly+ architectures for maximum deployment flexibility.
Backward Compatibility
Full support for existing InfiniBand infrastructure with seamless integration and investment protection.
Applications
Optimized for AI training clusters, high-performance computing, scientific research, and large-scale cloud data centers. The QM9700 supports diverse network architectures for both current requirements and future expansion across various industries.
MQM9700-NS2R Model Comparison
| Model | Management | Airflow | Use Case |
|---|---|---|---|
| MQM9700-NS2F | Onboard Manager | Port-to-Power | Standard deployment |
| MQM9700-NS2R | Onboard Manager | Power-to-Port | Reverse airflow |
| MQM9790-NS2F | External Management | Port-to-Power | UFM integration |
| MQM9790-NS2R | External Management | Power-to-Port | Advanced management |
Frequently Asked Questions
What are the operating specifications?
Temperature: 0°C to 35°C (forward airflow), 0°C to 40°C (reverse airflow). Humidity: 10% to 85% non-condensing. Altitude: up to 3050m.
Backward compatibility with existing infrastructure?
Yes, full compatibility with previous InfiniBand generations and support for both copper and optical cabling solutions.
Management options available?
CLI, WebUI, SNMP, JSON-RPC interfaces, with optional NVIDIA UFM software for advanced management capabilities.
Operational Guidelines
- Maintain temperature within specified ranges for optimal performance
- Use certified optical transceivers and cabling for guaranteed compatibility
- Follow all applicable EMC and safety regulations
- Implement regular firmware updates for performance and security
- Ensure proper airflow management in data center environment
