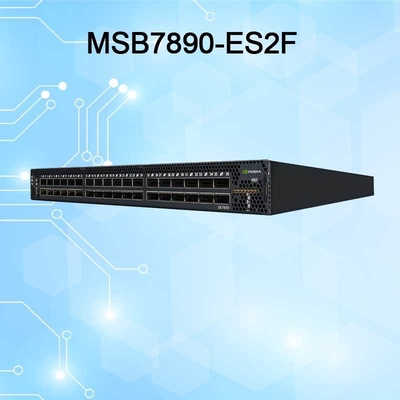

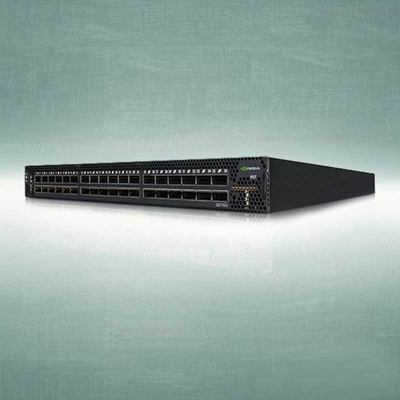

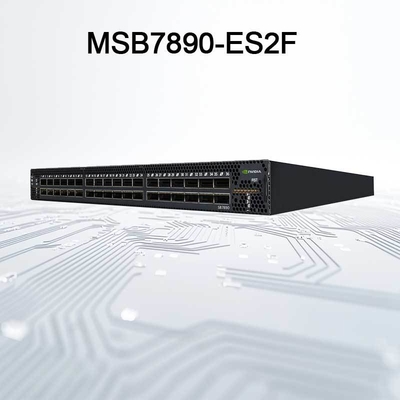

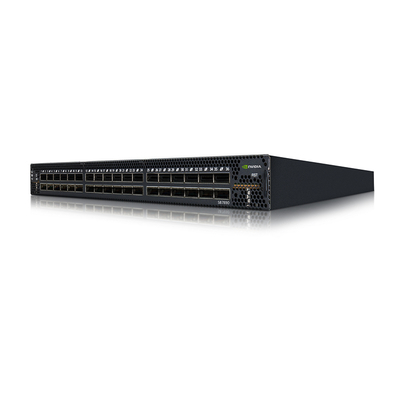

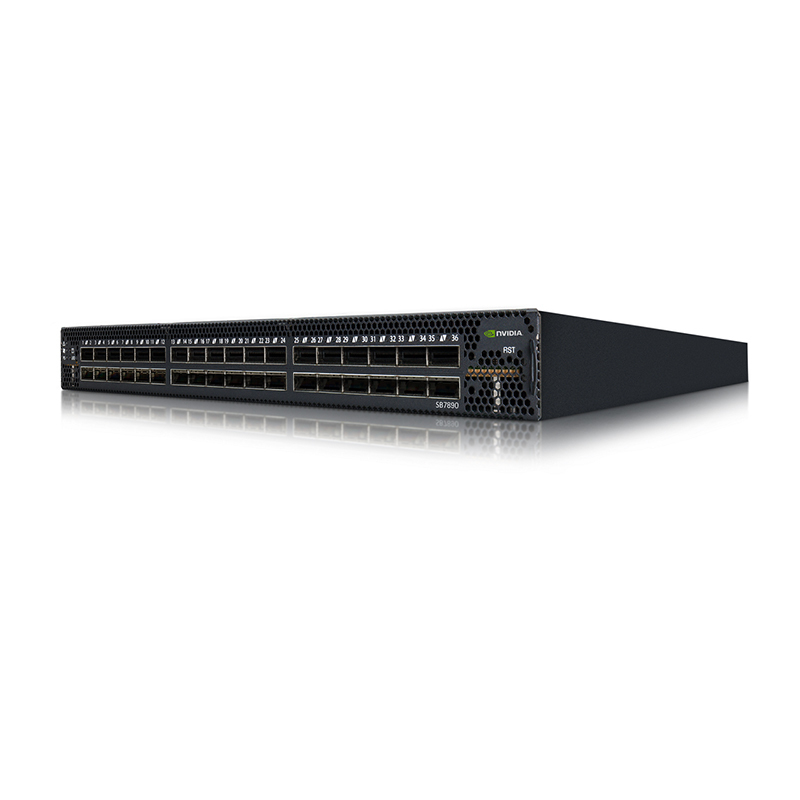

MSB7890-ES2F Mellanox Network Switch 36 port
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MSB7890-ES2F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T,XTransfer,Western Union,MoneyGram |
|
Detail Information |
|||
| Products Status: | Stock | Application: | Server |
|---|---|---|---|
| Condition: | New And Original | Warranty: | 1 Year |
| Switching Capacity: | 2.6 Tbps | Uplink Connectivity: | 200 Gbps |
| Name: | Mellanox Network Switch MSB7890-ES2F 36-port Non-blocking Externally Managed EDR 100Gb/s InfiniBand Switch | Keyword: | MSB7890-ES2F Mellanox Network Switch |
| Highlight: | MSB7890-ES2F Mellanox Network Switch,36 port Mellanox Network Switch,36 port Mellanox Switch |
||
Product Description
SB7890: EDR 100Gb/s InfiniBand Smart Switch System
1. Product Overview
The Mellanox SB7890 is a groundbreaking 36-port non-blocking EDR 100Gb/s InfiniBand smart switch system, designed for high-performance computing and enterprise data centers. It delivers an industry-leading 7.2Tb/s aggregate throughput with ultra-low latency of 90ns, making it the ideal solution for data-intensive applications. This network switch incorporates innovative in-network computing technology to accelerate collective operations and optimize fabric performance.
2. Key Characteristics
- 36 non-blocking EDR 100Gb/s ports supporting full bi-directional bandwidth
- 7.2Tb/s aggregate switch throughput with 90ns port-to-port latency
- Integrated Co-Design SHARP™ technology for collective communication offload
- Adaptive routing and congestion control for optimized fabric performance
- Redundant, hot-swappable power supplies and cooling fans
- Low power consumption: 122W (ATIS) with passive cables
3. Core Technology
The SB7890 leverages Mellanox's Switch-IB® 2 technology, utilizing 64/66 encoding and 25Gb/s per lane signaling. It supports advanced features like adaptive routing, congestion control, and VL mapping, enabling modern topologies such as SlimFly and Dragonfly+. The integrated SHARP technology allows the network switch to handle collective operations in hardware, significantly reducing CPU overhead and network traffic.
4. Working Principle
The SB7890 operates as a smart switch by processing data in transit. During collective operations (e.g., MPI reductions), the switch hardware aggregates data packets as they pass through, eliminating the need for multiple transmissions between endpoints. This in-network processing reduces latency and frees up server resources. The adaptive routing engine dynamically selects paths to avoid congestion, ensuring efficient bandwidth utilization across the fabric.
5. Applications & Usage
This InfiniBand switch is ideal for:
- High-Performance Computing (HPC) clusters
- Enterprise Data Centers (EDC) with high bandwidth demands
- Artificial Intelligence and Machine Learning workloads
- Large-scale storage and data analytics environments
- Top-of-rack leaf connectivity in fat-tree or hypercube topologies
6. Specifications & Selection Guide
| Parameter | Specification |
|---|---|
| Ports | 36 × EDR 100Gb/s (QSPF28) |
| Throughput | 7.2 Tb/s |
| Latency | 90 ns |
| Power Consumption | 122 W (typical) |
| Form Factor | 1U rack-mountable |
| Cooling Options | Front-to-rear or rear-to-front |
| Compatibility | FDR, EDR, and earlier InfiniBand generations |
7. Advantages & Selling Points
- World’s first smart switch with in-network computing capabilities
- Significantly reduces application runtime via collective offload
- Superior energy efficiency with industry-low power consumption
- Designed for modern low-diameter topologies (e.g., SlimFly)
- Backward compatible with FDR InfiniBand technology
8. Service & Support
We offer comprehensive support including 24/7 technical consultation, worldwide shipping, and a 1-year warranty. Our professional team ensures accurate delivery and ongoing technical assistance for integration and optimization.
9. Frequently Asked Questions
Q: What cabling options are supported?
A: The switch supports passive copper cables, active optical cables, and optical modules via QSPF28 connectors.
Q: Is the SB7890 compatible with existing FDR infrastructure?
A: Yes, this network switch is fully backward compatible with FDR InfiniBand technology.
Q: How does SHARP technology improve performance?
A: It offloads collective operations to switch hardware, reducing network traffic and CPU utilization.
10. Precautions
- Ensure compatible airflow direction (P2C or C2P) when installing in a rack.
- Operating temperature must be maintained between 0°C and 45°C.
- Use only certified Mellanox power supplies and fan modules.
- Verify cable specifications to ensure EDR performance compliance.
