36p Externally Managed EDR 100Gb/S Smart Mellanox Infiniband Switch MSB7890-ES2F Non-Blocking
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MSB7890-ES2F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | XT,T/T,Western Union,MoneyGram |
|
Detail Information |
|||
| Ports:: | 36 | Transmission Rate: | 100Gb/s Per Port |
|---|---|---|---|
| Function: | LACP, Stackable, VLAN Support | Communication Mode: | Full-Duplex & Half-Duplex |
| Technology: | InfiniBand | Performance: | 100Gb/s Per Port |
| System Weight: | 11.978 Kg | System Dimensions: | 43.6*433.2*590.6mm |
| Highlight: | 100Gb/s mellanox infiniband switch,36p mellanox infiniband switch,100Gb/s mellanox infiniband edr |
||
Product Description

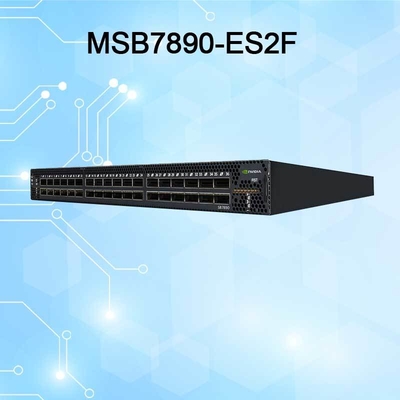

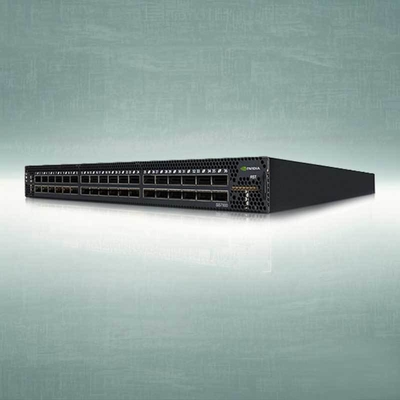

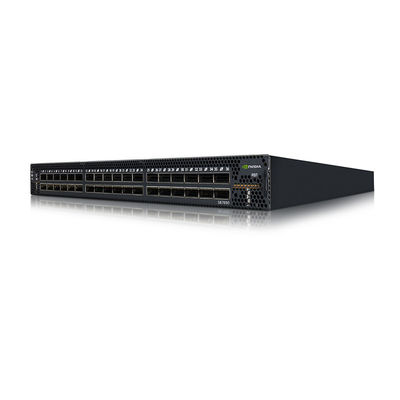

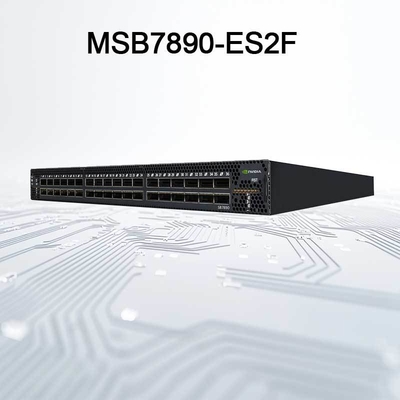

SB7890: 36-Port EDR 100Gb/s InfiniBand Smart Switch System
1. Product Overview
The Mellanox SB7890 is a high-performance, 36-port EDR InfiniBand switch system designed for modern data centers and high-performance computing (HPC) environments. It delivers non-blocking bandwidth of up to 7.2Tb/s with ultra-low latency of 90ns, making it an ideal network switch solution for demanding applications.
2. Key Features
- 36 non-blocking EDR 100Gb/s InfiniBand ports
- 7.2Tb/s aggregate throughput with 90ns latency
- Support for adaptive routing and congestion control
- In-network computing with SHARP™ technology
- Hot-swappable, redundant power supplies and fans
- Energy-efficient design with typical power consumption of 122W
3. Core Technology
The SB7890 leverages Mellanox's Switch-IB® 2 technology, supporting InfiniBand Trade Association (IBTA) 1.2/1.3 standards. It incorporates Co-Design SHARP (Scalable Hierarchical Aggregation and Reduction Protocol) to offload collective communication operations, significantly accelerating MPI and SHMEM protocols.
4. How It Works
The switch processes data in transit using embedded hardware, reducing the need for multiple data transmissions between endpoints. This approach minimizes network traffic and frees up CPU resources for computation, enhancing overall application performance.
5. Applications
Ideal for HPC clusters, enterprise data centers, AI/ML workloads, and large-scale storage environments. Supports modern topologies including SlimFly, Dragonfly+, and Torus.
6. Specifications
7. Advantages
- World’s first smart network switch with in-network computing
- Lowest latency and highest throughput in its class
- Backward compatible with FDR InfiniBand
- Energy Star certified and RoHS compliant
8. Service & Support
We offer 24/7 technical support, 1-year warranty, and global shipping. Our team provides expert consultation and integration services to ensure optimal deployment.
9. FAQ
Q: What cabling options are supported?
A: The SB7890 supports passive copper, active optical cables, and optical modules.
Q: Is it compatible with FDR InfiniBand?
A: Yes, it is fully backward compatible with FDR technology.
Q: What cooling options are available?
A: Both front-to-rear and rear-to-front airflow configurations are supported.
10. Precautions
- Operating temperature: 0°C to 45°C
- Humidity: 10% to 85% non-condensing
- Ensure proper airflow and rack clearance for cooling
- Use compatible Mellanox cables and transceivers for optimal performance
