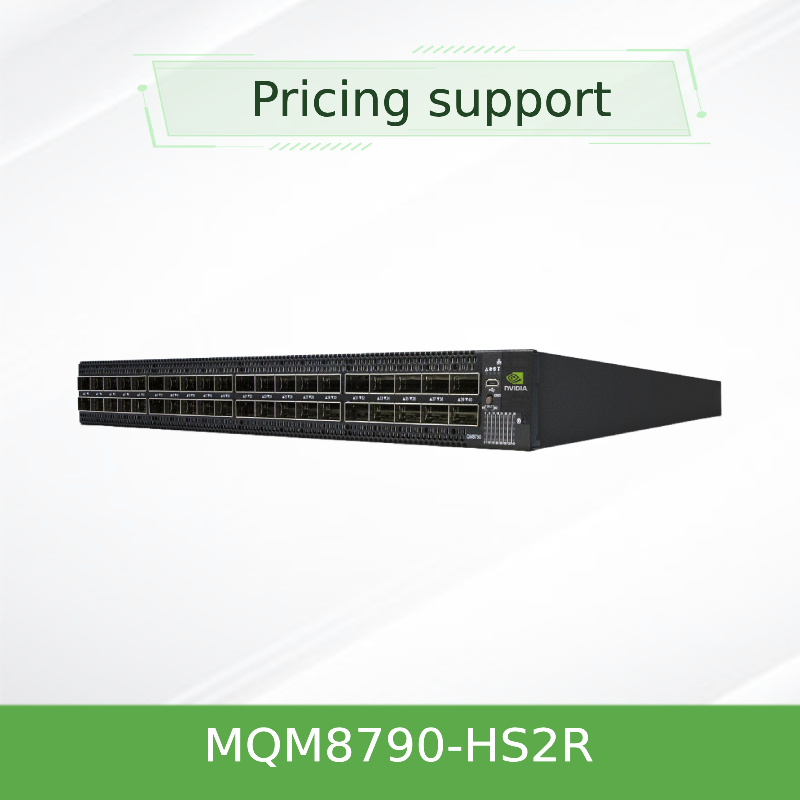

Enhanced Network Performance Mellanox Mqm8790-HS2r Quantum Hdr Infiniband Switch 40 Qsfp56 Ports Nvidia
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MQM8790-HS2R(920-9B110-00RH-0D0) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|
|
Detail Information |
|||
| Model NO.: | MQM8790-HS2R | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≧48 | Function: | Lacp, Stackable, Vlan Support |
| Technology: | Infiniband | Transport Package: | Packing |
| Specification: | 43.6*433.2*590.6 Mm | Trademark: | Mellanox |
| Origin: | India / Israel / China | ||
Product Description
Product Description

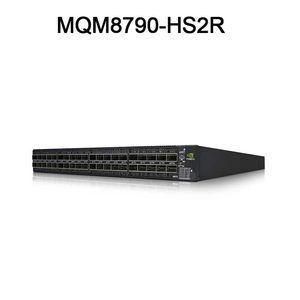

MQM8790-HS2R
MQM8790-HS2R
Mellanox QM8700/QM8790 switch systems provide the highest performing fabric solution in a 1U form factor by delivering up to 16Tb/s of non-blocking bandwidth with sub 130ns port-to-port latency. These switches deliver 7.2 billion packets-per-second (Bpps), or 390 million pps per port. These systems are the industry's most cost-effective building blocks for embedded systems and storage with a need for low port density systems. Whether looking at price-to-performance or energy-to-performance, these systems offer superior performance, power and space, reducing capital and operating expenses and providing the best return-on-investment.

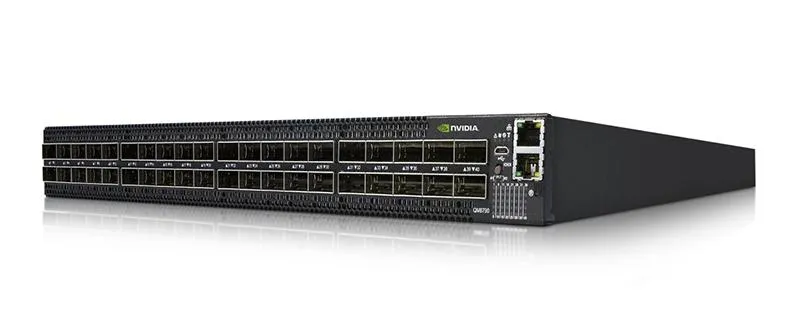

MQM8790-HS2R
Built with the latest Mellanox Quantum™ HDR 200Gb/s InfiniBand switch device, these standalone systems are an ideal choice for top-of-rack leaf connectivity or for building small to extremely large sized clusters. These systems enable efficient computing with features such as static routing, adaptive routing, and advanced congestion management. These features ensure the maximum effective fabric bandwidth by eliminating congestion. Mellanox Quantum™ is the world's smartest network switch, designed to enable in-network computing through Mellanox Scalable Hierarchical Aggregation Protocol ™ technology. architecture enables the usage of all active data center devices to accelerate the communications frameworks, resulting in order of magnitude applications performance improvements.

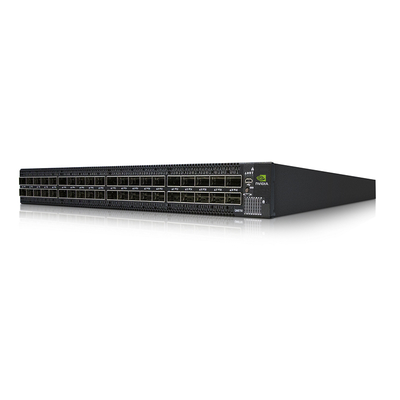

MQM8790-HS2R

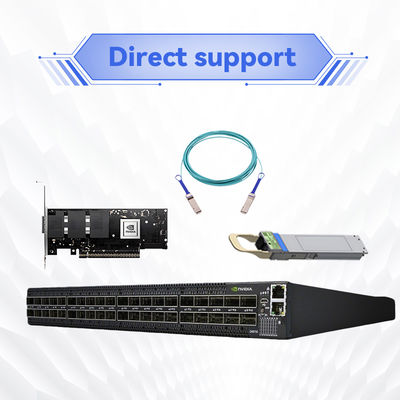

Together with the Mellanox ConnectX®-6 adapter card, a Mellanox Quantum switch supports the HDR100 protocol. By utilizing two pairs of two lanes per port, a Mellanox Quantum switch can support up to 80 ports of 100G to create the highest density Top-of-Rack (ToR) switch available in the market. This is a perfect solution for double density racks with more than 40 servers per rack, as it also relieves small-medium deployments from the need to scale to 3-level fat-tree, and provides savings on power, latency and space.
|
ORDERABLE PARTNUMBER (OPN) |
DESCRIPTION |
|
MQM8700-HS2F |
NVIDIA Quantum 200Gb/s InfiniBand switch, 40 QSFP56 ports, two |
|
MQM8700-HS2R |
NVIDIA Quantum 200Gb/s InfiniBand switch, 40 QSFP56 ports, two |
|
MQM8790-HS2F |
NVIDIA Quantum 200Gb/s InfiniBand switch, 40 QSFP56 ports, two |
|
MQM8790-HS2R |
NVIDIA Quantum 200Gb/s InfiniBand switch, 40 QSFP56 ports, two |
Specification
|
Feature |
|
Value |
|
Mechanical |
Size: |
1.7” (H) x 17” (W) x23.2” (D), |
|
Mounting: |
19” rack mount |
|
|
Weight: |
1 PSU: 11.4 kg |
|
|
Speed: |
40, 56, 100, 200 Gb/s per port |
|
|
Connector cage: |
40 QSFP56 |
|
|
Environmental |
Temperature: |
Operational: 0° to 40°C |
|
Humidity: |
Operational: 10%-85% non-condensing |
|
|
Altitude: |
Operational: 3050m |
|
|
Noise level: |
71.9 dB(A) |
|
|
Regulatory |
Safety: |
CB, cTUVus, CE, CU |
|
EMC: |
EMC: CE, FCC, VCCI, ICES, RCM |
|
|
RoHS: |
RoHS compliant |
|
|
Power |
Input Voltage: |
100-127VAC 50/60Hz 4.5A; 200-240 50/60Hz 4.4A |
|
Global Power Consumption: |
Full power specifications are provided in theQM8700 and QM9700 Full Technical Specificationsdocument, which is available in theNVOnline portalfollowing login (search for 1080832, the reference ID). |
|
|
Main Devices |
CPU (in QM8700 only): |
x86 ComEx Broadwell D-1508 |
|
Switch: |
NVIDIA Quantum™ IC |
|
|
Throughput |
Switching: |
16Tb/s |
Product Description
