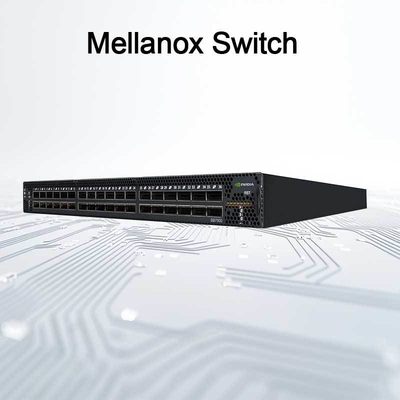

• Mellanox MSB7800-ES2F InfiniBand EDR 100Gb/S Switch System 36 QSFP28 Ports 1U

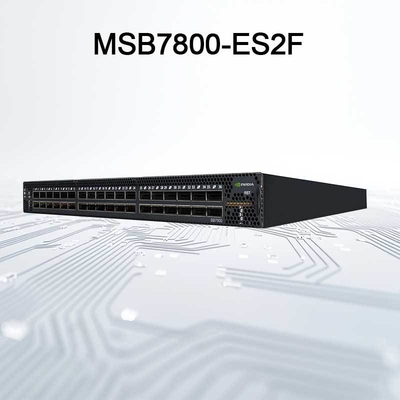

  • Mellanox MSB7800-ES2F InfiniBand EDR 100Gb/S Switch System 36 QSFP28 Ports 1U
  • Mellanox MSB7800-ES2F InfiniBand EDR 100Gb/S Switch System 36 QSFP28 Ports 1U

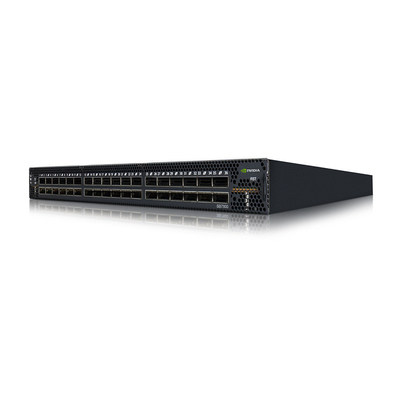

  • Mellanox MSB7800-ES2F InfiniBand EDR 100Gb/S Switch System 36 QSFP28 Ports 1U
Mellanox MSB7800-ES2F InfiniBand EDR 100Gb/S Switch System 36 QSFP28 Ports 1U

Mellanox MSB7800-ES2F InfiniBand EDR 100Gb/S Switch System 36 QSFP28 Ports 1U

Product Details:

Brand Name: Mellanox
Model Number: MSB7800-ES2F
Document: MSB7800-ES2F.pdf

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Packaging Details: carton
Get Best Price Contact Now

Detail Information

Application: Server Condition: New And Original
Switching Capacity: 2.6 Tbps Uplink Connectivity: 100 Gbps
Name: Mellanox MSB7800-ES2F InfiniBand EDR 100Gb/s Switch System 36 QSFP28 Ports 1U Mellanox Network Switch Keyword: Mellanox Ethernet Switches
Highlight:

EDR Mellanox 100g Switch

,

QSFP28 Mellanox 100gb Switch

,

1U Qsfp28 Switch

Product Description

NVIDIA Switch-IB 2 SB7800: High-Performance InfiniBand Switching Solution

Premium Performance InfiniBand Switch

The NVIDIA SB7800 series represents the pinnacle of InfiniBand switching technology, delivering exceptional bandwidth and ultra-low latency for demanding HPC and AI workloads. This advanced network switch provides 36 ports of 100Gb/s connectivity with a total throughput of 7.2Tb/s, making it an ideal solution for data-intensive applications.

  • 36-port 100Gb/s non-blocking architecture
  • 7.2Tb/s aggregate bidirectional throughput
  • NVIDIA SHARP™ in-network computing technology
  • Energy-efficient design with redundant power
  • Comprehensive management capabilities

Technical Specifications

SpecificationValue
Port Configuration36 x QSFP28 100Gb/s ports
Switch ArchitectureNon-blocking crossbar
Total Throughput7.2Tb/s bidirectional
LatencyUltra-low port-to-port
Power SupplyDual redundant (1+1), hot-swappable
Cooling SystemHot-swappable fans with front/rear options
ManagementMLNX-OS, UFM compatible
Chassis Form Factor1U standard rack mount
Dimensions (HxWxD)1.7" x 16.85" x 27" (43.6mm x 433.2mm x 590.6mm)
Weight11.98 kg (26.4 lbs)

Advanced Technology

The SB7800 incorporates NVIDIA's innovative SHARP (Scalable Hierarchical Aggregation and Reduction Protocol) technology, which dramatically accelerates MPI operations by performing in-network computation. This approach reduces data movement across the network by up to 80%, significantly improving application performance while freeing CPU resources for computation rather than communication tasks.

This network switch supports the latest InfiniBand standards and is compatible with Ethernet via RoCE (RDMA over Converged Ethernet), providing flexibility in heterogeneous data center environments.

Deployment Applications

The NVIDIA SB7800 InfiniBand switch is specifically designed for high-performance computing environments including:

  • Artificial Intelligence and Machine Learning clusters
  • High-performance computing and scientific research
  • Large-scale data analytics and cloud infrastructure
  • Financial modeling and simulation environments
  • Media and entertainment rendering farms

This network card solution serves as an optimal top-of-rack switch for small to extremely large cluster deployments.

Performance Advantages

The SB7800 series offers significant advantages over conventional switching solutions:

  • Enhanced Efficiency: SHARP technology reduces network traffic and MPI operation time
  • Power Optimization: Energy-efficient design with ATIS compliance (as low as 122W)
  • High Availability: Redundant, hot-swappable power and cooling components
  • Simplified Management: MLNX-OS and UFM platform integration
  • Future-Proof Design: Support for evolving computational workloads
  • Flexible Deployment: Multiple airflow direction options (P2C or C2P)

This network switch delivers superior price-performance ratio compared to alternative solutions, reducing both capital and operational expenditures.

Frequently Asked Questions

Q: What makes this InfiniBand switch different from standard Ethernet switches?

A: The SB7800 offers significantly higher bandwidth (100Gb/s per port), lower latency, and specialized features like NVIDIA SHARP for in-network computation acceleration, which are essential for HPC and AI workloads.

Q: Can this switch be used in mixed Ethernet/InfiniBand environments?

A: Yes, through RDMA over Converged Ethernet (RoCE) support, this network switch can bridge InfiniBand and Ethernet environments effectively.

Q: What management options are available for the SB7800?

A: The switch can be managed through MLNX-OS or integrated with NVIDIA's UFM platform for comprehensive data center management, including real-time telemetry and analytics.

Q: What is the power consumption of this network card switch?

A: The switch is designed for energy efficiency with typical power consumption of 122W for a fully populated system, and even lower when not all ports are utilized.

Installation & Compatibility Notes

  • Ensure proper airflow clearance in rack installation
  • Use certified QSFP28 transceivers and cables for optimal performance
  • Operating temperature range: 0°C to 45°C (32°F to 113°F)
  • Verify compatibility with existing InfiniBand host channel adapters
  • Regular firmware updates are recommended for security and performance enhancements
  • Complies with CE, FCC, VCCI, ICES, RCM emissions standards
  • Certified to RoHS, CS, cTUVus, CE, CU safety standards
