Mellanox Nvidia Mca4j80-N 800GB/S Twin-Port Osfp to 2X400GB/S Osfp Infiniband Acc Mca4j80-N005 (980-9I602-00N005)
Product Details:
| Brand Name: | Mellanox |
| Model Number: | Mca4j80-N005 (980-9I602-00N005) |
| Document: | MCA4J80-Nxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox DAC Cable | Cable Length: | 5 Meters |
| Name: | Mellanox DAC Cable MCA4J80-N005 Active Copper Cable IB Twin Port NDR 800Gb/s OSFP 5 Meters | Keyword: | Mellanox DAC Cable |
| Highlight: | MCA4J80-N005 Mellanox Infiniband Cable,16.40 Ft Mellanox Infiniband Cable |
||
Product Description

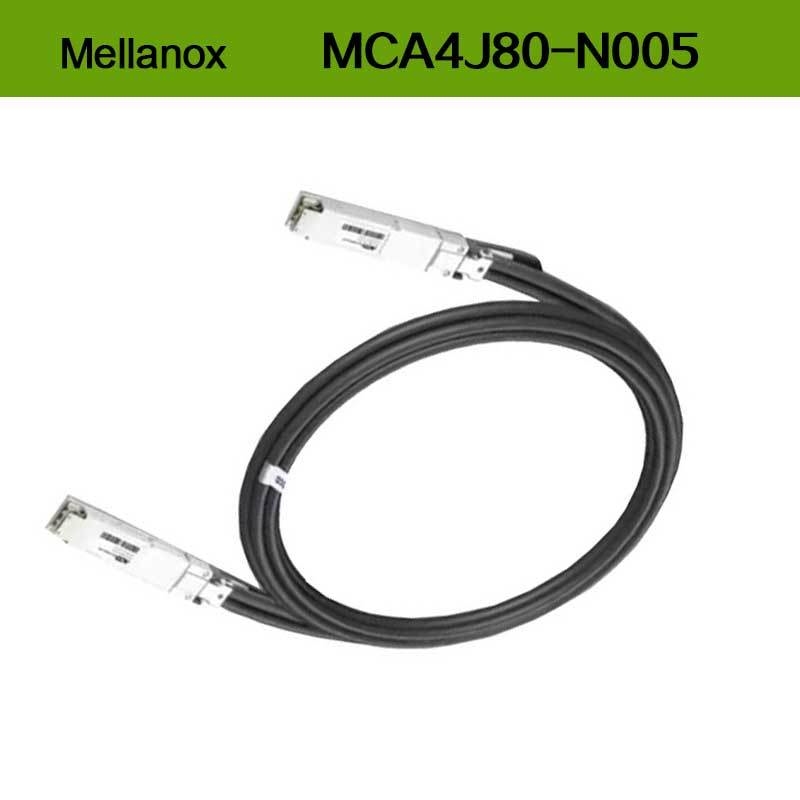

NVIDIA MCA4J80-N005 800Gb/s OSFP Active Copper Cable
Experience next-generation data center connectivity with the NVIDIA MCA4J80 Active Copper Cable, delivering 800Gb/s bandwidth through twin OSFP ports. This high-performance ACC solution provides the optimal balance of ultra-low latency, minimal power consumption, and cost-effectiveness for InfiniBand NDR and Ethernet infrastructures.
MCA4J80-N005 Key Specifications
- Total bandwidth: 800Gb/s (2×400Gb/s bidirectional channels)
- Maximum length: 5 meters with active signal conditioning
- Power consumption: Only 1.5W per connector
- Operating temperature: 0°C to +70°C
- Compliant with OSFP MSA Rev. 1.12 and SFF-8636 management interface
Advanced Technology
The MCA4J80 network card utilizes 100G-PAM4 modulation across eight channels per port, incorporating sophisticated equalization technology that enables reliable data transmission over extended copper distances. Each termination features an integrated EEPROM that automatically identifies cable characteristics and optimizes performance based on host system requirements.
MCA4J80-N005 Performance Characteristics
| Parameter | Specification |
|---|---|
| Data Rate | 800Gb/s (2×400Gb/s) |
| Maximum Distance | 5 meters |
| Power Consumption | 1.5W per end |
| Connector Type | OSFP (Octal Small Formfactor Pluggable) |
| Operating Voltage | 3.3V ±5% |
| Protocol Support | InfiniBand NDR, Ethernet |
MCA4J80-N005 Model Variants
| Product Code | Length | Cable Type | Configuration |
|---|---|---|---|
| MCA4J80-N003 | 3m | 30AWG | Standard |
| MCA4J80-N004 | 4m | 30AWG | Standard |
| MCA4J80-N005 | 5m | 26AWG | Standard |
| MCA4J80-N003-FLT | 3m | 30AWG | Flat Top |
| MCA4J80-N003-FTF | 3m | 30AWG | Flat to Finned |
Deployment Scenarios
- High-performance computing clusters requiring maximum bandwidth
- AI and machine learning infrastructure with NVIDIA DGX systems
- Data center spine-leaf architectures with Quantum-2 switches
- High-frequency trading environments where latency is critical
- Cloud infrastructure requiring high-density connectivity
Competitive Advantages
- Superior cost-per-bit compared to optical alternatives
- 60% lower power consumption than comparable active optical cables
- Automatic protocol detection simplifies deployment
- Robust construction with LSZH jacket for enhanced safety
- Backward compatibility with existing management systems
Support & Services
All NIC card products include comprehensive technical support, 24/7 customer service, and global logistics coverage. Our certification compliance includes CE, FCC, RoHS, and ISO standards, ensuring worldwide deployment capability.
Frequently Asked Questions
Q: What makes this network card different from passive copper cables?
A: The integrated active equalization technology enables longer reach (up to 5m) while maintaining signal integrity and low latency.
Q: Can this cable be used in mixed vendor environments?
A: Yes, the mq9700 compatible design supports multi-vendor interoperability while maintaining optimal performance.
Q: What is the expected lifespan of this product?
A: The network card is designed for continuous operation with an MTBF exceeding 5 million hours.
Installation Guidelines
- Maintain minimum bend radius of 5× cable diameter during installation
- Use proper ESD protection when handling connectors
- Ensure operating environment remains within specified temperature range
- Verify compatibility with host system OSFP cages before deployment
- Follow cable management best practices to ensure optimal airflow
Company Profile
With over a decade of industry expertise, we operate state-of-the-art manufacturing facilities supported by extensive technical resources. As an authorized distributor for leading networking brands including Mellanox, Ruckus, Aruba, and Extreme, we maintain comprehensive inventory of network switches, network cards, wireless solutions, and connectivity products. Our $10M+ inventory ensures reliable supply for large-scale deployments, backed by 24/7 technical support and global logistics capabilities.
This network card represents our commitment to delivering high-performance networking solutions that meet the demanding requirements of modern data center environments.
