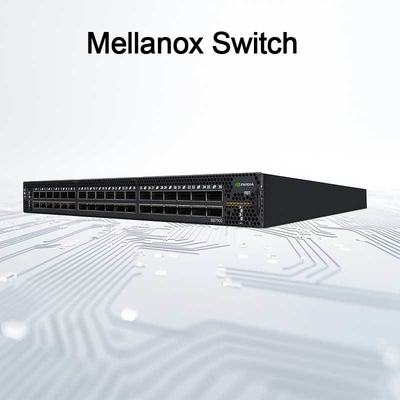

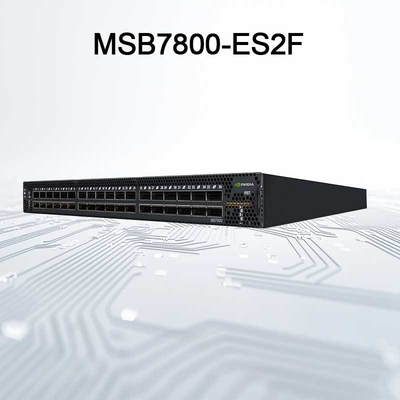

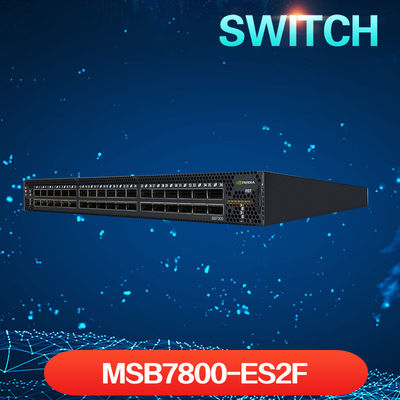

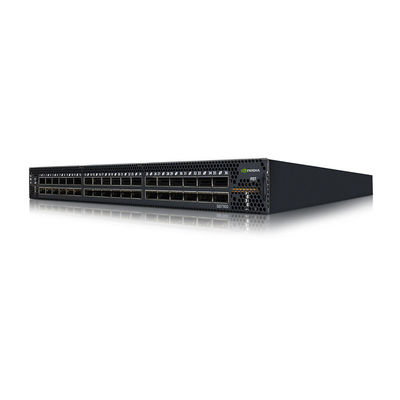

NVIDIA Switch-IB 2 SB7800 Series 100Gb/s InfiniBand Switch

1. Product Overview

The NVIDIA Switch-IB 2 SB7800 Series is a high-performance, 100Gb/s InfiniBand switch designed for modern data centers requiring extreme bandwidth, low latency, and scalable interconnect solutions. Ideal for HPC, AI, and large-scale cloud environments, this network switch delivers 36 non-blocking ports in a compact 1U form factor, offering an aggregate throughput of 7.2 Tb/s. It supports advanced in-network computing and is available in both internally and externally managed configurations.

2. Key Characteristics

• 36 ports of 100Gb/s InfiniBand per port
• 7.2 Tb/s aggregate bidirectional throughput
• Ultra-low port latency for enhanced application performance
• Redundant, hot-swappable power supplies and fans
• Energy-efficient design with ATIS weighted power as low as 122W
• Support for NVIDIA SHARP™ in-network acceleration technology

3. Core Technology

The network card and switch leverage NVIDIA’s Scalable Hierarchical Aggregation and Reduction Protocol (SHARP), which offloads collective operations from CPUs to the switch, significantly reducing MPI operation times and network traffic. The switch runs on MLNX-OS for comprehensive management and integrates seamlessly with NVIDIA UFM® platforms for AI-driven network analytics and telemetry.

4. Working Principle

The SB7800 operates as a top-of-rack or spine network switch, utilizing a non-blocking architecture to ensure full bandwidth across all ports. It processes data through its integrated Intel Celeron dual-core CPU and offloads collective communication tasks via SHARP, reducing CPU overhead and minimizing latency for high-performance workloads.

5. Applications

• High-Performance Computing (HPC) clusters
• Artificial Intelligence and Machine Learning training networks
• Large-scale data analytics and cloud infrastructure
• Research and enterprise data centers

6. Specifications

7. Advantages

• Superior bandwidth and low latency for demanding applications
• SHARP technology reduces MPI overhead and improves efficiency
• High availability with redundant power and cooling
• Energy Star certified with optimized power consumption
• Flexible deployment in various network topologies

8. Service & Support

We offer comprehensive support including warranty, 24/7 technical consultation, and worldwide shipping. Our professional team ensures timely delivery and integration assistance for all products, including the mq9700 series and other network card and switch solutions.

9. Frequently Asked Questions

Q: What is the typical use case for the SB7800 switch?
A: It is ideal for HPC and AI clusters requiring high bandwidth and low latency.

Q: Does it support standard management protocols?
A: Yes, it supports MLNX-OS and is compatible with NVIDIA UFM platforms.

Q: What is the power consumption under full load?
A: Approximately 122W (ATIS weighted) with all ports active.

10. Precautions

• Ensure proper airflow (P2C or C2P) based on model variant.
• Operate within specified temperature (0°C–45°C) and humidity ranges.
• Use compatible QSFP28 transceivers and cables.
• Verify EMC compliance (CE, FCC, RCM) for your region.

11. Company Introduction

With over 10 years of industry experience, we operate a large factory supported by a strong technical team. We represent leading brands including Mellanox (now NVIDIA), Ruckus, Aruba, and Extreme. Our product range includes original new network switch, network card, wireless access points, controllers, and cables. We maintain a $10 million inventory to support bulk orders and provide 24/7 customer service and technical support. Our professional sales and technical teams have earned a high reputation in the global market.
