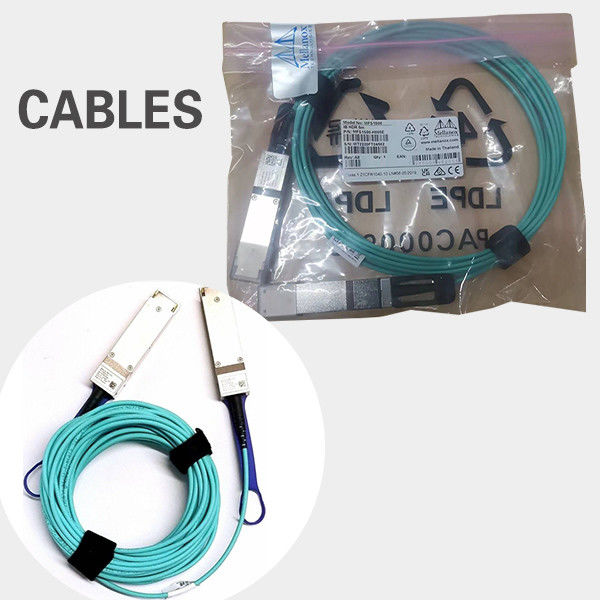

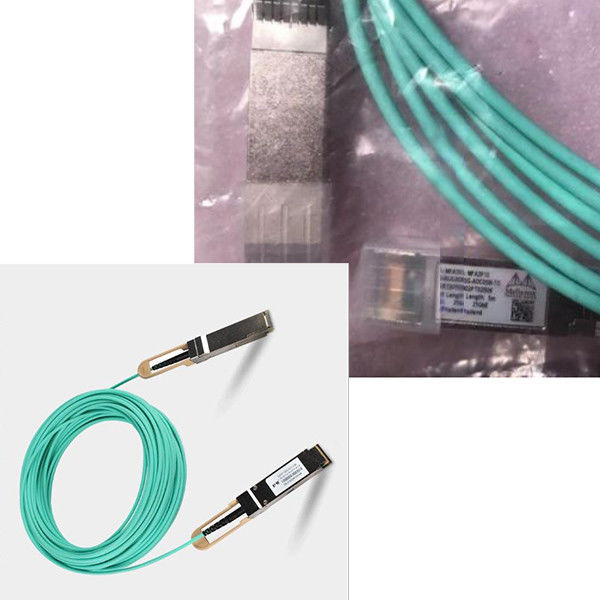

20 Meters mellanox cable Active Fiber Cable 200Gb/S VPI IB HDR And 200GbE QSFP56 MFS1S00-H020V
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H020V |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 20 Meters |
| Product: | MFS1S00-H020V | Name: | Active Fiber Cable 200Gb/s VPI IB HDR And 200GbE QSFP56 20 Meters MFS1S00-H020V |
| Keyword: | Mellanox Cable | ||
| Highlight: | 20 Meters Active Fiber Cable,Active Fiber Cable MFS1S00-H020V |
||
Product Description
MFS1S00-H020V 200Gbps High-Performance Active Optical Cable Solution
Key Benefits
- 200Gb/s bandwidth with PAM4 modulation technology
- 20-meter optimal length for data center deployments
- Hot-pluggable QSFP56 form factor for easy installation
- Advanced digital diagnostics monitoring capabilities
- Dual protocol support (InfiniBand HDR & 200Gb Ethernet)
MFS1S00-H020V Technical Overview
The NVIDIA MFS1S00-H020V Active Optical Cable represents a significant advancement in high-speed data center connectivity solutions. This innovative optical fiber cable delivers exceptional 200Gb/s performance through four 50Gb/s PAM4 modulated channels, providing superior bandwidth density compared to traditional interconnects. The integrated design eliminates the need for separate transceivers, reducing points of failure and simplifying infrastructure management.
MFS1S00-H020V Technical Specifications
| Specification | Value |
|---|---|
| Product Code | MFS1S00-H020V |
| Total Bandwidth | 200 Gb/s |
| Data Encoding | 4×50Gb/s PAM4 |
| Interface Standard | QSFP56 (SFF-8665) |
| Cable Technology | Active Optical Cable |
| Deployment Length | 20 meters |
| Power Requirement | 5.0W (typical) |
| Fiber Medium | Multi-Mode Fiber |
| Maximum Reach | 100 meters |
| Temperature Range | 0°C to 70°C |
Performance Advantages
This Active Optical Cable delivers substantial benefits over alternative connectivity solutions. Unlike passive fiber cable options that require separate transceivers, this integrated approach provides better signal integrity, lower power consumption, and simplified deployment. The embedded electronics enable advanced signal conditioning, including programmable equalization and output pre-emphasis, ensuring optimal performance across the entire cable length. The comprehensive digital diagnostics interface allows real-time monitoring of critical parameters including temperature, voltage, optical power levels, and laser bias currents.
MFS1S00-H020V Implementation Environments
- High-Performance Computing: InfiniBand HDR clusters requiring 200Gb/s connectivity
- AI/ML Infrastructure: Neural network training and inference systems
- Cloud Data Centers: High-density server interconnects and leaf-spine architectures
- Financial Services: Low-latency trading systems and real-time analytics
- Research Institutions: Scientific computing and big data processing environments
- Storage Networks: High-speed SAN and NAS interconnects
Technical Support & Services
Our organization provides comprehensive technical support services including pre-sales consultation, integration assistance, and post-deployment troubleshooting. With over ten years of networking expertise and partnerships with leading technology providers, we offer unparalleled service capabilities. Our technical team maintains deep knowledge of Active Optical Cable technologies and can provide guidance on optimal deployment strategies, compatibility verification, and performance optimization.
Frequently Asked Questions
Q: What distinguishes this Active Optical Cable from traditional passive solutions?
A: This AOC integrates transceiver functionality directly into the cable assembly, providing better signal integrity, longer reach, and comprehensive diagnostics compared to passive fiber cable alternatives that require separate transceivers.
Q: Can this cable operate in both InfiniBand and Ethernet environments?
A: Yes, this versatile Active Optical Cable supports both InfiniBand HDR (200Gb/s) and 200Gb Ethernet protocols, providing flexibility for diverse data center environments.
Q: What management capabilities are available through the digital interface?
A: The SFF-8636 compliant interface provides monitoring of temperature, supply voltage, transmitted/received optical power, laser bias current, and supports customizable alarm thresholds for proactive maintenance.
Q: Are there any special handling requirements for this optical fiber cable?
A: Standard fiber optic handling procedures apply, including maintaining minimum bend radius (30mm), proper connector cleaning, and ESD precautions during installation.
Installation Guidelines
- Maintain minimum bend radius of 30mm during installation and operation
- Ensure operating environment remains within 0°C to 70°C temperature range
- Follow proper ESD protection procedures during handling and installation
- Verify host system compatibility and firmware requirements before deployment
- Use appropriate fiber optic cleaning tools before making connections
- Follow local regulations for disposal (RoHS compliant product)
