10 Meters Mellanox AOC MFS1S00-H003V MFS1S00-H005V MFS1S00-H010V(980-9I45J-00H010)
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H010V(980-9I45J-00H010) |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 10 Meters |
| Model: | MFS1S00-H010V(980-9I45J-00H010) | Name: | Mellanox Aoc Cable Mellanox Active Fiber Cable MFS1S00-H003V MFS1S00-H005V MFS1S00-H010V |
| Keyword: | Mellanox Cable | ||
| Highlight: | 10 Meters Mellanox AOC,MFS1S00-H010V Mellanox AOC,MFS1S00-H003V Aoc Active Optical Cable |
||
Product Description

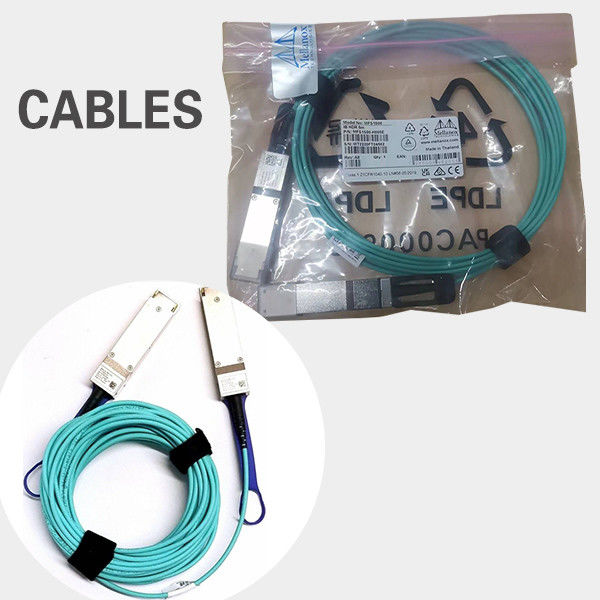

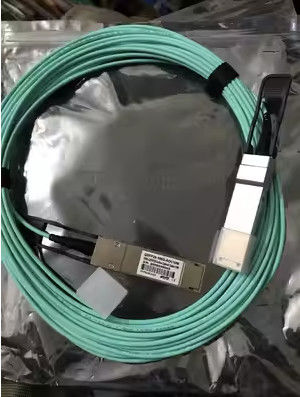

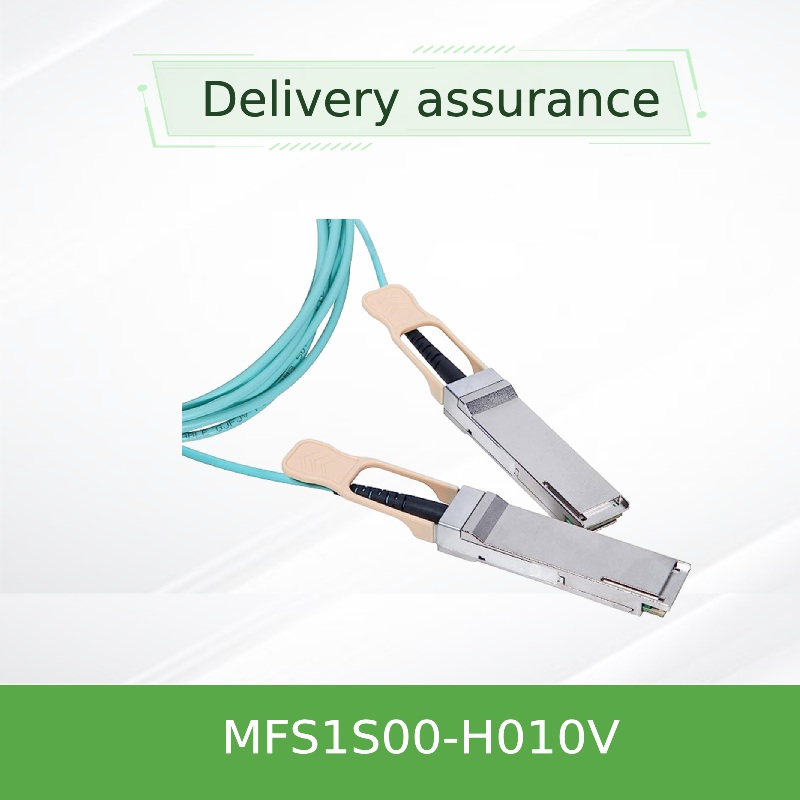

MFS1S00-H010V 200Gb/s QSFP56 Active Optical Cable (AOC)
1. Product Overview
The MFS1S00-H010V is a high-performance 200Gb/s QSFP56 Active Optical Cable (AOC) designed for next-generation data center and high-performance computing interconnects. It supports both InfiniBand HDR and 200 Gigabit Ethernet standards, delivering reliable, low-latency, and power-efficient connectivity. This Optical Fiber Cable is ideal for high-density rack deployments and long-reach applications where copper cabling falls short.
2. Key Characteristics
- Supports 200Gb/s InfiniBand HDR and 200GbE
- Hot-pluggable QSFP56 form factor
- Up to 100m reach over multi-mode fiber
- Low power consumption: 5.0W typical per end
- RoHS compliant and SFF-8636 management interface
- Digital Diagnostic Monitoring (DDM) per lane
3. Technology & Standards
This passive fiber cable alternative leverages VCSEL-based optical technology and complies with industry standards including SFF-8665, SFF-8636, and InfiniBand HDR. It uses PAM4 modulation for high-speed data transmission and supports advanced features like retiming, programmable equalization, and real-time diagnostics.
4. Working Principle
The AOC converts electrical signals into optical signals using integrated VCSEL transceivers at each end. Data is transmitted over four multi-mode fibers, each operating at 50Gb/s. The cable includes built-in signal retiming and conditioning to ensure signal integrity over extended distances, making it superior to passive copper solutions.
5. Applications
- 200G InfiniBand HDR clusters
- 200GbE spine-leaf networks
- High-performance computing (HPC) environments
- Cloud data center interconnects
- AI and machine learning infrastructure
6. Specifications & Selection Guide
| Parameter | Value |
|---|---|
| Data Rate | 200Gb/s |
| Interface | QSFP56 |
| Cable Type | Active Optical Cable (AOC) |
| Length | 10m |
| Power Consumption | 5.0W (typical) |
| Operating Temperature | 0°C to 70°C |
7. Advantages
- Lower latency and higher bandwidth compared to DAC cables
- Lightweight and flexible for easier cable management
- Immunity to electromagnetic interference (EMI)
- Better reach than passive copper solutions
- Integrated diagnostics for proactive monitoring
8. Service & Support
We offer 24/7 technical support, worldwide shipping, and a standard warranty. Custom length options and bulk order discounts are available. Our team provides integration guidance and compatibility verification upon request.
9. Frequently Asked Questions
Q: Is this cable compatible with 100GbE switches?
A: Yes, it is backward compatible with 100GbE QSFP28 ports when used in breakout mode.
Q: What is the maximum operating temperature?
A: The cable operates reliably in temperatures from 0°C to 70°C.
Q: Does it support digital diagnostics?
A: Yes, it provides full DDM per lane including optical power, temperature, and voltage monitoring.
10. Precautions
- Avoid bending beyond 30mm radius
- Use ESD protection during handling
- Ensure compatible QSFP56 ports
- Do not remove protective caps until installation
- Verify firmware compatibility with host system
