MQM8700-HS2F Mellanox Network Switch 40 Port 200G InfiniBand For Data Center
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MQM8700-HS2F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T,XTransfer,Western Union,MoneyGram |
|
Detail Information |
|||
| Products Status: | Stock | Application: | Server |
|---|---|---|---|
| Condition: | New And Original | Warranty: | 1 Year |
| Switching Capacity: | 8.4Tbps | Uplink Connectivity: | 200 Gbps |
| Model: | MQM8700-HS2F | Name: | MQM8700-HS2F Mellanox Network Switch 40 Port 200G InfiniBand For Data Center |
| Keyword: | Mellanox Network Switch | ||
| Highlight: | MQM8700-HS2F mellanox network switch,40 Port 200G mellanox network switch,MQM8700-HS2F mellanox infiniband switch |
||
Product Description

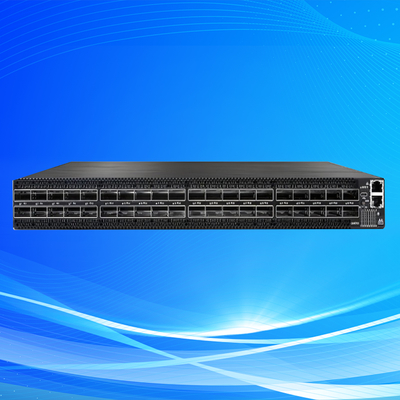

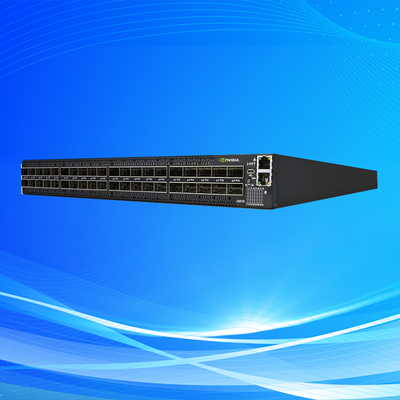

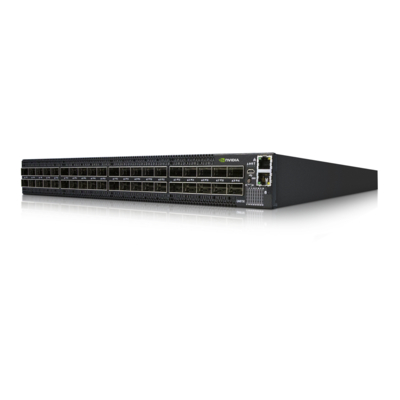

Mellanox Quantum QM8700 40-Port HDR 200Gb/s InfiniBand Switch
1. Product Overview
The Mellanox Quantum QM8700 is a high-performance, managed HDR 200Gb/s InfiniBand switch designed for modern data centers and high-performance computing (HPC) environments. With 40 non-blocking ports and a total throughput of 16 Tb/s, it delivers industry-leading bandwidth and ultra-low latency under 90 nanoseconds. Ideal for AI, machine learning, and large-scale data analytics, this switch supports advanced features including in-network computing and adaptive routing.
2. Key Features
- 40 non-blocking HDR 200Gb/s InfiniBand ports
- Up to 80 HDR100 100Gb/s ports using split cables
- Ultra-low latency: <90 ns
- Support for SHARP™ technology for in-network computation
- Redundant, hot-swappable power supplies and fans
- Integrated x86 ComEx Broadwell CPU with onboard subnet manager
- Comprehensive management via CLI, WebUI, SNMP, and JSON
3. Core Technologies
The QM8700 leverages Mellanox's SHARP (Scalable Hierarchical Aggregation and Reduction Protocol) technology to offload collective operations from CPUs to the switch, significantly accelerating MPI and machine learning workloads. It supports adaptive routing, congestion control, and VL mapping to optimize traffic flow and maximize usable bandwidth.
4. Working Principle
The switch uses a cut-through architecture to minimize latency. Data packets are processed in real-time with adaptive routing algorithms that dynamically select paths to avoid congestion. SHARP technology enables aggregation and reduction operations within the network, reducing data movement and improving application performance.
5. Applications
- High-Performance Computing (HPC) clusters
- Artificial Intelligence and Machine Learning training
- Enterprise Data Centers (EDC) with high-bandwidth needs
- Cloud infrastructure and hyperscale deployments
- Storage area networks (SAN) and data-intensive applications
6. Specifications
| Specification | Value |
|---|---|
| Ports | 40 x HDR 200Gb/s QSFP56 |
| Throughput | 16 Tb/s |
| Latency | <90 ns |
| Power Supply | Dual redundant, hot-swappable AC PSUs |
| Cooling | N+1 redundant hot-swappable fans |
| Management | Ethernet, RS232, USB, WebUI, SNMP, CLI |
| Compliance | RoHS-6, CE, FCC, ISO, ETS |
7. Advantages
- Highest port density and bandwidth in a 1U form factor
- Reduced operational cost with energy-efficient design
- Enhanced application performance via in-network computation
- Backward compatibility with previous InfiniBand generations
- Simplified management with integrated UFM software
8. Service & Support
We offer a 1-year warranty, 24/7 technical support, and global shipping. Our professional team provides pre-sales consultation and post-sales integration services to ensure seamless deployment.
9. FAQ
Q: Can the QM8700 be used with existing FDR or EDR InfiniBand equipment?
A: Yes, it is backward compatible with FDR and EDR InfiniBand speeds.
Q: What management interfaces are supported?
A: CLI, WebUI, SNMP, and JSON-based APIs are all supported.
Q: Is the power supply redundant?
A: Yes, the switch includes dual hot-swappable power supplies for redundancy.
10. Precautions
- Ensure proper airflow and temperature control (0°C to 40°C operating range)
- Use compatible Mellanox cables and transceivers for optimal performance
- Follow ESD safety procedures during installation
- Verify firmware compatibility with existing network equipment
