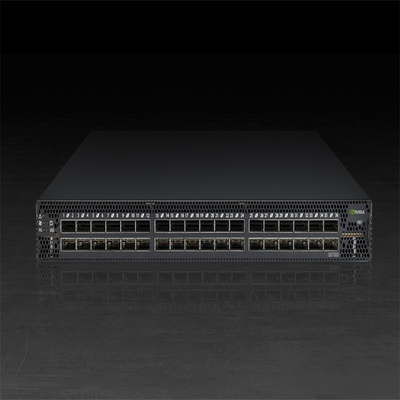

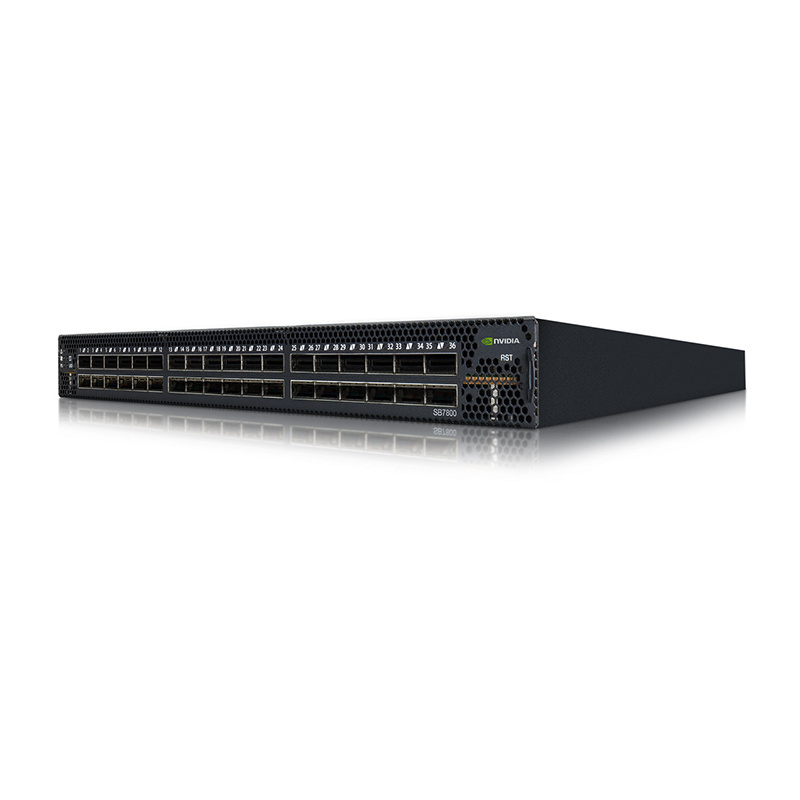

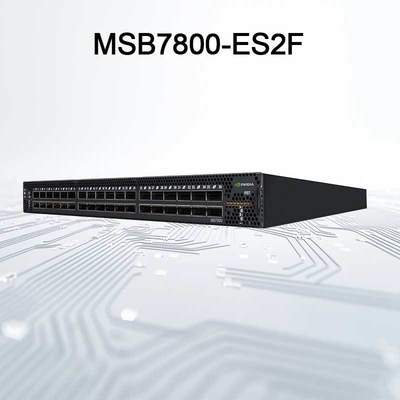

MSB7800-ES2F Network IB Mellanox 100gb Switch High Speed In Date Center
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MSB7800-ES2F |
| Document: | MSB7800.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Payment Terms: | ,T/T |
|
Detail Information |
|||
| Brand: | Mellanox | Model Number: | MSB7800-ES2F |
|---|---|---|---|
| Speed: | 100Gb/s Per Port | Ports: | 36 X QSFP28 |
| Name: | MSB7800-ES2F Network IB Mellanox 100gb Switch High Speed In Date Center | Keyword: | Mellanox Network Switch |
| Highlight: | MSB7800-ES2F mellanox 100gb switch,Date Center mellanox 100gb switch,MSB7800-ES2F mellanox 100gbe switch |
||
Product Description
NVIDIA Switch-IB 2 SB7800 Series 100Gb/s InfiniBand Switch
High-Value Selling Points
- 36 ports of 100Gb/s InfiniBand connectivity
- 7.2 Tb/s aggregate bidirectional throughput
- NVIDIA SHARP™ technology for accelerated MPI operations
- Ultra-low latency for high-performance computing
- Energy-efficient design with redundant power and cooling
Product Overview
The NVIDIA Switch-IB 2 SB7800 Series represents the pinnacle of high-speed networking technology, designed specifically for data-intensive environments. This advanced InfiniBand switch delivers exceptional performance for HPC, AI, and large-scale cloud deployments. With 36 non-blocking ports each capable of 100Gb/s speeds, this network switch provides the backbone for modern computational workloads.
Key Features
High Performance
36 ports of 100Gb/s InfiniBand with 7.2 Tb/s aggregate throughput and ultra-low latency.
In-Network Computing
NVIDIA SHARP technology offloads collective operations from CPUs to the switch network.
Energy Efficient
Power-optimized design with ATIS weighted power consumption as low as 122W.
High Availability
Redundant power supplies (1+1) and hot-swappable fans for maximum uptime.
Core Technology
The SB7800 switch incorporates NVIDIA's innovative Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. This groundbreaking approach significantly improves MPI operation performance by offloading collective operations from the CPU to the switch network. This network card technology eliminates the need to send data multiple times between endpoints, reducing network traffic and dramatically cutting MPI operations time.
Working Principle
The Switch-IB 2 architecture operates as a high-performance interconnect solution that processes data at exceptional speeds. When deployed in computational clusters, this network switch facilitates direct communication between nodes while offloading collective operations through SHARP technology. The integrated x86 dual-core processor running MLNX-OS manages chassis operations, while the high-radix switch fabric ensures non-blocking performance across all ports.
Application Scenarios
- High-Performance Computing: Ideal for scientific simulations and research applications requiring massive data transfer
- Artificial Intelligence: Supports deep learning training with high-speed interconnect for multi-node GPU clusters
Technical Specifications
| Specification | Details |
|---|---|
| Port Configuration | 36 x QSFP28 ports |
| Data Rate | 100Gb/s per port |
| Throughput | 7.2 Tb/s aggregate bidirectional |
| Switch Radix | 36 non-blocking ports |
| Power Supply | 1+1 redundant, hot-swappable (100-240VAC) |
| Cooling | Hot-swappable fans, front-to-rear or rear-to-front |
| Management | MLNX-OS, RJ45, RS232 console, USB |
| Processor | Intel Celeron 1047UE dual-core |
| Memory | 4GB RAM DDR3, 16GB SSD |
| Dimensions | 1.7" H x 16.85" W x 27" D (1U) |
| Weight | 11.98 kg |
Model Selection Guide
| Model Number | Description | Airflow |
|---|---|---|
| MSB7800-ES2F | 36-port 100Gb/s InfiniBand switch, 2 power supplies | Port-to-rack (P2C) |
| MSB7800-ES2R | 36-port 100Gb/s InfiniBand switch, 2 power supplies | Rack-to-port (C2P) |
| MSB7880-ES2R | 36-port 100Gb/s InfiniBand router, 2 power supplies | Rack-to-port (C2P) |
| MSB7880-ES2F | 36-port 100Gb/s InfiniBand router, 2 power supplies | Port-to-rack (P2C) |
Competitive Advantages
- Industry-Leading Performance: With 7.2 Tb/s aggregate throughput, this network switch outperforms comparable solutions in its class
- SHARP Technology: Exclusive in-network computing capability reduces MPI operation times significantly
- Energy Efficiency: Consumes up to 30% less power than competing solutions while delivering superior performance
- Comprehensive Management: MLNX-OS and UFM platform integration provide unparalleled visibility and control
- Future-Proof Design: Supports evolving computational workloads and scalability requirements
Service & Support
We provide comprehensive support services for all our networking products, including this high-performance network card solution. Our services include:
- Warranty: Standard manufacturer warranty with extended options available
- Technical Support: 24/7 expert consultation and troubleshooting
- Delivery: Global shipping with various expedited options
- Integration Services: Professional deployment and configuration assistance
- Training: Comprehensive operational and maintenance training programs
Frequently Asked Questions
Q: What is the primary advantage of SHARP technology?
A: SHARP technology significantly accelerates MPI operations by offloading collective operations from CPUs to the switch network, reducing data traversal and computation time.
Q: Can this switch be integrated with existing Ethernet infrastructure?
A: Yes, through gateway solutions, this InfiniBand switch can connect to Ethernet networks while maintaining performance benefits for compatible workloads.
Q: What cooling configurations are available?
A: The switch supports both front-to-rear and rear-to-front cooling configurations with hot-swappable fan modules for continuous operation.
Q: How does this switch reduce operational costs?
A: Through energy-efficient design, reduced CPU utilization via SHARP technology, and simplified management, this network switch lowers total cost of ownership.
Installation & Operational Notes
- Ensure proper airflow clearance as specified in the installation guide
- Operate within specified temperature (0°C to 45°C) and humidity (10% to 85% non-condensing) ranges
- Verify power requirements and use appropriate redundant power sources
- Use only compatible QSFP28 transceivers and cables for optimal performance
- Comply with all relevant EMC standards (CE, FCC, VCCI, ICES, RCM) for your region
- Follow safety certifications including RoHS, CS, cTUVus, CE, and CU
- Implement regular firmware updates to maintain security and performance
