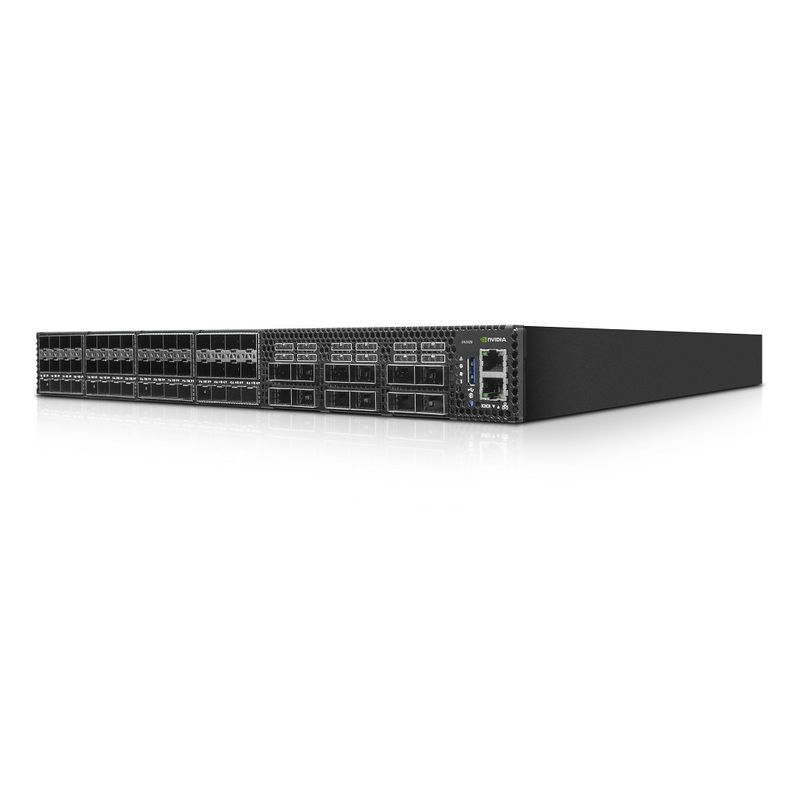

25GbE/100GbE 1U Mellanox Network Switch MSN3420-CB2FC Spectrum-2 Based

25GbE/100GbE 1U Mellanox Network Switch MSN3420-CB2FC Spectrum-2 Based

25GbE Mellanox Network Switch

Mellanox Network Switch MSN3420-CB2FC

Spectrum-2 Based MSN3420-CB2FC

Brand Name:


Model Number:



Request A Quote
Product Details
48SFP28 + 12 QSFP28
Communication Mode:
Full-Duplex & Half-Duplex
Switch Capacity:
48 X10/25GbE 12 X 100GbE
System Weight:
System Dimensions:
Rack Mount:
1U Rack Mount
Product Description

NVIDIA MSN3420-CB2FC Spectrum-2 Based 25GbE/100GbE 1U Open Ethernet Switch with Cumulus Linux 48 SFP28 Ports and 12 QSFP28 Ports 2 Power Supplies (AC) x86 CPU Short Depth P2C Airflow Rail Kit

SN3420 Series Switches

As data-center switching architectures increasingly adopt 100GbE, the SN3420 offers a high-performance, cost-effective way to evolve host connectivity from 10G to 25G. Equipped with 48 ports of 10/25GbE and 12 ports of up to 100GbE in a compact 1U form factor. The SN3420 is an ideal Top-of-Rack (ToR) network switch, delivering a total throughput of up to 4.8Tb/s with a processing capacity of 3.58Bpps. The SN3420 enables the seamless use of QSFP28 connections for leaf-spine topology and future-proofing the data center.


  • NVIDIA What Just Happened (WJH) telemetry dramatically reduces mean time to issue resolution by providing answers to: When, What, Who, Where and Why
  • Hardware-accelerated histograms track and summarize queue depths at submicrosecond granularity
  • Inband Network Telemetry (INT)-ready hardware
  • Streaming Telemetry
  • 512K on-chip flow counters


  • Fully shared packet buffer provides a fair, predictable and high bandwidth data path
  • Consistent and low cut-through latency
  • Robust RoCE transport to power NVMe over fabric and Machine Learning applications that leverage NVIDIA GPUDirect
  • Best-in-class VXLAN scale 10X more tunnels and tunnel endpoints than others
  • 512K shared forwarding entries flexibly shared across ACL, LPM routes, host routes, MAC, ECMP and tunnel applications


  • Comprehensive Layer-2, Layer-3 and RoCE
  • Advanced network virtualization with high performance single pass VXLAN routing and IPv6 segment routing
  • Cloud Scale NAT 100K+ sessions
  • Programmable pipeline that can programmatically parse, process and edit packets
  • Deep Packet Inspection 512B deep
Feature Value

Size: 1.72’’ (H) x17.24’’ (W) x 18.29’’ (D)
44mm (H) x 438mm (W) x 464.6mm (D)
Mounting: 19” Rack mount
Weight: 8.500Kg

48 x10/25GbE

12 x 100GbE

Connector cage: 48SFP28 + 12 QSFP28

Temperature: Operational: 0° to 40°C
Non-Operational: -40° to 70°C
Humidity: Operational: 10% - 85% non-condensing
Non-Operational: 10% - 90% non-condensing
Altitude: 3050m
Noise level: Contact NVIDIA for more information
Regulatory Safety/ EMC: CB, cTUVus, CE, CU, S_Mark, CE, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC
RoHS: RoHS compliant
Power Input Voltage:

1x/2x, 100-127VAC 50-60Hz 6A; 200-240 50-60Hz 3A

Global Power Consumption: Typical power with passive cables (ATIS): 202W
Main Devices

CPU: Intel x86 D-1508 2.20GHz Dual Core
PCIe: 4X Gen 2
Switch: NVIDIA Spectrum®-2
Memory: 8GB RAM, 30GB SSD
Throughput 4.8Tb/s
