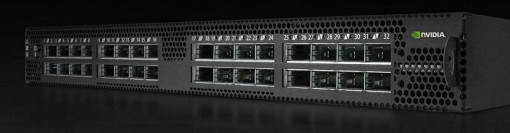

MSN3700-VS2F 200GbE Mellanox Network Switch SN3000 1U Rack Mount
Product Details:
Brand Name: | Mellanox |
Model Number: | MSN3700-VS2F |
Document: | sn3000-series.pdf |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiate |
Packaging Details: | outer box |
Delivery Time: | Based on inventory |
Payment Terms: | T/T |
Supply Ability: | Supply by project/batch |
Detail Information |
|||
Ports:: | 32 QSFP56 | Transmission Rate: | 200GbE |
---|---|---|---|
Function: | LACP, Stackable, VLAN Support | Communication Mode: | Full-Duplex & Half-Duplex |
Switch Capacity: | 200GbE | Technology: | Ethernet |
System Weight: | 11.1kg | System Dimensions: | 44mm X 428mm X 559mm |
Rack Mount: | 1U Rack Mount | Condition: | Original |
Highlight: | 200GbE 1U Mellanox Network Switch,SN3000 Mellanox Network Switch,SN3000 mellanox 200gbe switch |
Product Description
NVIDIA Spectrum SN3000 Series Switch - MSN3700-VS2F
MSN3700-VS2F Product Overview
The NVIDIA Spectrum SN3000 Series, specifically the MSN3700-VS2F model, represents a significant leap in data center switching technology. Built on the powerful Spectrum-2 ASIC, this 1U open Ethernet network switch delivers exceptional performance, scalability, and telemetry capabilities. It is engineered for modern leaf, spine, and super-spine deployments, offering 32 ports of up to 200GbE connectivity. The SN 2000 series foundation ensures robust support for high-speed networking, cloud infrastructure, and hyperconverged environments, making it an ideal solution for enterprises seeking flexibility and future-proofing.
Key Features
- 32 QSFP56 ports supporting speeds from 10GbE to 200GbE per port
- 6.4 Tb/s bidirectional switching capacity with 8.33 Bpps processing
- Cut-through latency as low as 425 nanoseconds
- 42MB fully shared packet buffer for congestion management
- Comprehensive support for NVIDIA Onyx, Cumulus Linux, or ONIE-based OS options
- Advanced telemetry with NVIDIA What Just Happened (WJH) technology
- Hardware-accelerated RoCE for NVMe over Fabrics and AI workloads
Core Technology
The SN 2000 series leverages NVIDIA's Spectrum-2 ASIC, which incorporates a fully programmable pipeline and deep packet inspection capabilities. It supports advanced networking protocols including VXLAN routing, IPv6 segment routing, and network address translation (NAT). The architecture enables single-pass processing for both traditional and overlay networks, ensuring consistent performance without compromising feature richness. This network switch also integrates open Ethernet principles, allowing disaggregation of hardware and software to prevent vendor lock-in.
MSN3700-VS2F How It Works
The MSN3700-VS2F operates as a high-performance switching platform utilizing a shared-memory architecture. Incoming traffic is processed through the Spectrum-2 chip, which performs wire-speed forwarding, filtering, and telemetry collection. The switch supports cut-through forwarding mode, minimizing latency by beginning packet transmission before the entire packet is received. Built-in flow counters and hardware-accelerated telemetry provide real-time visibility into network performance, while the programmable pipeline allows custom packet parsing and editing up to 512 bytes deep.
Applications
This network switch is ideal for:
- Cloud data center leaf-spine architectures
- High-performance computing clusters
- AI and machine learning infrastructure
- Hyperconverged storage networks
- Financial trading environments
- Media and entertainment content distribution
- Enterprise campus core networking
The SN 2000 series design supports seamless integration with NVIDIA's end-to-end networking ecosystem, including ConnectX NICs and LinkX cables.
Specifications
Parameter | Specification |
---|---|
Model | MSN3700-VS2F |
Port Configuration | 32 x QSFP56 (200GbE) |
Max Throughput | 12.8 Tb/s |
Forwarding Rate | 8.33 Bpps |
Latency | 425 ns |
Packet Buffer | 42 MB |
Power Supplies | 2 hot-swappable (1+1 redundancy) |
Cooling | 6 hot-swappable fans (N+1 redundancy) |
Dimensions (HxWxD) | 1.72" x 16.84" x 22" (44mm x 428mm x 559mm) |
Weight | 11.1 kg (24.5 lb) |
Competitive Advantages
The SN3000 series, particularly this network switch model, offers several distinct advantages:
- Superior telemetry capabilities with WJH technology for rapid troubleshooting
- Larger shared packet buffer (42MB) compared to similar-class switches
- 10x more VXLAN tunnels and endpoints than competing solutions
- Comprehensive RoCE support for GPUDirect and NVMe over Fabrics
- True open Ethernet implementation with multiple NOS options
- Future-proof design supporting emerging 200GbE and 400GbE standards
The SN 2000 architecture provides exceptional value for modern data center requirements.
Service & Support
NVIDIA provides a one-year limited hardware warranty with 14-business-day repair turnaround. Extended service options include next-business-day advance replacement and 4-hour technical dispatch. Professional services are available for installation, configuration, and ongoing monitoring. Our technical team offers 24/7 consultation and support to ensure optimal operation of your network switch infrastructure.
Frequently Asked Questions
What operating systems are supported on the MSN3700-VS2F?
The switch supports NVIDIA Onyx, Cumulus Linux, or any ONIE-compatible network operating system, providing flexibility for different environments.
Can this switch be used in existing 10GbE/40GbE environments?
Yes, through breakout cables, the ports can be configured to support various speeds from 10GbE to 200GbE, ensuring compatibility with existing infrastructure.
What makes the Spectrum-2 ASIC different from other switching chips?
The Spectrum-2 ASIC features a fully shared packet buffer, programmable pipeline, and advanced telemetry capabilities that provide better performance visibility and congestion management.
Is this switch suitable for RoCE deployments?
Yes, the switch provides robust RoCE transport capabilities essential for NVMe over Fabrics and machine learning applications leveraging GPUDirect technology.
Important Considerations
- Ensure proper airflow clearance in rack installation
- Verify compatibility of transceivers and cables with intended use
- Operating temperature: 0°C to 40°C with 5% to 85% relative humidity
- Complies with safety standards: CB, CE, cTUVus, CU
- EMC compliance: CE, ICES, FCC, RCM, VCCI
- Plan for appropriate power requirements (100-264V AC, 50-60Hz)
