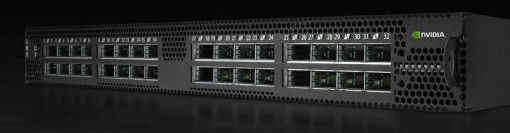

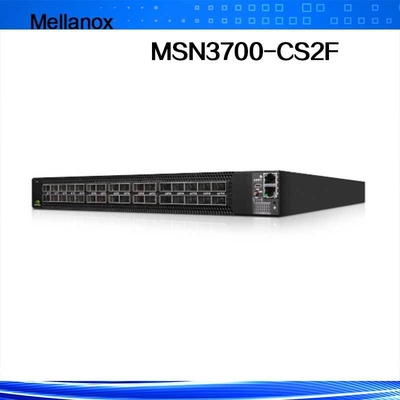

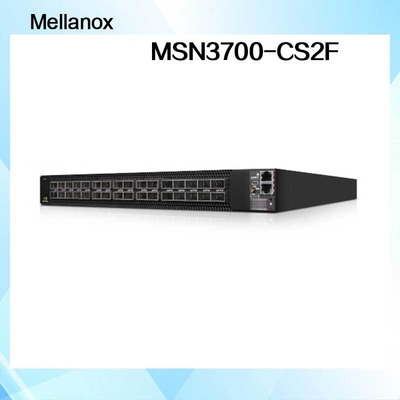

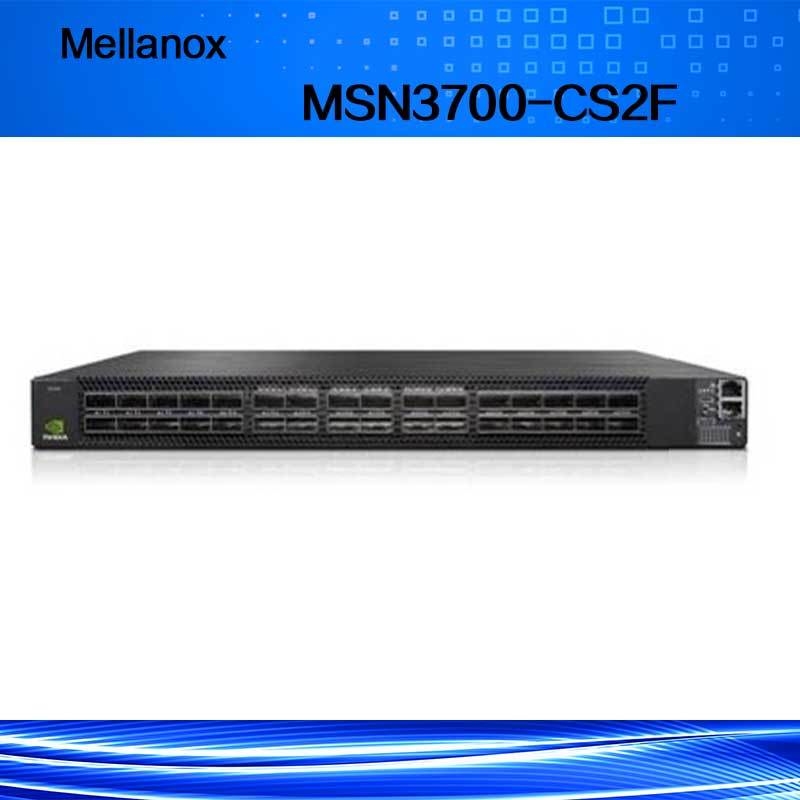

FDR Mellanox Network Switch MSN3700-CS2F 100GbE 1U 2 Power Supplies (AC)

FDR Mellanox Network Switch MSN3700-CS2F 100GbE 1U 2 Power Supplies (AC)

FDR Mellanox Network Switch

100GbE Mellanox Network Switch

100GbE mellanox fdr switch

Brand Name:


Model Number:



Request A Quote
Product Details
32 QSFP28 Ports
Transmission Rate:
LACP, Stackable, VLAN Support
Communication Mode:
Full-Duplex & Half-Duplex
Switch Capacity:
System Weight:
System Dimensions:
44mm X 428mm X 559mm
Rack Mount:
1U Rack Mount
Products Status:
1 Year
Product Description

NVIDIA Spectrum®-2 based 100GbE 1U Open Ethernet Switch with NVIDIA Onyx, 32 QSFP28 ports, 2 Power Supplies (AC)


NVIDIA Spectrum SN3000 Series
SN3000 series platforms are based on the high-performance Spectrum-2 ASIC with a bidirectional switching capacity of 6.4Tb/s. SN3000 platforms are available in a range of configurations, each delivering high performance combined with featurerich layer 2 and layer 3 forwarding, ideally suited for both top-of-rack (ToR) leaf and fixed configuration spines.


SN3000 series provides full wire speed, cut through-mode latency, onchip fully-shared 42MB packet buffering, and flexible port use in addition to advanced capabilities. Combining a wide range of innovations in the area of programmability, telemetry, and tunneling with industry leading performance, NVIDIA SN3000 series is capable of addressing today’s data center’s complex networking requirements.


SN3700C is a 1U 32-port 100GbE spine that can also be used as a high density 10/25GbE leaf when used with splitter cables. SN3700C allows for maximum flexibility, with ports spanning from 1GbE to 100GbE and port density that enables full rack connectivity to any server at any speed, and a variety of blocking ratios. SN3700C ports are fully splittable to up to 128 x 10/25GbE ports.


The SN3000 series is ideal for building cloud-scale layer-2 and layer-3 networks. The SN3000 platforms deliver high performance, consistent low latency along with support for advanced software defined networking features, making it the ideal choice for web scale IT, cloud, hyperconverged storage and data analytics applications.
Open Ethernet breaks the paradigm of traditional switch systems, eliminating vendor lock-in. Instead of forcing network operators to use the specific software that is provided by the switch vendor, open Ethernet offers the flexibility to use a choice of operating systems on top of Ethernet switches, thereby regaining control of the network, and optimizing utilization, efficiency and overall return on investment.
Encouraging an ecosystem of open source, standard network solutions, open Ethernet adopts the same principles as standard open solutions for servers and storage, and applies them to the world of networking infrastructure. These solutions can then be easily deployed into the modern data center across network equipment that eases management and ensures full interoperability.
With a range of system form factors, and a rich software ecosystem, SN3000 series allows you to pick and choose the right components for your data center.
Visibility Performance Agility
> NVIDIA What Just Happened® (WJH)
telemetry dramatically reduces mean
time to issue resolution by providing
answers to: When, What, Who, Where
and Why
> Hardware-accelerated histograms
track and summarize queue depths
at sub-microsecond granularity
> Inband network telemetry (INT)-ready
> Streaming telemetry
> 512K on-chip flow counters
> Fully shared packet buffer provides a
fair, predictable and high bandwidth
data path
> Consistent and low cut-through
> Robust RoCE transport to power
NVMe over fabric and machine
learning applications that leverage
> Best-in-class VXLAN scale—10X
more tunnels and tunnel endpoints
than others
> 512K shared forwarding entries
flexibly shared across ACL, LPM
routes, host routes, MAC, ECMP
and tunnel applications
> Comprehensive Layer-2, Layer-3
and RoCE
> Advanced network virtualization with
high performance single pass VXLAN
routing and IPv6 segment routing
> Cloud scale NAT – 100K+ sessions
> Programmable pipeline that can
> programmatically parse, process and
edit packets
> Deep packet inspection – 512B deep




Industry-leading switch platform in performance, power, and density

Designed for energy and cost savings

Collective communication acceleration

Quick and easy setup and management

Maximizes performance by removing fabric congestions

Backward compatible to FDR technology
