Mellanox Network Switch OEM 25GbE/100GbE Mellanox Open Source Ethernet Switch MSN3420-CB2F

Mellanox Network Switch OEM 25GbE/100GbE Mellanox Open Source Ethernet Switch MSN3420-CB2F

OEM 25GbE open source ethernet switch

open source ethernet switch MSN3420-CB2F

OEM mellanox 100gbe switch

Brand Name:


Model Number:



Request A Quote
Product Details
48SFP28 + 12 QSFP28
Transmission Rate:
48 X10/25GbE 12 X 100GbE
LACP, Stackable, VLAN Support
Communication Mode:
Full-Duplex & Half-Duplex
Switch Capacity:
48 X10/25GbE 12 X 100GbE
System Weight:
System Dimensions:
Rack Mount:
1U Rack Mount
Product Description

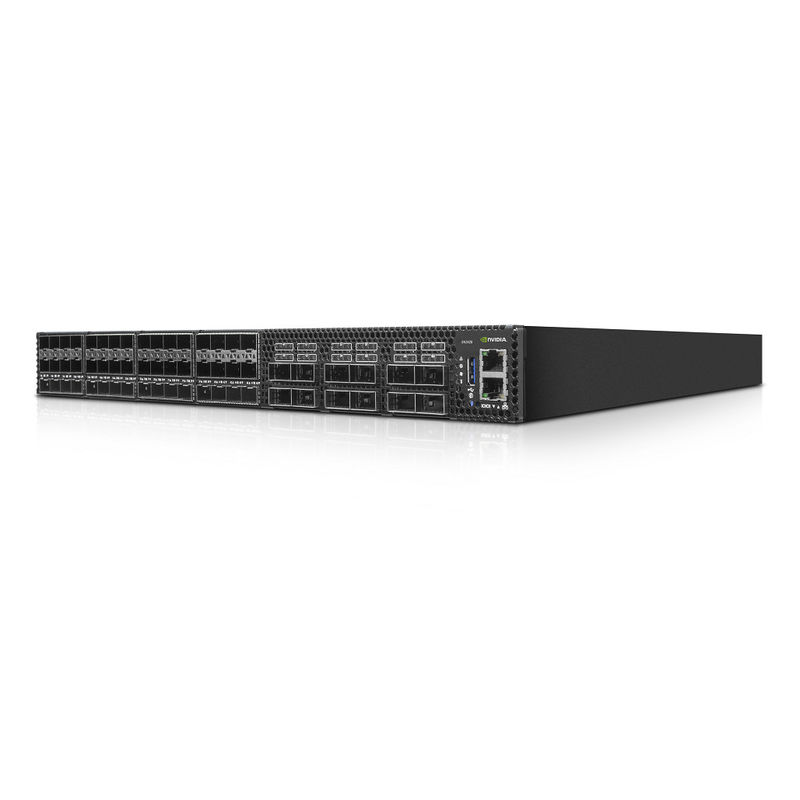

NVIDIA MSN3420-CB2F Spectrum-2 Based 25GbE/100GbE 1U Open Ethernet Switch with Onyx 48 SFP28 Ports and 12 QSFP28 Ports 2 Power Supplies (AC) x86 CPU Short Depth P2C Airflow Rail Kit

SN3420 Series Switches

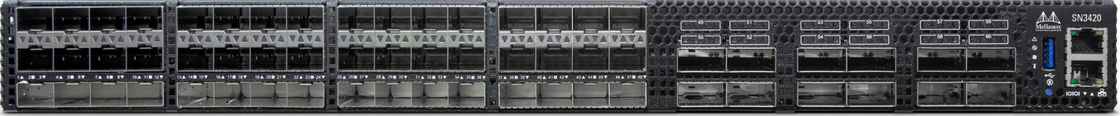

As data-center switching architectures increasingly adopt 100GbE, the SN3420 offers a high-performance, cost-effective way to evolve host connectivity from 10G to 25G. Equipped with 48 ports of 10/25GbE and 12 ports of up to 100GbE in a compact 1U form factor. The SN3420 is an ideal Top-of-Rack (ToR) network switch, delivering a total throughput of up to 4.8Tb/s with a processing capacity of 3.58Bpps. The SN3420 enables the seamless use of QSFP28 connections for leaf-spine topology and future-proofing the data center.


  • NVIDIA What Just Happened (WJH) telemetry dramatically reduces mean time to issue resolution by providing answers to: When, What, Who, Where and Why
  • Hardware-accelerated histograms track and summarize queue depths at submicrosecond granularity
  • Inband Network Telemetry (INT)-ready hardware
  • Streaming Telemetry
  • 512K on-chip flow counters


  • Fully shared packet buffer provides a fair, predictable and high bandwidth data path
  • Consistent and low cut-through latency
  • Robust RoCE transport to power NVMe over fabric and Machine Learning applications that leverage NVIDIA GPUDirect
  • Best-in-class VXLAN scale 10X more tunnels and tunnel endpoints than others
  • 512K shared forwarding entries flexibly shared across ACL, LPM routes, host routes, MAC, ECMP and tunnel applications


  • Comprehensive Layer-2, Layer-3 and RoCE
  • Advanced network virtualization with high performance single pass VXLAN routing and IPv6 segment routing
  • Cloud Scale NAT 100K+ sessions
  • Programmable pipeline that can programmatically parse, process and edit packets
  • Deep Packet Inspection 512B deep


Packet buffer architecture has a major impact on overall switch performance.  The Spectrum-2 packet buffer is fully shared across all ports, supporting cut through line rate traffic from all ports, without compromising scale or features.  With its fast packet buffer, Spectrum-2 is able to provide a high-performance  fair and bottleneck-free data path for mission-critical applications.
Spectrum-2 provides deep and contextual network visibility, which enables  network operators to proactively manage issues and reduce mean time to  recovery/innocence. The What Just Happened (WJH) Spectrum feature  leverages the underlying silicon and software capability to provide granular  and event-triggered information about infrastructure issues. In addition, the
rich telemetry information from Spectrum-2 is readily available via open APIs  that are integratable with third party software tools and workflow engines.
For modern data center infrastructure to be software defined and agile, both its compute and network building blocks need to be agile. Spectrum-2 features a unique feature rich and efficient packet processing pipeline that offers data center network virtualization features without compromising on performance or scale. Spectrum-2 is a programmable pipeline and a deep
packet parser/editor (can process payload up to the first 512B). Spectrum-2 supports single pass VXLAN routing as well as bridging. Additionally, Spectrum-2 supports advanced virtualization features such as IPv6 segment routing, and network address translation (NAT).
Feature Value

Size: 1.72’’ (H) x17.24’’ (W) x 18.29’’ (D)
44mm (H) x 438mm (W) x 464.6mm (D)
Mounting: 19” Rack mount
Weight: 8.500Kg

48 x10/25GbE

12 x 100GbE

Connector cage: 48SFP28 + 12 QSFP28

Temperature: Operational: 0° to 40°C
Non-Operational: -40° to 70°C
Humidity: Operational: 10% - 85% non-condensing
Non-Operational: 10% - 90% non-condensing
Altitude: 3050m
Noise level: Contact NVIDIA for more information
Regulatory Safety/ EMC: CB, cTUVus, CE, CU, S_Mark, CE, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC
RoHS: RoHS compliant
Power Input Voltage:

1x/2x, 100-127VAC 50-60Hz 6A; 200-240 50-60Hz 3A

Global Power Consumption: Typical power with passive cables (ATIS): 202W
Main Devices

CPU: Intel x86 D-1508 2.20GHz Dual Core
PCIe: 4X Gen 2
Switch: NVIDIA Spectrum®-2
Memory: 8GB RAM, 30GB SSD
Throughput 4.8Tb/s

 Mellanox Network Switch OEM 25GbE/100GbE Mellanox Open Source Ethernet Switch MSN3420-CB2F 0



Q1.What can you buy from us?

       A:Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, Access Point, etc.

Q2.How about the delivery date?

      A:It usually takes 3-5 working days. For specific models, please contact us to check the stock. In the end, the actual

      consultation shall prevail. We will do our best to deliver as soon as possible.

Q3.What's your warranty terms?

      A: We supply 12 months warranty time.

Q4.How about the Shipping Method?

      A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do

      any shipments that you wanted.

Q5.Can I get some samples?

      A:Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.

Q6.What are your core strengths?

      A:First-hand supply, Original and new products with the favorable price and perfect after-sales service.
