Mellanox cable MFP7E10-N030 MPO-12/APC to MPO-12/APC Multimode Optical Fiber Cable
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFP7E10-N030(980-9I557-00N030) |
| Document: | MFP7E10-Nxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model: | MFP7E10-N030 | Length: | 30 M |
|---|---|---|---|
| Fiber Type: | Multimode OM4 | Connectors: | MPO-12/APC (Female) |
| Insertion Loss: | ≤ 0.362 DB | Return Loss: | ≥ 35 DB |
| Highlight: | 25GbE dac network cable,3m dac network cable,25GbE sfp28 breakout cable |
||
Product Description
NVIDIA MFP7E10-N030 MPO-12/APC to MPO-12/APC Multimode Optical Fiber Cable
1. Product Overview
The NVIDIA MFP7E10-N030 is a high-performance, 30-meter Multimode Fiber (MMF) Optical Fiber Cable designed for high-speed data center interconnects. This passive fiber cable features MPO-12/APC (Angled Physical Contact) connectors on both ends, ensuring minimal signal reflection and optimal integrity for 400GbE, InfiniBand NDR, and NVLink applications. It provides a reliable, low-latency solution for connecting switches, adapters, and DPUs within a maximum reach of 50 meters.
2. Key Characteristics
- MPO-12/APC to MPO-12/APC female connectors
- 8-fiber crossover (Type-B) topology
- 50/125 µm Multimode OM4 fiber
- Low Smoke Zero Halogen (LSZH) jacket
- Supports InfiniBand NDR, Ethernet, NVLink
- Compliant with IEC 61754-7 and Telcordia GR-1435
3. Technology & Standards
The MFP7E10 cable leverages angled polishing (APC) technology to reduce optical back reflection, critical for maintaining signal quality in high-speed environments. It complies with international standards including IEC 61754-7 for MPO connectors and is designed for use with NVIDIA® Mellanox® networking equipment.
4. Working Principle
This passive fiber cable uses a crossed fiber arrangement (Type-B) where transmit lanes from one end connect to receive lanes on the opposite end. The APC polish with an 8-degree angle minimizes reflectance, ensuring clean signal transmission between transceivers such as the MMA4Z00-NS OSFP DR8.
5. Applications
- Data center spine-leaf switch interconnections
- High-performance computing (HPC) clusters
- AI and machine learning infrastructure
- Storage area networks (SANs)
- ConnectX-7 adapters and BlueField-3 DPU links
6. Specifications & Selection Guide
| Parameter | Value |
|---|---|
| Model | MFP7E10-N030 |
| Length | 30 m |
| Fiber Type | Multimode OM4 |
| Connectors | MPO-12/APC (Female) |
| Insertion Loss | ≤ 0.362 dB |
| Return Loss | ≥ 35 dB |
| Jacket | Aqua, LSZH-OFNR |
| Operating Temp | 0°C to 70°C |
7. Advantages
- Superior signal integrity with APC polished connectors
- Designed for NVIDIA Mellanox ecosystems
- Flexible and durable LSZH jacket for safe deployment
- Wide compatibility with OSFP, QSFP112, and DR8 transceivers
8. Service & Support
We provide 24/7 technical consultation, global shipping, and after-sales support. All products include standard warranty and are sourced directly from certified channels.
9. Frequently Asked Questions
Q: Can I use this cable to connect two switches?
A: Yes, the MFP7E10-N030 is ideal for switch-to-switch connections in a 400G network.
Q: Is this compatible with non-NVIDIA equipment?
A: It is optimized for NVIDIA Mellanox devices but may work with other MPO-12/APC compatible hardware.
Q: What is the maximum reach?
A: Up to 50 meters for multimode connections.
10. Precautions
- Do not mix with MPO-12/UPC connectors—fiber polish is incompatible.
- Always clean connectors before insertion to avoid contamination.
- Observe ESD precautions when handling transceivers.

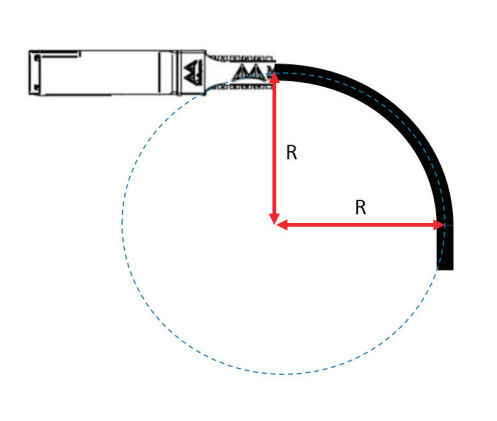

- Do not bend below a 30 mm radius.
