Mellanox cable MFP7E10-N020 MPO-12/APC to MPO-12/APC Multimode Optical Fiber Cable
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCP2M00-A005 |
| Document: | MFP7E10-Nxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Product Model: | MFP7E10-N020 | Cable Type: | Multimode OM4 |
|---|---|---|---|
| Length: | 20 Meters | Connector Type: | MPO-12/APC (Female To Female) |
| Maximum Data Rate: | 400G | Insertion Loss: | ≤ 0.75 DB |
| Highlight: | 100g Mellanox DAC Cable,Mellanox DAC Cable MCP2M00-A005,5m 100g qsfp28 dac cable |
||
Product Description
NVIDIA MFP7E10-N020 MPO-12/APC to MPO-12/APC Multimode Optical Fiber Cable
Product Overview
The NVIDIA MFP7E10-N020 represents a premium passive optical fiber solution specifically engineered for 400G InfiniBand and Ethernet implementations in modern data center environments. This 20-meter multimode optical fiber cable features precision MPO-12/APC connectors on both termini, ensuring minimal insertion loss and maximum reliability in high-demand operations. This passive fiber cable facilitates high-speed interconnections between switching systems, adapters, and data processing units, establishing itself as an optimal solution for data-intensive computational workloads where extended reach is required.
Key Characteristics
- Dual MPO-12/APC female connectors with 8-degree angled polish for superior reflection reduction
- Comprehensive protocol support including InfiniBand NDR, Ethernet, and NVLink
- 50/125 µm OM4 multimode fiber construction with distinctive aqua LSZH protective jacket
- Type-B crossover fiber alignment enabling direct transceiver-to-transceiver connectivity
- Rigorous compliance with IEC 61754-7, ANSI/TIA/EIA 604-5, and Telcordia GR-1435 standards
- Extended 20-meter reach capability for flexible data center layouts
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MFP7E10-N020 |
| Cable Type | Multimode OM4 |
| Length | 20 meters |
| Connector Type | MPO-12/APC (Female to Female) |
| Maximum Data Rate | 400G |
| Insertion Loss | ≤ 0.75 dB |
| Return Loss | ≥ 35 dB |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Fiber Count | 8 fibers (4Tx/4Rx) |

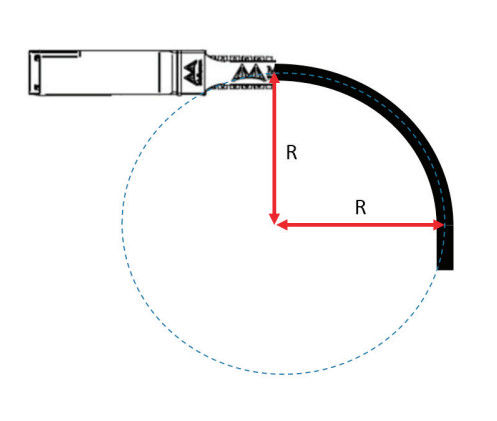

| Minimum Bend Radius | 30 mm |
| Cable Diameter | 3.0 ± 0.2 mm |
| Jacket Material | LSZH-OFNR (Low Smoke Zero Halogen) |
Technical Operation
This advanced optical fiber cable employs a Type-B fiber crossover configuration where transmission channels from the source module are precisely aligned with reception channels on the destination module. This sophisticated optical fiber cable design eliminates the requirement for intermediary equipment in direct transceiver interconnections. The innovative APC polishing methodology ensures exceptional signal integrity through substantial reduction of reflected light interference, making this passive fiber cable particularly suitable for extended-reach applications in high-performance computing environments.
Implementation Scenarios
- Data center spine-leaf architecture interconnections requiring extended reach
- High-performance computing clusters with distributed infrastructure
- Artificial intelligence and machine learning deployment environments
- Enterprise-scale cloud storage and computational networks
- ConnectX-7 and BlueField-3 adapter integration systems
- High-frequency trading network infrastructure
- Research and educational institution computing facilities
Competitive Advantages
- Extended 20-meter reach without signal degradation for flexible data center design
- Exceptional signal fidelity through precision APC polished connectors
- Broad interoperability with NVIDIA transceivers and switching platforms
- Flexible and robust LSZH jacket ensuring secure deployment operations
- Factory-terminated and pre-validated for immediate deployment reliability
- Superior optical performance characteristics exceeding industry standards
- Reduced power consumption compared to active optical cables
Service & Support Framework
We provide comprehensive technical support services available 24/7, global logistics capabilities, and complete warranty coverage on all product offerings. Our specialized team delivers pre-sales architectural consultation and post-sales technical troubleshooting to ensure seamless system integration and operational excellence for this optical fiber cable and related networking products. With over 10 million inventory options, we guarantee competitive pricing and reliable supply chain operations.
Frequently Asked Questions
Q: What is the maximum supported distance for this passive fiber cable?
A: The MFP7E10-N020 supports distances up to 50 meters using OM4 multimode fiber, with the 20-meter length providing optimal performance for extended-reach applications.
Q: Can this optical fiber cable be used in mixed vendor environments?
A: Yes, this passive fiber cable is compatible with any equipment supporting MPO-12/APC connectors and multimode fiber specifications, regardless of manufacturer.
Q: What distinguishes this optical fiber cable from active optical solutions?
A: This passive fiber cable requires no electrical components or power, offering greater reliability, lower power consumption, and reduced heat generation compared to active alternatives.
Q: What safety certifications does this optical fiber cable hold?
A: This product is certified with CB, cTUVus, CE safety standards and complies with FCC, ICES, RCM, VCCI EMC requirements.
Installation Considerations
- APC and UPC connectors are optically incompatible - do not intermix connector types
- Implement proper connector cleaning procedures using approved optical cleaning tools before installation
- Maintain minimum bend radius of 30 mm during installation to prevent signal degradation
- Store in controlled environments avoiding dust, moisture, and extreme temperature contamination
- Observe standard ESD precautions during handling and installation despite cable's non-conductive nature
- Ensure proper strain relief for extended cable runs to prevent connector damage
