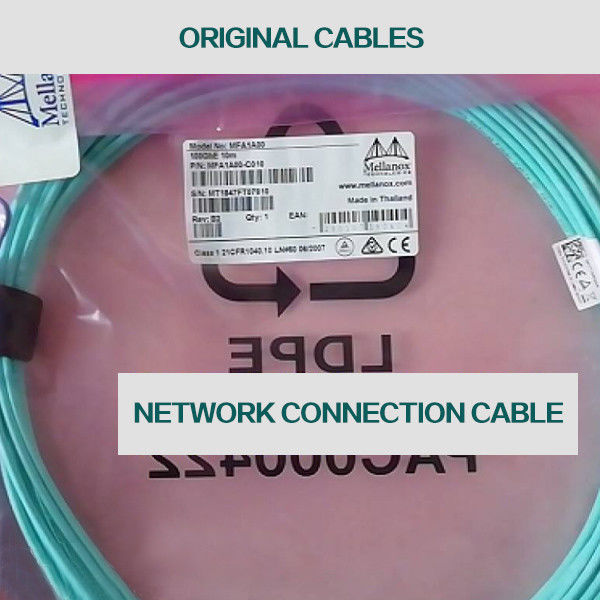

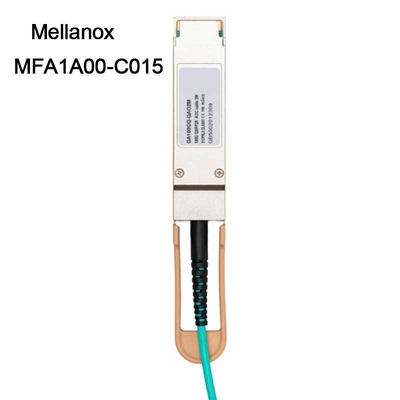

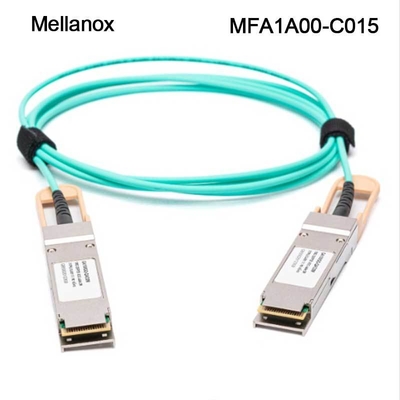

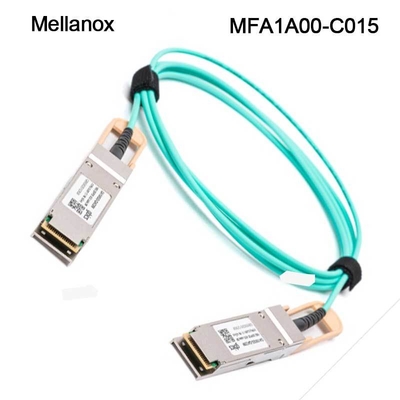

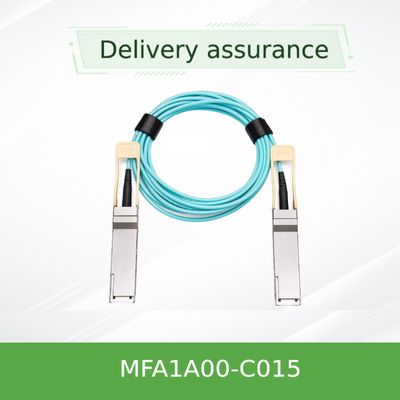

100GbE QSFP LSZH Mellanox AOC Ethernet Cable MFA1A00-C015 15m

100Gb/s QSFP28 MMF Active Optical Cables

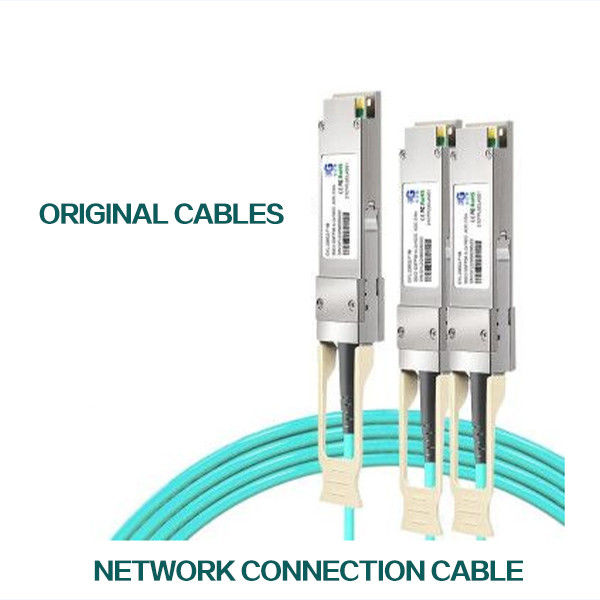

MFA1A00-Cxxx are QSFP28 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cables designed for use in 100Gb/s Ethernet systems.

MFA1A00-Cxxx AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.

MFA1A00-Cxxx has a standard SFF-8665 compliant QSFP28 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 25Gb/s.

MFA1A00-Cxxx offers selectable retiming per lane for both its optical transmitters and receivers for the 25Gbp/s rates, but the AOC also supports lower bit rates without retiming. The transmitters have programmable input equalizers and input squelch function, while the receivers have programmable output amplitude and pre-emphasis.

Mellanox’s unique, quality, active, fiber, cable solutions provide power-efficient connectivity for data center interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous production testing ensures the best out-ofthe-box installation experience, performance and durability.

High-Speed Interconnects
The latest rapid growth in data center traffic and cloud computing has resulted in tremendous increases in machine-to-machine traffic due to rapid adoption of server virtualization, software-defined networks (SDNs), and in-cloud computing. Now add the massive bandwidth requirements for networking terabytes of data for training Artificial Intelligence (AI) machine learning (ML) GPU-based systems.

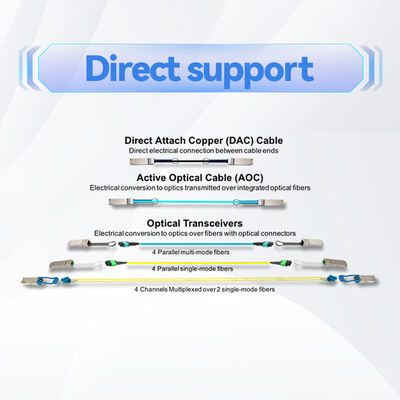

This is driving massive demands for high-bandwidth and low-latency networks. High-speed DAC and AOC cables and optical transceiver interconnects are playing a critical role in these modern data center technologies.

HIGHLIGHTS
–Up to 100Gb/s data rate
– 4x25G NRZ
– 2.2W power dissipation (typ, each end, with retiming)
– Programmable Rx output amplitude and pre-emphasis
– Programmable Tx input equalizer – Selectable retiming
– SFF-8665 compliant QSFP28 port
– Single 3.3V power supply
– BER better than 1E-15
– Up to 100m length
– Hot pluggable
– RoHS compliant
– SFF-8636 compliant I2 C management interface


FAQ

Q1.What can you buy from us?
      A:Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, Access
      Point, etc.
Q2.How about the delivery date?
      A:It usually takes 3-5 working days. For specific models, please contact us to check the stock. In the end,
      the actual consultation shall prevail.We will do our best to deliver as soon as possible.
Q3.What's your warranty terms?
      A: We supply 12 months warranty time.
Q4.How about the Shipping Method?
      A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words,
      we could do any shipments that you wanted.
Q5.Can I get some samples?
      A:Yes, sample order is available for quality check and market test. You only need to pay the sample cost
      and express cost.
Q6.What are your core strengths?
      A:First-hand supply, Original and new products with the favorable price and perfect after-sales.
