QSFP LSZH Mellanox AOC Active Optical Cable MFA1A00-C050 100GbE 50m new and original

Product Details:

Brand Name: Mellanox
Model Number: MFA1A00-C050
Document: MFA1A00-xxxx.pdf

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: outer box
Payment Terms: T/T
Supply Ability: Supply by project/batch
Get Best Price Contact Now

Detail Information

Availability: Stock Warranty: 1 Year
Condition: New And Original Lead Time: According To Stock
Technology: Ethernet Length: 5M
Supply Voltage: -0.3-3.6 Data Input Voltage: -0.3-4.465
Highlight:

LSZH Mellanox AOC

,

Mellanox AOC MFA1A00-C005

,

100GbE sfp28 aoc

Product Description

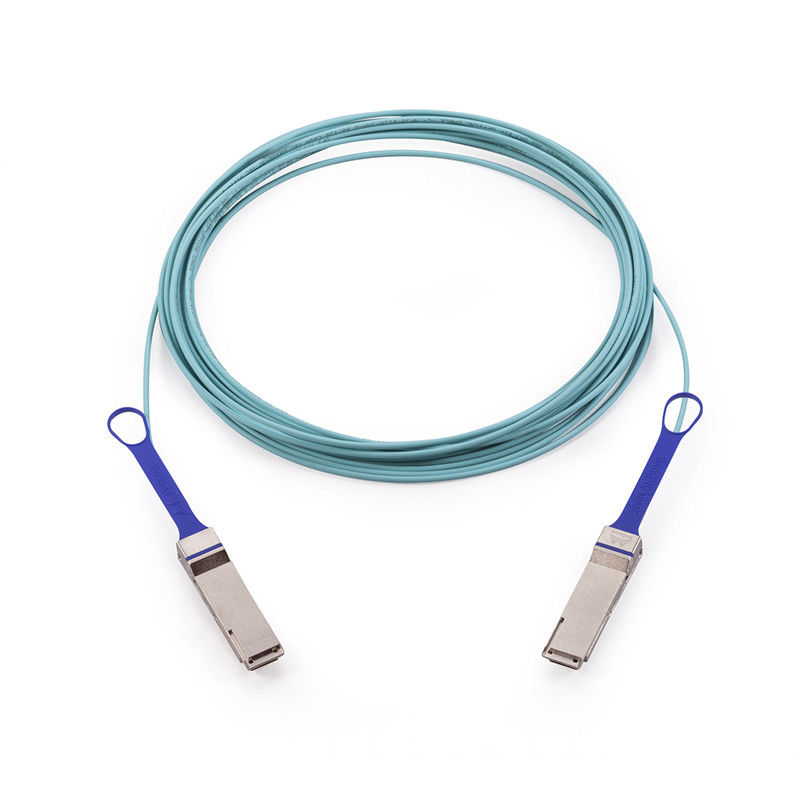

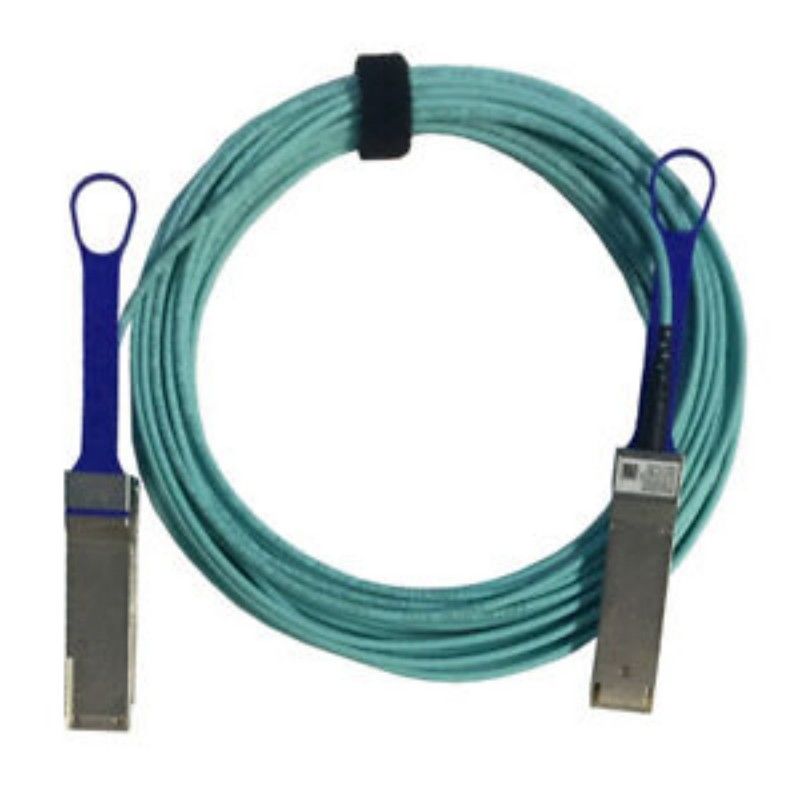

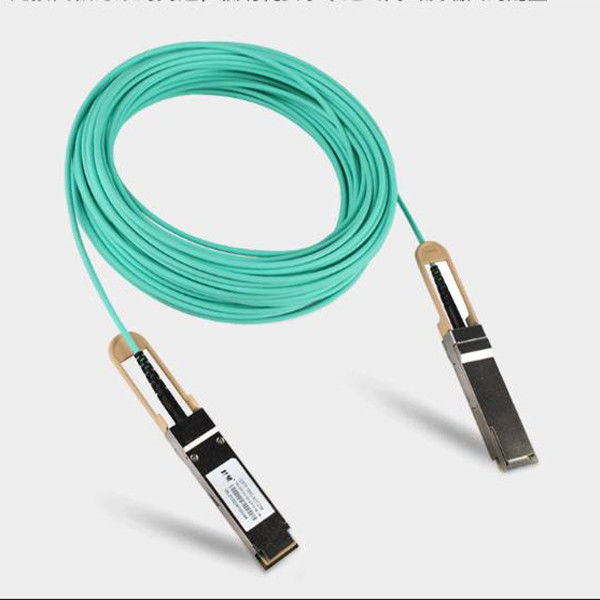

NVIDIA MFA1A00-C050 100Gb/s QSFP28 Active Optical Cable

1. Product Overview

The NVIDIA® MFA1A00-C050 is a high-performance QSFP28 Active Optical Cable (AOC) designed for 100Gb/s Ethernet applications. This Optical Fiber Cable leverages VCSEL-based technology to deliver reliable, high-speed data transmission over multimode fiber (MMF), supporting distances of up to 50 meters. It is an ideal solution for data centers and high-performance computing environments requiring high bandwidth, low latency, and low power consumption.

2. Key Characteristics

  • Data rate up to 100Gb/s per cable
  • Hot-pluggable QSFP28 form factor
  • Low power consumption: 2.2W typical per end (with retiming)
  • Digital Diagnostic Monitoring (DDM) via I²C
  • RoHS compliant and LSZH jacket
  • Programmable Tx equalization and Rx output settings

3. Technology & Standards

The MFA1A00-C050 complies with SFF-8665 and SFF-8636 standards. It supports 100GBASE-SR4 Ethernet and is interoperable with InfiniBand EDR systems. The cable uses four 25.78 Gb/s lanes with optional retiming for signal integrity.

4. Working Principle

The AOC converts electrical signals into optical signals via VCSEL transmitters, transmits light over multimode fiber, and converts back to electrical signals at the receiving end. Integrated signal retiming and equalization ensure low bit error rate (BER < 10⁻¹⁵) over extended distances.

5. Applications

  • Data center spine-leaf architectures
  • High-performance computing clusters
  • Cloud infrastructure and hyperscale networking
  • Storage area networks (SANs)
  • AI and machine learning workloads

6. Specifications & Selection Guide

Parameter Value
Data Rate 100 Gb/s
Interface QSFP28
Cable Type Active Optical Cable (AOC)
Length 50 m
Fiber Type Multimode (MMF)
Power Consumption 2.2 W (typical per end)
Operating Temperature 0°C to 70°C

7. Advantages

  • Lower latency and higher reliability compared to passive fiber cables
  • Better signal integrity over longer distances than copper DACs
  • Hot-pluggable design for easy deployment and maintenance
  • Comprehensive DDM support for real-time monitoring

8. Service & Support

We offer 24/7 technical support, worldwide shipping, and a full warranty. All products are tested and certified for compatibility and performance.

9. FAQ

Q: Is this cable compatible with 100GbE switches?
A: Yes, the MFA1A00-C050 is designed for 100GbE Ethernet systems.

Q: What is the maximum distance supported?
A: This model supports up to 50 meters over multimode fiber.

Q: Does it support digital diagnostics?
A: Yes, it includes full DDM support per SFF-8636.

10. Precautions

  • Do not bend below 30 mm radius
  • Operate within specified temperature and humidity ranges
  • Ensure compatible QSFP28 ports and firmware
  • Follow ESD precautions during handling
