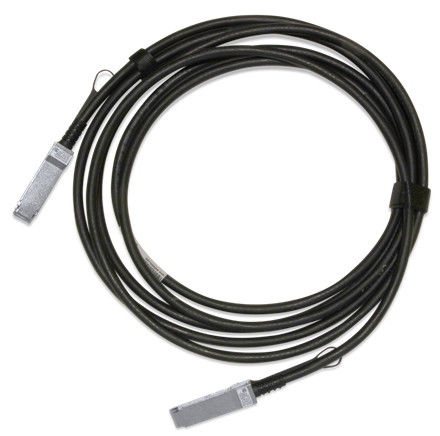

IB EDR Mellanox 5m DAC Cable MCP1600-E005E26 MCP1600-E0xxxE 100Gb/S QSFP28

IB EDR Mellanox 5m DAC Cable MCP1600-E005E26 MCP1600-E0xxxE 100Gb/S QSFP28

Mellanox 5m dac cable

QSFP28 5m dac cable


Brand Name:


Model Number:



Request A Quote
Product Details
New And Original
Warranty Time:
1 Year
Max Speed:
Data Rate:
Supply Voltage:
Data Input Voltage:
Control Input Voltage:
Damage Threshold:
Product Description

 MCP1600-E0xxE 100Gb/s QSFP28 DAC Cable Product Specifications

MCP1600-E0xxxE DAC (Direct Attach Copper) cables are high speed, cost-effective alternatives to fiber optics in 100Gb/s InfiniBand EDR applications.

The QSFP28 passive copper cable[1] contains four high-speed copper pairs, each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information, which can be read by the host system.

NVIDIA unique-quality cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.


LinkX cables and transceivers are often used to link top-of-rack switches downwards to network adapters in NVIDIA GPUs and CPU servers, and storage and/or upwards in switch-to-switch applications throughout the network infrastructure.


The latest rapid growth in data center traffic and cloud computing has resulted in tremendous increases in machine-to-machine traffic due to rapid adoption of server virtualization, software-defined networks (SDNs), and in-cloud computing. Now add the massive bandwidth requirements for networking terabytes of data for training Artificial Intelligence (AI) machine learning (ML) GPU-based systems.


This is driving massive demands for high-bandwidth and low-latency networks. High-speed DAC and AOC cables and optical transceiver interconnects are playing a critical role in these modern data center technologies.


NVIDIA® LinkX® Ethernet DAC cables are the lowest-cost way to create high-speed 100G–400G links in Ethernet switching networks and for NVIDIA GPU-based systems. DACs are widely used in data centers to connect servers and GPU compute systems to the top-of-rack (TOR) switches and link spine-to-superspine switches inside racks over short cable lengths.


IBTA InfiniBand EDR compliant
Up to 100Gb/s data rate
SFF-8665 compliant
Operating case temperature 0-70C
Single 3.3V supply voltage
Bit Error Rate (BER) better than 1E-15 with InfiniBand HDR systems
Hot pluggable
RoHS compliant
LSZH (Low Smoke Zero Halogen) jacket
LF (Lead Free) HF (Halogen Free) PCB
SFF-8636 compliant I2C management interface

Absolute Maximum Specifications

Absolute maximum ratings are those beyond which the device may be damaged.

Between the operational specifications and absolute maximum ratings, prolonged operation is not intended and permanent device degradation may occur.

Environmental Specifications

This table shows the environmental specifications for the product.

Storage temperature -40 85 °C

Operational Specifications

This section shows the range of values for normal operation.

Supply voltage (Vcc) 3.135 3.3 3.465 V
Power consumption --- --- 0.1 W
Operating case temperature 0   70 °C
Operating relative humidity 5   85 %

Electrical Specifications

Characteristic Impedance 90 100 110 Ω
Propagation Delay --- --- 4.5 ns/m Informative


IB EDR Mellanox 5m DAC Cable MCP1600-E005E26 MCP1600-E0xxxE 100Gb/S QSFP28 0
