100Gb IB EDR Mellanox DAC Cable MCP1600-E003E26 MCP1600-E0xxxE QSFP28 3m
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCP1600-E003E26 |
| Document: | PB_MCP1600-E0xxEyy_100Gbps_...AC.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Technology: | InfiniBand |
|---|---|---|---|
| Max Speed: | EDR | Data Rate: | 100Gb/s |
| Operating Relative Humidity: | 5~85% | Operating Case Temperature: | 0~70°C |
| Propagation Delay: | 4.5ns/m | Storage Temperature: | -40~85°C |
| Highlight: | EDR Mellanox DAC Cable,1m Mellanox DAC Cable,1m dac sfp cable |
||
Product Description

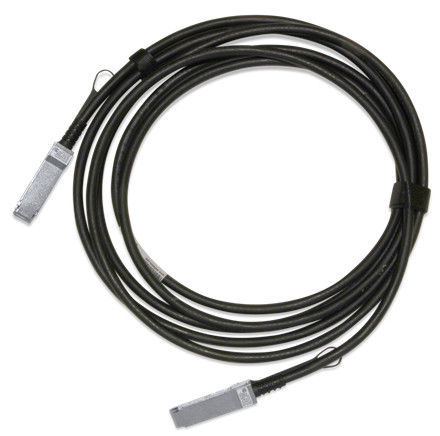

MCP1600-E003E26 100Gb/s QSFP28 Direct Attach Copper Cable
1. Product Overview
The Mellanox MCP1600-E003E26 is a high-bandwidth passive Direct Attach Copper (DAC) cable solution designed for 100Gb/s EDR InfiniBand and Ethernet applications. This 3-meter passive fiber cable delivers a reliable, power-efficient connectivity option for short-range data center links. Engineered with superior signal integrity and durability, it provides an optimal balance of performance and cost-effectiveness for high-density network deployments.
2. Key Characteristics
- Supports data rates up to 100Gb/s (4×25Gb/s lanes)
- Ultra-low power consumption: <0.1W
- Hot-swappable QSFP28 form factor
- Compliant with SFF-8685, SFF-8636, and RoHS standards
- LSZH (Low Smoke Zero Halogen) jacket for improved safety
- Lead-free and halogen-free PCB construction
- 26AWG thickness for optimal signal integrity over 3m distance
3. Technology & Standards
This high-performance passive fiber cable adheres to multiple industry standards including SFF-8685 for mechanical specifications and SFF-8636 for I²C management interface. It supports both InfiniBand EDR and Ethernet protocols, ensuring broad compatibility with Mellanox switches and adapters as well as third-party hardware. The cable incorporates four shielded twinaxial copper pairs, each capable of 25 Gb/s data transmission.
4. Working Principle
The MCP1600-E003E26 functions as a passive electrical interconnect between QSFP28 ports, transmitting signals directly through copper conductors without requiring signal retiming or amplification. The integrated EEPROM stores essential product information, accessible via the host system's I²C interface, enabling plug-and-play functionality and automatic system recognition.
5. Applications
Ideal for modern data centers, high-performance computing (HPC) clusters, and enterprise network environments. Commonly deployed for:
- Top-of-rack (ToR) to server connections
- Switch-to-switch interconnects
- Storage area networks (SANs) and network-attached storage
- High-frequency trading infrastructure
- AI and machine learning clusters
6. Specifications
| Parameter | Value |
|---|---|
| Data Rate | 100 Gb/s |
| Length | 3 m |
| Cable Gauge | 26 AWG |
| Connector Type | QSFP28 |
| Operating Temperature | 0°C to 70°C |
| Power Consumption | < 0.1 W |

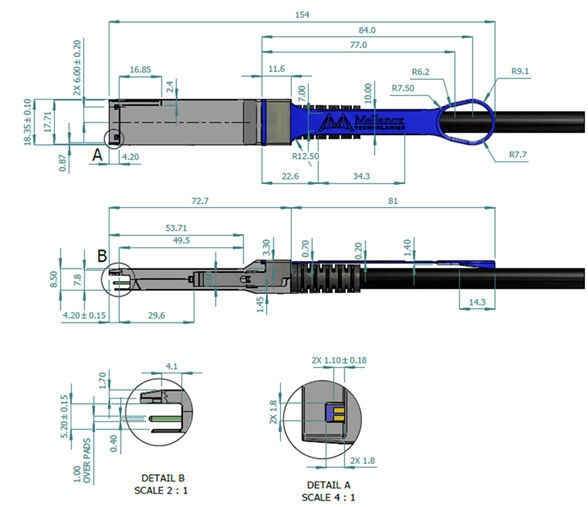

| Minimum Bend Radius | 94mm (repetitive), 47mm (single) |
| Bit Error Rate | < 1E-15 with Mellanox systems |
7. Advantages
- Significantly lower latency and power consumption compared to active optical cables
- Superior durability with optimized bend radius performance
- Excellent signal integrity with BER better than 1E-15
- Cost-effective solution for short-reach applications up to 3 meters
- Rigorous production testing ensures reliable out-of-box performance
8. Service & Support
All Mellanox passive copper cable products include a 1-year limited hardware warranty. We offer global shipping with typically 3-5 day delivery, 24/7 technical support, and flexible OEM/ODM services. Volume pricing available for large deployments and enterprise contracts.
9. Frequently Asked Questions
Q: Is the MCP1600-E003E26 compatible with 100GbE Ethernet switches?
A: Yes, this passive fiber cable is compatible with 100GbE and InfiniBand EDR switches supporting QSFP28 ports.
Q: What is the maximum effective distance for this DAC cable?
A: This passive direct attach cable is optimized for reliable performance at distances up to 3 meters.
Q: Does this cable require external power or cooling?
A: No, this is a passive direct attach cable that draws minimal power from the host port and requires no active cooling.
Q: Can I use this cable for non-Mellanox equipment?
A: While optimized for Mellanox systems, this passive copper cable is generally compatible with other vendors' QSFP28 ports, though we recommend verifying compatibility specifications.
10. Precautions
- Do not exceed the minimum bend radius of 10x cable diameter near connectors
- Ensure operating temperature (0°C to 70°C) and humidity (5% to 85%) remain within specified ranges
- Verify compatibility with host hardware specifications before installation
- Avoid sharp bends or twists during installation to prevent internal damage
- Use proper ESD precautions when handling
