16107 Network Switch Cable Extreme Stacking Cable 1.5M 1.0 Count
Product Details:
| Brand Name: | Extreme |
| Model Number: | 16107（Stacking Cable, 1.5M） |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Warranty Time: | 1 Year |
|---|---|---|---|
| Lead Time: | According To Stock | Products Status: Stock: | Stock |
| Size: | 5 X 5 X 2 Cm; 2.72ounce | Maker: | Extreme Networks Inc. |
| Connector Male And Female: | Male-to-Male | Unit Count: | 1.0 Count |
| Highlight: | 16107 network switch cable,1.5M network switch cable,1.5M extreme stacking cable |
||
Product Description

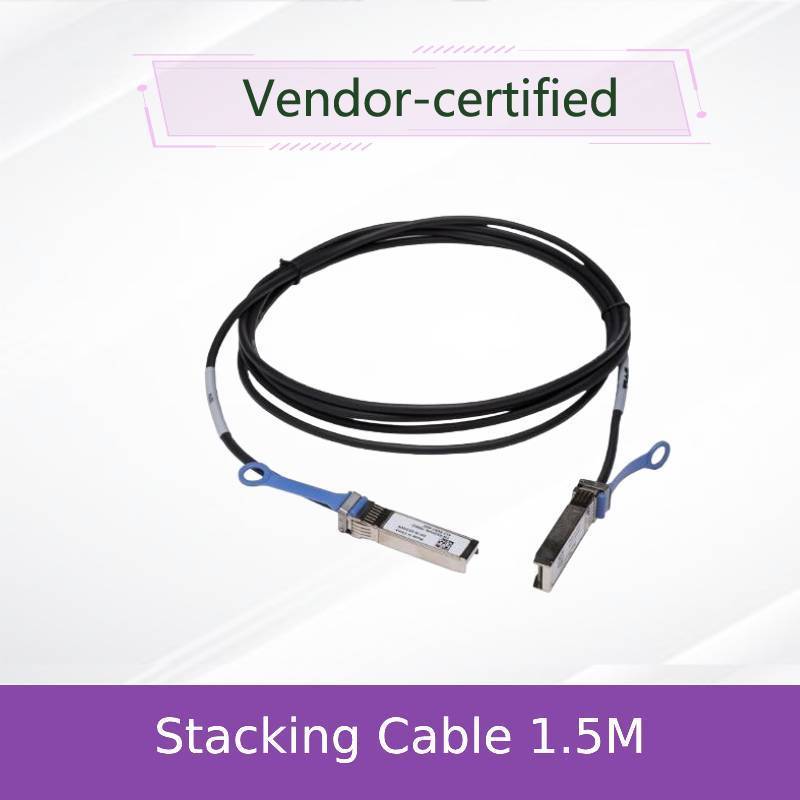

- Data transmission cable, cable length -- 1.5m, compatibility Extreme network Summit 400 – 24T,
- Ethernet switch extreme network ,Summit 400 – 24P
- Ethernet switch extreme network ,Summit 400 – 48T
- Conductor - copper
The X690 can handle a range of high bandwidth applications, including high-density 10Gb top of rack aggregation, as well as spine/leaf deployments as an edge leaf switch. With both copper and fiber high-density 10Gb port options, the X690 can flexibly accommodate a variety of data center needs. It can also flexibly support uplinks at 25Gb, 40Gb, 50Gb or even 100Gb rates. A range of SFP+ and QSFP+ optical transceivers are available to support 1Gb, 10Gb and 40Gb Ethernet, while QSFP28 optical transceivers can be used to support 25Gb, 50Gb and 100Gb Ethernet applications.
The ExtremeSwitching X690 family supports sophisticated, intelligent Layer 2 switching, as well as Layer 3 IPv4/IPv6 routing, including policy-based switching and routing. The X690 simplifies network operation with the ExtremeXOS modular operating system, which is used across a wide range of ExtremeSwitching networking products. The high availability ExtremeXOS operating system reduces operational overhead through the use of a single OS across the network.
| Model | X690-48x-2q-4c | X690-48t-2q-4c |
|---|---|---|
| X690-48t-2q-4c | •48 1Gb/10Gb SFP+ ports • 2 10Gb/40Gb QSFP+ ports •4 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports • 1 x Serial console port RJ-45 • 1 x 10/100/1000BASE-T out-of-band management port • Micro-USB Type A storage port QSFP Port Configurations Support: •4 10Gb / 40Gb QSFP+ ports and 2 10Gb / 25Gb / 40Gb / 50Gb / 100Gb QSFP28 ports or •4 10Gb / 25Gb / 40Gb / 50Gb / 100Gb QSFP28 ports (two QSFP ports inactive) | •48 1Gb/10Gb 10GBASE-T ports • 2 10Gb/40Gb QSFP+ ports •4 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports • 1 x Serial console port RJ-45 • 1 x 10/100/1000BASE-T out-of-band management port • Micro-USB Type A storage port QSFP Port Configurations Support: •4 10Gb / 40Gb QSFP+ ports and 2 10Gb / 25Gb / 40Gb / 50Gb / 100Gb QSFP28 ports or •4 10Gb / 25Gb / 40Gb / 50G |
| Power Supplies | • Modular 770W AC power supply (up to two PSUs) • Modular 1100W DC power supply (up to two PSUs) • Front-Back and Back-Front airflow options | Modular 770W AC power supply (up to two PSUs) • Modular 1100W DC power supply (up to two PSUs) • Front-Back and Back-Front airflow options |
| Fan Modules | • 6 fan modules • Front-Back and Back-Front airflow options | • 6 fan modules • Front-Back and Back-Front airflow options |
| Dimensions | 17.4in W / 19.2in D / 1.7in H (44.1cm / 48.8cm / 4.3cm) | 17.4in W / 19.2in D / 1.7in H (44.1cm / 48.8cm / 4.3cm) |
| Performance | Line rate 1.76Tbps Switching Capacity Average Latency: 800 ns | Line rate 1.76Tbps Switching Capacity Average Latency: 2.3 µsec |
| CPU Memory | 2.4GHz Quad core CPU • 8GB DDR3 ECC memory • 32GB SSD memory | • 2.4GHz Quad core CPU • 8GB DDR3 ECC memory • 32GB SSD memory |
| Packet Buffers | 12MB | 12MB |
| Operating Conditions | • 0º - 45ºC operation • 10% to 95% relative humidity, non-condensing • 0 - 3000 meters altitude • Shock (half sine): 98 m/s2 (10 G), 11 ms, 9 shocks • Random vibration: 3 to 500 Hz at 1.5 G rms | • 0º - 45ºC operation • 10% to 95% relative humidity, non-condensing • 0 - 3000 meters altitude • Shock (half sine): 98 m/s2 (10 G), 11 ms, 9 shocks • Random vibration: 3 to 500 Hz at 1.5 G rms |
Q1.What can you buy from us?
A:Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, Access Point, etc.
Q2.How about the delivery date?
A:It usually takes 3-5 working days. For specific models, please contact us to check the stock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3.What's your warranty terms?
A: We supply 12 months warranty time.
Q4.How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5.Can I get some samples?
A:Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6.What are your core strengths?
A:First-hand supply, Original and new products with the favorable price and perfect after-sales service.
