Brand Name:
Mellanox
Model Number:
MFS1S50-H010V
CONTACT US
Mellanox® MFS1S50-HxxxE is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser), costeffective 200Gb/s to 2 x 100Gb/s active optical splitter cable (AOC) designed for use in 200Gb/s InfiniBand HDR (High Data Rate) systems.
The MFS1S50-HxxxE cable is compliant with SFF-8665 for the QSFP56 pluggable solution. It provides connectivity between system units with a 200Gb/s connector on one side and two separate 100Gb/s connectors on the other side, such as a switch and two servers. The cable connects data signals from each of the 4 MMF (Multi Mode Fiber) pairs on the single QSFP56 end to the dual pair of each of the QSFP56 multiport ends. Each QSFP56 end of the cable comprises an EEPROM providing product and status monitoring information, which can be read by the host system.
Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
Mellanox’s unique quality active fiber cable solutions provide power-efficient connectivity for data center interconnects. They enable higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers.

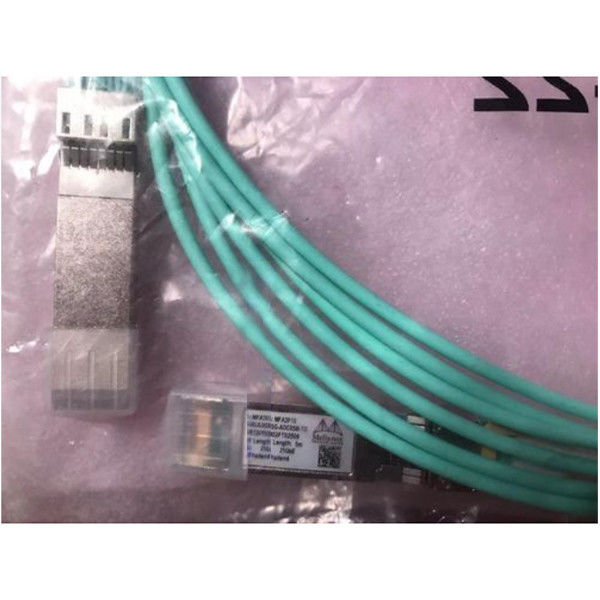

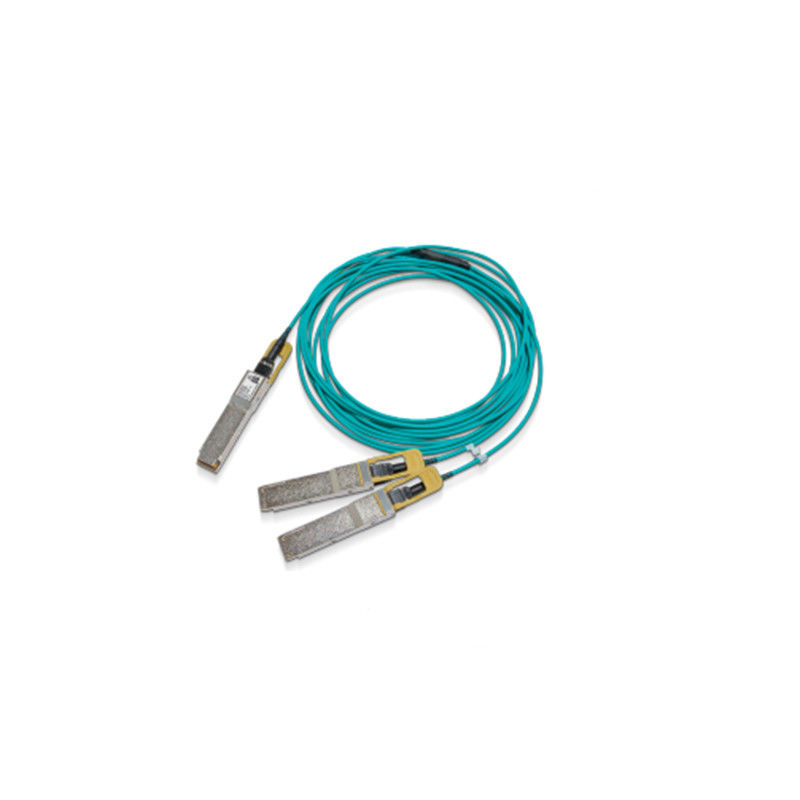

NVIDIA® MFS1S50 is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser), cost-effective 200Gb/s to 2 x 100Gb/s active optical splitter cable (AOC) designed for use in 200Gb/s InfiniBand (IB) HDR (High Data Rate) systems.
The MFS1S50 cable is compliant with SFF-8665 for the QSFP56 pluggable solution. It provides connectivity between system units with a 200Gb/s connector on one side and two separate 100Gb/s connectors on the other side, such as a switch and two servers. The cable connects data signals from each of the 4 MMF (Multi Mode Fiber) pairs on the single QSFP56 end to the dual pair of each of the QSFP56 multiport ends. Each QSFP56 end of the cable comprises an EEPROM providing product and status monitoring information, which can be read by the host system.
NVIDIA's unique-quality cable solutions provide power-efficient connectivity for data center interconnects. It enables higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers.
Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
Ordering Information
|
Ordering Part Number
|
Description
|
|---|---|
| MFS1S50-H003V | NVIDIA active optical cable, 200Gb/s to 2x100Gb/s IB HDR, QSFP56 to 2xQSFP56, 3m |
| MFS1S50-H005V | NVIDIA active optical cable, 200Gb/s to 2x100Gb/s IB HDR, QSFP56 to 2xQSFP56, 5m |
| MFS1S50-H010V | NVIDIA active optical cable, 200Gb/s to 2x100Gb/s IB HDR, QSFP56 to 2xQSFP56, 10m |
| MFS1S50-H015V | NVIDIA active optical cable, 200Gb/s to 2x100Gb/s IB HDR, QSFP56 to 2xQSFP56, 15m |
| MFS1S50-H020V | NVIDIA active optical cable, 200Gb/s to 2x100Gb/s IB HDR, QSFP56 to 2xQSFP56, 20m |
| MFS1S50-H030V | NVIDIA active optical cable, 200Gb/s to 2x100Gb/s IB HDR, QSFP56 to 2xQSFP56, 30m |
Absolute maximum ratings are those beyond which damage to the device may occur.
Prolonged operation between the operational specifications and absolute maximum ratings is not intended and may cause permanent device degradation.
|
Parameter
|
Min
|
Max
|
Units
|
|---|---|---|---|
| Supply voltage | -0.3 | 3.6 | V |
| Data input voltage | -0.3 | 3.465 | V |
| Control input voltage | -0.3 | 4.0 | V |
| Damage Threshold | 3.4 | --- | dBm |
This table shows the environmental specifications for the product.
|
Parameter
|
Min
|
Max
|
Units
|
|---|---|---|---|
| Storage temperature | -40 | 85 | °C |
This section shows the range of values for normal operation. The host board power supply filtering should be designed as recommended in the SFF Committee Spec.
|
Parameter
|
Min
|
Typ
|
Max
|
Units
|
Notes
|
|---|---|---|---|---|---|
| Supply voltage (Vcc) | 3.135 | 3.3 | 3.465 | V | --- |
| Power consumption 200Gb/s end | --- | 4.5 | 5.0 | W | --- |
| Power consumption 100Gb/s end | --- | 3.0 | 3.5 | W | --- |
| Supply noise tolerance (10Hz – 10MHz) | 66 | --- | --- | mVpp | --- |
| Operating case temperature | 0 | --- | 70 | °C | --- |
| Operating relative humidity | 5 | --- | 85 | % | --- |
|
Parameter (per lane)
|
Min
|
Typ
|
Max
|
Units
|
|---|---|---|---|---|
| Signaling rate | -100 ppm | 53.125 | +100 ppm | GBd |
| Differential data input swing at TP1a | TBD | --- | 900 | mVpp |
| Differential data output swing at TP4 | --- | --- | 900 | mVpp |
| Near-end ESMW | 0.265 | --- | --- | UI |
| Near-end output eye height | 70 | --- | --- | mVpp |
| Output transition time, 20% to 80% | 9.5 | --- | --- | ps |
Notes:
This product is compatible with ESD levels in typical data center operating environments and certified in accordance with the standards listed in the Regulatory Compliance Section. The product is shipped with protective caps on all connectors to protect it during shipping. In normal handling and operation of high-speed cables and optical transceivers, ESD is of concern during insertion into the QSFP cage of the server/switch. Hence, standard ESD handling precautions must be observed. These include use of grounded wrist/shoe straps and ESD floor wherever a cable/transceiver is extracted/inserted. Electrostatic discharges to the exterior of the host equipment chassis after installation are subject to system level ESD requirements.
The transceiver can be damaged by exposure to current surges and over voltage events. Take care to restrict exposure to the conditions defined in Absolute Maximum Ratings. Observe normal handling precautions for electrostatic discharge-sensitive devices. The transceiver is shipped with dust caps on both the electrical and the optical port. The cap on the optical port should always be in place when there is no fiber cable connected. The optical connector has a recessed connector surface which is exposed whenever it has no cable nor cap.
Prior to insertion of the fiber cable, clean the cable connector to prevent contamination from it. The dust cap ensures that the optics remain clean and no additional cleaning should be needed. In the event of contamination, standard cleaning tools and methods should be used. Liquids must not be applied.
For configurations tested with the AOCs please refer to the system level product (SLP) qualification report.
The AOC supports rate select, which is controlled by writing to registers 0x57-0x58. Two bits are assigned for each receiver lane in byte 0x57 (87dec, Rxn_Rate_Select) and two bits for each transmitter lane in byte 0x58 (88dec, Txn_Rate_Select) to specify up to four bitrates, as defined in SFF-8636 Rev 2.9.2 Table 6-5 XN_RATE_SELECT ENCODINGS. All four lanes are required to have the same rate select value.
The below table specifies the rate for each rate select setting.
|
Rate Select Value
|
Operating Rate (GBd)
|
|---|---|
| 01 | 10.31250 NRZ |
| 10 | 25.78125 NRZ |
| 11 | 26.56250 PAM4 |
|
Parameter |
Value | Units | |
|---|---|---|---|
| Diameter | 3 +/-0.2 | mm | |
| Minimum bend radius | 30 | mm | |
| Length tolerance | length < 5 m | +300 /-0 | mm |
| 5 m ≤ length < 50 m | +500 / -0 | ||
| 50 m ≤ length | +1000 /-0 | ||
| Cable color | Aqua | --- | |
Benefits
Thin fiber cable enables maximum air flow cooling
Light weight enables dense fiber runs with minimal support
No MPO optical connectors increases reliability and reduces maintenance
Designed and manufactured by LinkX Optics
100 percent factory tested in live switching and GPU-based systems
Designed to go beyond IEEE industry BER standards for reliable operation under harsh operating conditions
High-Speed Interconnects
The latest rapid growth in data center traffic and cloud computing has resulted in tremendous increases in machine-to-machine traffic due to rapid adoption of server virtualization, software-defined networks (SDNs), and in-cloud computing. Now add the massive bandwidth requirements for networking terabytes of data for training Artificial Intelligence (AI) machine learning (ML) GPU-based systems.
