Mellanox cable High Data Rate QSFP56 Mellanox cable AOC Active Optical Cable MFS1S00-H010V mellanox infiniband cables
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H010V |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Data Rate: | Up To 200Gb/s | Connector Type: | QSFP56 |
| Cable Color: | Aqua | Minimum Bend Radius: | 30mm |
| Type: | Mellanox Cable | HDR: | 26.56250 PAM4 |
| Model: | MFS1S00-H010V | ||
| Highlight: | High Data Rate Mellanox AOC,Mellanox AOC MFS1S00-H010V,QSFP56 aoc active optical cable |
||
Product Description

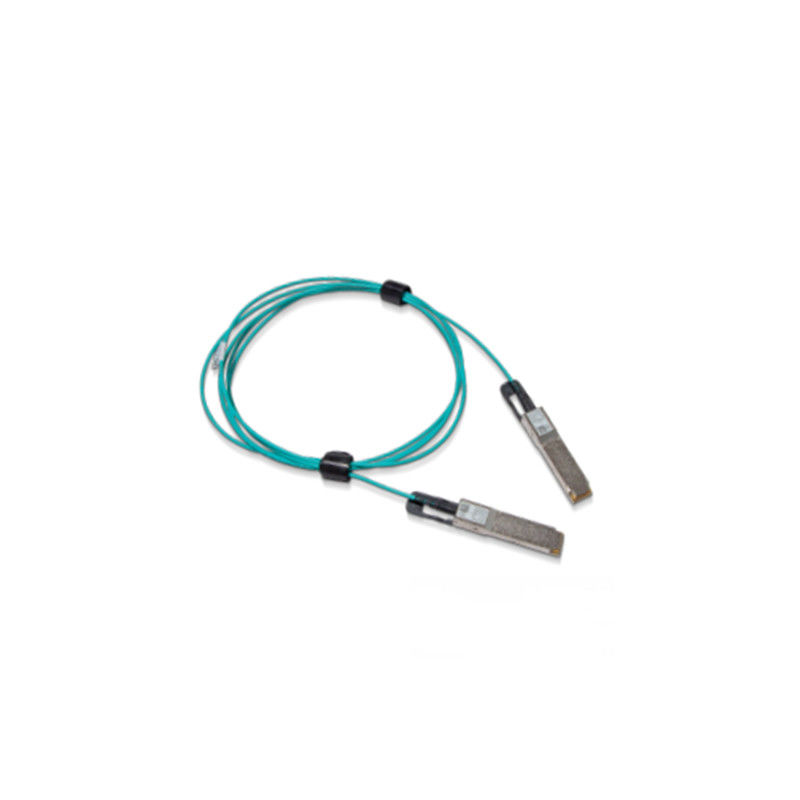

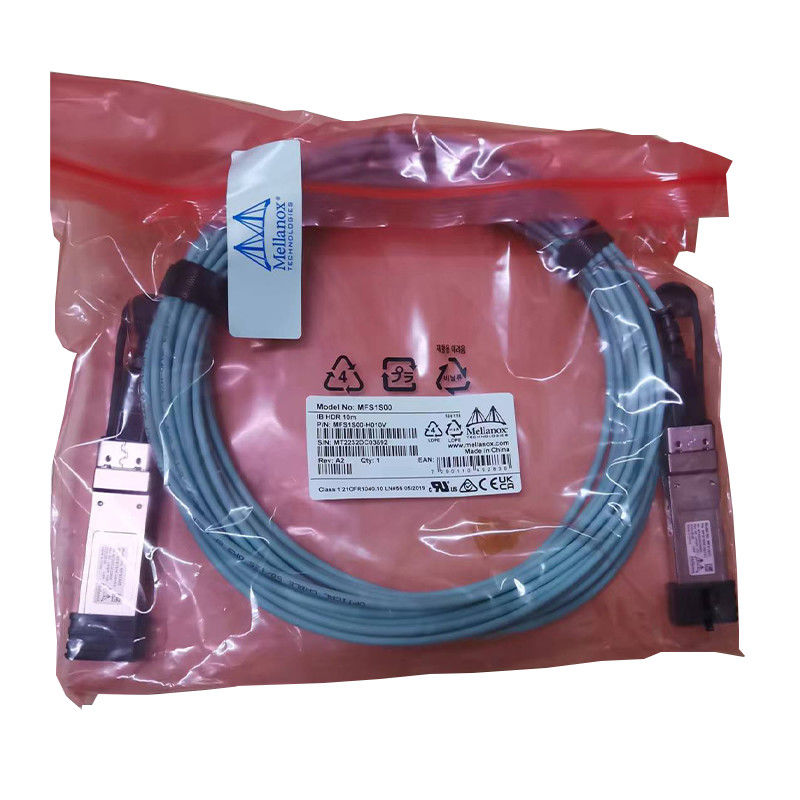

MFS1S00-H010V 200Gb/s QSFP56 Active Optical Cable (AOC)
The NVIDIA® MFS1S00-H010V is a high-performance 200Gb/s QSFP56 Active Optical Cable designed for data centers requiring high bandwidth, low latency, and extended reach. This fiber optic cable supports both InfiniBand HDR and 200 Gigabit Ethernet, delivering reliable and power-efficient connectivity for modern data-intensive applications.
Key Features
- Supports 200Gb/s data rate with 4x50Gb/s PAM4 modulation
- Hot-pluggable QSFP56 form factor with SFF-8665 compliance
- Low power consumption: 5.0W typical per end
- Reach up to 100 meters over multi-mode fiber (MMF)
- Digital Diagnostic Monitoring (DDM) with real-time health checks
- RoHS compliant and ESD protected
Technology
This Active Optical Cable utilizes VCSEL-based transceivers and advanced PAM4 signaling. It complies with SFF-8636 for management and supports programmable equalization, output amplitude, and clock data recovery (CDR) per lane.
Working Principle
The cable converts electrical signals into optical signals via integrated VCSEL transmitters. These signals are transmitted over multi-mode fiber and converted back to electrical signals at the receiving end, ensuring high-speed data transfer with minimal signal degradation.
Applications
- 200G InfiniBand HDR clusters
- High-performance computing (HPC) and AI workloads
- Data center spine-leaf architectures
- Cloud infrastructure and enterprise networking
- Interconnecting SN3700 and SN4600 series switches
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 200 Gb/s |
| Cable Type | Active Optical Cable (AOC) |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Connector | QSFP56 |
| Length | 10m |
| Power Consumption | 5.0W (typical per end) |
| Operating Temperature | 0°C to 70°C |
| Compliance | SFF-8665, SFF-8636, RoHS |
Advantages
- Lower latency and longer reach compared to passive copper cables
- Higher port density and better airflow in rack layouts
- Retiming capability per lane ensures signal integrity
- Built-in DDM for real-time monitoring and troubleshooting
Service & Support
We offer 24/7 technical support, worldwide shipping, and a full warranty. Our team provides integration assistance and custom configuration upon request.
FAQ
Q: What is the maximum length supported?
A: This optical fiber cable supports lengths up to 100m.
Q: Is it compatible with 100GbE switches?
A: Yes, it supports backward compatibility with 100GbE using appropriate rate selection.
Q: Does it require external power?
A: No, it is powered through the QSFP56 port.
Precautions
- Avoid bending the cable beyond a 30mm radius.
- Ensure ESD precautions during handling and installation.
- Use only in approved operating temperatures and environments.
