Nvidia Mfs1s00-Hxxxv 200GB/S Qsfp56 Mmf Aoc Mfs1s00-H010e Active Optical Cable, up to 200gbps, Qsfp56 to Qsfp56
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H010E |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Warranty: | 1 Year | Condition: | New And Original |
|---|---|---|---|
| Data Rate: | Up To 200Gb/s | Length: | 10m |
| – RoHS Compliant: | Yes | Power: | 3.3V |
| Modulation: | 4x 50Gb/s PAM4 | InfiniBand: | HDR |
| Highlight: | IB HDR Mellanox AOC,QSFP56 Mellanox AOC,AOC MFS1S00-H010E |
||
Product Description

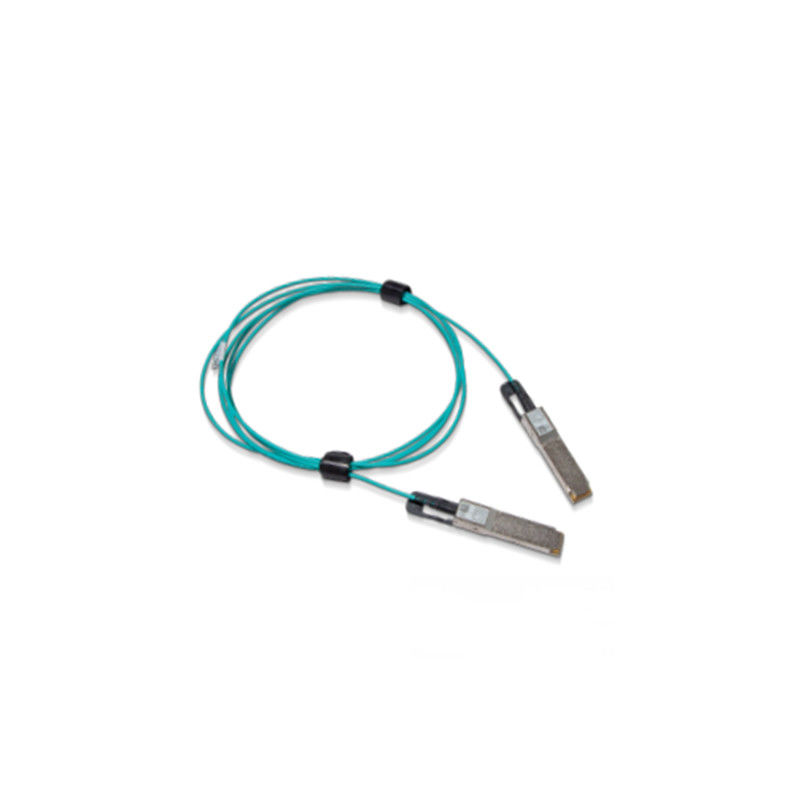

MFS1S00-H010E 200Gb/s QSFP56 Active Optical Cable
1. Product Overview
The MFS1S00-H010E is a high-performance 200Gb/s QSFP56 Active Optical Cable (AOC) designed for next-generation data center interconnects. This Optical Fiber Cable leverages VCSEL-based technology to deliver exceptional bandwidth, low latency, and extended reach compared to passive copper solutions. It is ideal for high-speed networking environments requiring reliable, hot-pluggable connectivity with minimal power consumption.
2. Key Characteristics
- Supports 200Gb/s InfiniBand HDR and 200 Gigabit Ethernet
- 4x 50Gb/s PAM4 modulation per lane
- Hot-pluggable QSFP56 form factor
- Low power consumption: 5.0W typical per end
- Reach up to 100 meters with multi-mode fiber
- RoHS compliant and SFF-8636 management interface
3. Technology & Standards
The MFS1S00-H010E complies with industry standards including SFF-8665, SFF-8636, and InfiniBand HDR. It features programmable Rx/Tx equalization, Digital Diagnostic Monitoring (DDM), and supports both NRZ and PAM4 modulation schemes. This passive fiber cable alternative offers enhanced signal integrity and error-free performance.
4. Working Principle
The AOC converts electrical signals into optical signals using VCSEL lasers, transmitting data over multi-mode fiber. Each end contains four transceivers operating at 50Gb/s. The built-in retiming mechanism ensures signal clarity over extended distances, making it superior to traditional Optical Fiber Cable solutions.
5. Applications
- 200G InfiniBand HDR clusters
- High-performance computing (HPC) environments
- Data center spine-leaf architectures
- Cloud infrastructure and enterprise networking
- AI and machine learning workloads
6. Specifications & Selection Guide
| Parameter | Value |
|---|---|
| Data Rate | 200Gb/s |
| Interface | QSFP56 |
| Cable Type | Multi-mode AOC |
| Length | 10m |
| Power Consumption | 5.0W (typical) |
| Operating Temperature | 0°C to 70°C |
7. Advantages
- Higher bandwidth density and lower latency than DAC cables
- Longer reach than passive copper solutions
- Lower power consumption vs. competitive AOCs
- Robust diagnostic capabilities via I²C interface
- Hot-pluggable for easy deployment and maintenance
8. Service & Support
We offer 24/7 technical support, worldwide shipping, and a full warranty. Our professional team ensures timely delivery and post-sale consultation. Customized solutions and bulk orders are available.
9. FAQ
Q: What systems are compatible with the MFS1S00-H010E?
A: It is compatible with 200G InfiniBand HDR and 200G Ethernet switches such as NVIDIA SN3700 and SN4600.
Q: Can this AOC be used in high-temperature environments?
A: Yes, it operates reliably in case temperatures up to 70°C.
Q: Is the cable hot-pluggable?
A: Yes, it supports hot-plugging for easy installation and replacement.
10. Precautions
- Avoid bending radius below 30mm to prevent fiber damage
- Ensure ESD protection during handling and installation
- Use only in compliant Class 1 laser environments
- Verify host system compatibility before deployment
