AVB Ethernet Extreme Summit X440 G2 48p 10GE4 With ExtremeXOS Operating System 4 Via License
Product Details:
| Brand Name: | Extreme |
| Model Number: | 16535 X440-G2-48p-10GE4 |
| Document: | x440-g2-data-sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | Stock |
|---|---|---|---|
| Warranty Time: | 1 Year | Lead Time: | According To Stock |
| Maximum 10/100/1000 Base-T Ports: | 48 | Maximum Active 1Gb SFP Ports: | 8 (2 + 6 Combo) |
| Maximum 10Gb SFP+ Ports: | 4 Via License | Aggregated Switch Bandwidth: | 176 GBPS |
| Highlight: | 48p extreme summit x440,10GE4 extreme summit x440,48p extreme ethernet switch |
||
Product Description

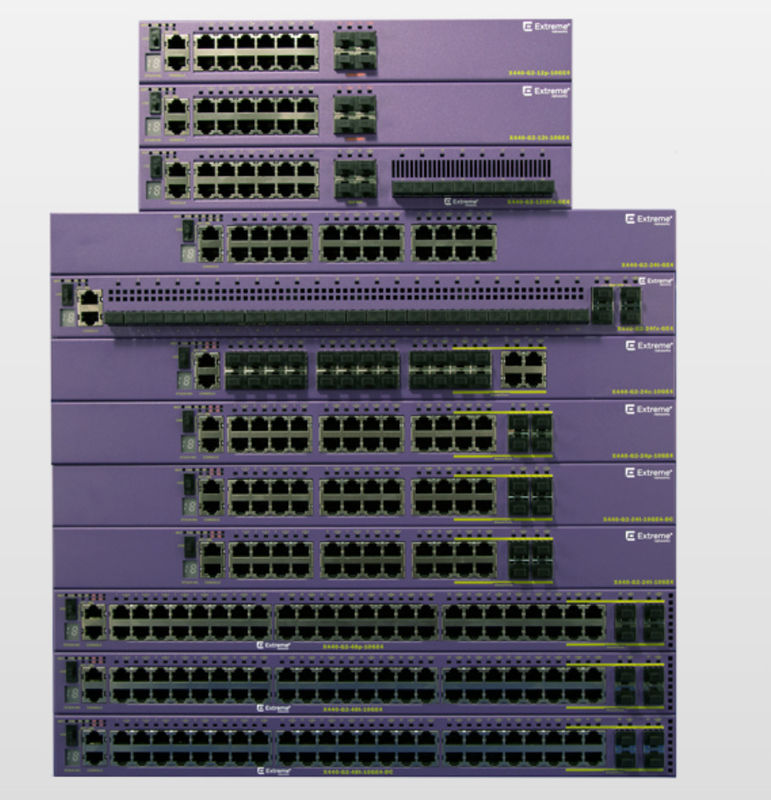

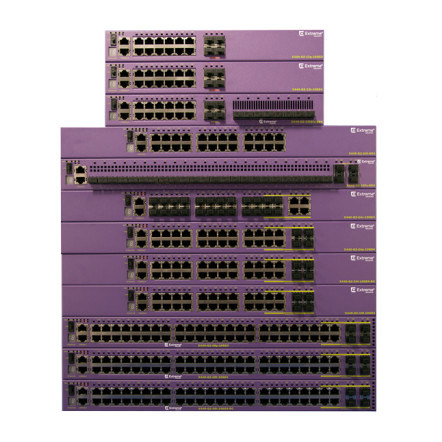

Extreme Networks X440-G2-48p-10GE4 | 48-Port Gigabit PoE+ Ethernet Switch
The Extreme Networks X440-G2-48p-10GE4 is a high-density, enterprise-grade PoE+ switch designed for demanding network environments. This powerful switch features 48 x 10/100/1000BASE-T PoE+ ports, 4 x 1GbE SFP ports upgradeable to 10GbE via software license, and comprehensive Layer 2/3 capabilities. Built on the robust ExtremeXOS operating system, it offers advanced features including full PoE+ support (30W per port), SummitStack-V stacking, and cloud management via ExtremeCloud™.
Key Features
- 48 x Gigabit Ethernet RJ-45 PoE+ ports (30W per port) + 4 x SFP uplink ports (upgradable to 10GbE)
- 740W total PoE budget with support for IEEE 802.3af/at devices
- ExtremeXOS OS with advanced security and management features
- Support for SummitStack-V technology (up to 8 switches)
- Role-based policy enforcement and cloud management via ExtremeCloud™
- Energy Efficient Ethernet (802.3az) for reduced power consumption
Technology & Standards
The X440-G2 series switches support a comprehensive range of IEEE standards including 802.3ab (1000BASE-T), 802.3z (1000BASE-X), 802.3ae (10GBASE-X), 802.3at (PoE+), and 802.3az (Energy Efficient Ethernet). These advanced switches also feature sophisticated security protocols, QoS mechanisms, and support for Audio Video Bridging (AVB) on select models, making them ideal for converged network environments.
How It Works
The X440-G2-48p-10GE4 operates at both Layer 2 and Layer 3, providing advanced routing, switching, and policy-based traffic management. It utilizes hardware-based forwarding engines to deliver low-latency performance with less than 4 microseconds latency for 64-byte packets. The switch supports advanced features like granular bandwidth control (8 Kbps increments), 8 QoS egress queues per port, and comprehensive ACL support for precise traffic management. The integrated PoE+ controller intelligently manages power allocation to connected devices.
Applications
Ideal for enterprise wireless deployments, IP surveillance systems, VoIP implementations, and converged network environments. Supports power delivery to wireless access points, IP phones, security cameras, and other PoE-enabled devices. The high port density and PoE+ capability make it suitable for wiring closets, network aggregation points, and medium to large business environments requiring both data and power over Ethernet.
Specifications
| Attribute | Value |
|---|---|
| Ports | 48 x 10/100/1000BASE-T PoE+, 4 x 1GbE SFP (upgradable to 10GbE) |
| PoE Budget | 740W (internal), 1440W (with external RPS) |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.9 Mpps |
| Power Consumption | 53W (min) - 961W (max with full PoE load) |
| Dimensions | 1RU, 17.36" W x 14.51" D x 1.73" H |
| Weight | 14.55 lb (6.60 kg) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Stacking | SummitStack-V (up to 8 units) |
| MAC Address Table | 16,000 entries |
| Packet Buffer | 3.0MB |
Advantages
- High port density with 48 Gigabit Ethernet PoE+ ports for connecting and powering numerous devices
- Substantial 740W PoE budget supports high-power devices including PTZ cameras and 802.11ac/ax access points
- Software-upgradable 10GbE ports provide investment protection and future scalability
- Advanced security features including ACLs, role-based policies, and threat detection
- Energy-efficient design with EEE and variable-speed fans reduces operational costs
- Compatible with ExtremeCloud™ for centralized cloud management of both wired and wireless networks
- SummitStack-V technology allows creating virtual chassis of up to 8 switches
Service & Support
All Extreme Networks switches come with a limited lifetime warranty. We offer 24/7 technical support, zero-touch provisioning, and global logistics support. Same-day shipping available for in-stock items. Our professional technical team provides comprehensive installation guidance and troubleshooting support for PoE deployments and network integration.
FAQ
Q: What is the maximum PoE power available per port?
A: Each port supports up to 30W of PoE+ power, compliant with IEEE 802.3at standard.
Q: Can the SFP ports be upgraded to 10GbE on this model?
A: Yes, the four SFP ports can be upgraded to 10GbE with a software license (Dual or Quad 10GbE upgrade).
Q: How many switches can be stacked together using SummitStack-V?
A: Up to 8 X440-G2 switches can be stacked together using SummitStack-V technology.
Q: What is the maximum power consumption with full PoE load?
A: The maximum power consumption is 961 watts with all ports delivering PoE power at maximum capacity.
Q: Does this switch support redundant power supplies?
A: Yes, it supports external redundant power supplies (RPS) for increased reliability.
Precautions
- Ensure proper ventilation and airflow to prevent overheating, especially when utilizing full PoE capacity.
- Calculate total power requirements for all connected PoE devices to ensure adequate power budget.
- Use only certified SFP/SFP+ modules from Extreme Networks for compatibility and warranty coverage.
- Follow local electrical and EMC regulations during installation, particularly for high-power devices.
- Consider environmental factors when deploying in non-temperature-controlled environments.
- When using stacking functionality, ensure all switches in the stack are running the same version of ExtremeXOS.
