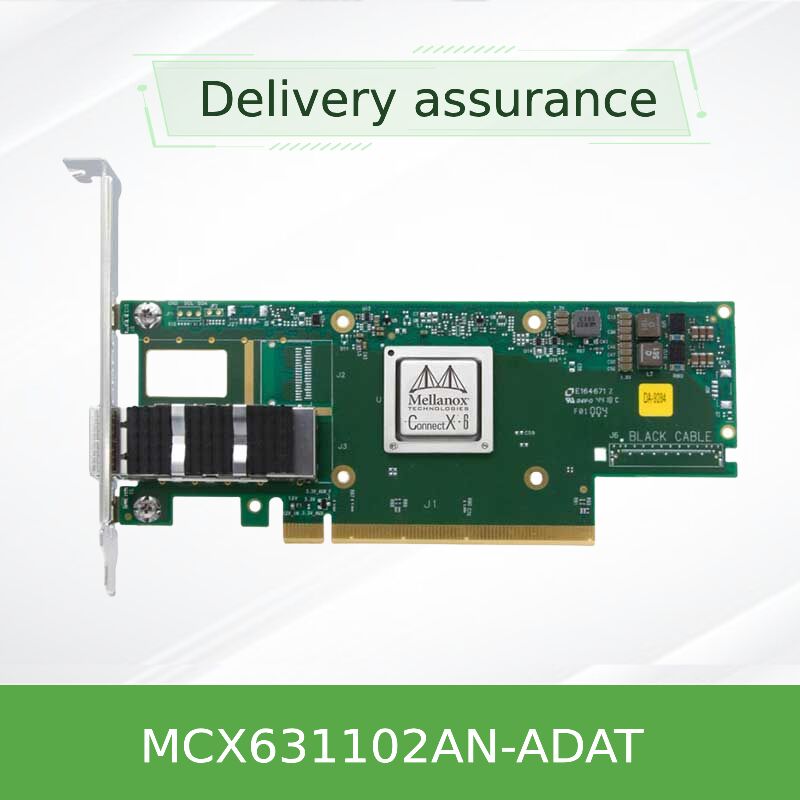

Mellanox ConnectX-6 Lx MCX631102AN-ADAT 25/50GbE SmartNIC
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCX631102AN-ADAT |
| Document: | connectx-6-infiniband.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Products Status: | Stock | Condition: | New And Original |
|---|---|---|---|
| Technology: | Ethernet | Network Interface: | Two SerDes Lanes Supporting 25Gb/s Per Lane, For Various Port Configurations: -2x 10/25 GbE -1x 50GbE |
| Host Interface: | PCIe Gen 4.0, 3.0, 2.0, 1.1 16.0, 8.0, 5.0, 2.5 GT/s Link Rate 8 Lanes Of PCIe MSI/MSI-X Mechanisms Advanced PCIe Capabilities | Speed: | 25Gbps |
| Connectors: | 2 X SFP28 | Interface: | PCIe 4.0 X8 |
| Highlight: | Mellanox ConnectX-6 Lx SmartNIC,25/50GbE network card,Mellanox MCX631102AN-ADAT NIC |
||
Product Description
The NVIDIA MCX631102AN-ADAT is a high-performance ConnectX-6 Lx Ethernet Smart Network Interface Card engineered for modern, demanding data centers. This advanced network card delivers scalable, secure, and accelerated networking for 25 and 50 Gigabit Ethernet deployments, offering an optimal balance of performance and total cost of ownership. Supporting flexible configurations with dual 25GbE ports (SFP28) or a single 50GbE port (QSFP28), it provides up to 50Gb/s of total bandwidth. With PCI Express Gen4 x8 host connectivity, hardware-based security features, and comprehensive offload engines, this SmartNIC is essential for virtualized cloud infrastructures, enterprise applications, and high-performance computing clusters.
- High-Performance Connectivity: Dual-port 25GbE SFP28 or single-port 50GbE QSFP28 connectivity options
- Host Interface: PCI Express 4.0 x8 interface, backward compatible with PCIe 3.0
- ASAP² Technology: Accelerated Switch and Packet Processing offloads SDN/VNF data plane to the NIC
- Zero-Touch RoCE: Enables seamless deployment of RDMA over Converged Ethernet without complex network configuration
- Advanced Security: Hardware acceleration for inline IPsec encryption/decryption and stateful connection tracking
- Hardware Root of Trust: Provides supply chain security with secure boot and authenticated firmware updates
Built on foundational technologies including the ASAP2 engine for full offload of virtual switches and network functions, this SmartNIC supports encapsulation protocols including VXLAN, GENEVE, NVGRE, MPLS, and GTP. It implements RoCE v2 for high-efficiency data movement and features hardened security with inline IPsec engines. The card adheres to PCI-SIG specifications for PCIe Gen4 and supports standard management interfaces for comprehensive ecosystem compatibility.
The ConnectX-6 Lx SmartNIC operates as an intelligent network endpoint. Data packets are processed through the NIC's programmable parser, with network virtualization traffic handled entirely within the ASAP2 engine. RDMA/RoCE packets are placed directly into application memory via zero-copy operations, while secure traffic is encrypted or decrypted on-the-fly. All operations are performed in dedicated hardware engines, significantly offloading server CPUs and improving overall system efficiency.
- Hyperconverged Infrastructure & Virtualized Data Centers: Offloads virtual switching to improve VM density and performance
- Cloud Service Providers & Telco NFV: Accelerates virtual network functions and service chains
- High-Performance Computing & AI/ML Clusters: Provides low-latency, high-bandwidth connectivity
- Secured Enterprise Gateways & Storage Appliances: Utilizes hardware-accelerated IPsec for high-speed encrypted tunnels
- High-Frequency Trading & Financial Analytics: Delivers ultra-low latency and high message rates
| Attribute | Specification |
|---|---|
| Product Model | MCX631102AN-ADAT |
| Adapter Series | ConnectX-6 Lx |
| Port Configuration | Dual-Port SFP28 (25GbE) or Single-Port QSFP28 (50GbE) |
| Max Aggregate Bandwidth | 50 Gb/s |
| Host Interface | PCI Express 4.0 x8 (Compatible with PCIe 3.0) |
| Packet Processing Rate | Up to 75 Million Packets Per Second (MPPS) |
| Hardware Offloads | ASAP2 (SDN/VNF), RoCE RDMA, IPsec Inline Crypto, TCP/UDP |
| Security Features | IPsec, AES-XTS 256/512, Hardware Root of Trust, Secure Boot |
| Form Factor | Standard PCIe Low-Profile (MD2) with Bracket |
| Virtualization | SR-IOV, VirtIO Hardware Acceleration |
| Key Model Feature | MCX631102AN-ADAT | Other Variants |
|---|---|---|
| Ports & Speed | 2x25GbE or 1x50GbE | 1x25GbE, 2x10GbE options available |
| Form Factor | PCIe Low-Profile | Also available in OCP 3.0 SFF |
| Cryptography | Yes (IPsec Inline Acceleration) | Non-crypto variants exist |
| Primary Use | General-purpose accelerated network card with security | Targeted for specific OEM platforms or use cases |
- Superior Total Cost of Ownership: Higher performance per watt and per dollar by offloading CPU cycles
- Simplified High-Performance Networking: Zero-Touch RoCE removes deployment complexity
- Unmatched Offload Comprehensiveness: Combines SDN switching, storage, and security offloads in a single device
- Future-Proofed Performance: PCIe Gen4 x8 host interface ensures no bandwidth bottlenecks
- Proven Ecosystem & Software Support: Comprehensive software suite and broad ecosystem compatibility
This product is supported by NVIDIA's global technical support and services network with standard warranty coverage. Comprehensive technical documentation, driver downloads, and firmware updates are available through the official NVIDIA portal. For detailed ordering information and specific part number guidance, please contact your authorized NVIDIA reseller or sales representative.
- Thermal Management: Ensure adequate airflow within the server chassis for sustained performance
- Driver & Firmware: Always use the latest NVIDIA-approved drivers and firmware
- Compatibility: Verify server PCIe slot generation and available lane width for optimal performance
- Secure Handling: Observe ESD precautions when handling the card
- Configuration: Proper software configuration is required to leverage advanced offloads
