MCX755106as-Heat (900-9X7AH-0078-DTZ) Nvidia Connectx-7 200g Ethernet Adapter with Dual Ports
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCX755106AS-HEAT(900-9X7AH-0078-DTZ) |
| Document: | Connectx-7 infiniband.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MCX755106AS-HEAT(900-9X7AH-0078-DTZ) | Ports: | 2-Port |
|---|---|---|---|
| Technology: | Infiniband | Interface Type: | Osfp56 |
| Specification: | 16.7cm X 6.9cm | Origin: | India / Israel / China |
| Transmission Rate: | 200gbe | Host Interface: | Gen3 X16 |
| Highlight: | MCX755106as-Heat Dual Ports Ethernet Adapter,200g Ethernet Adapter with Dual Ports |
||
Product Description

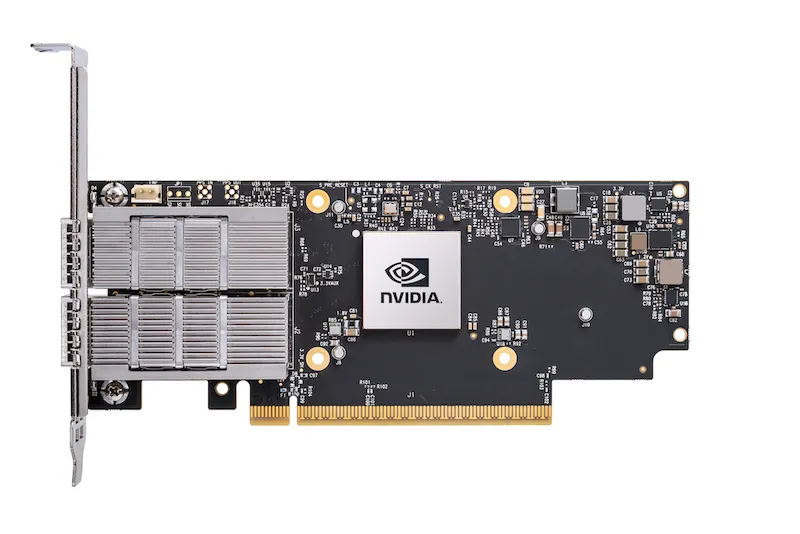

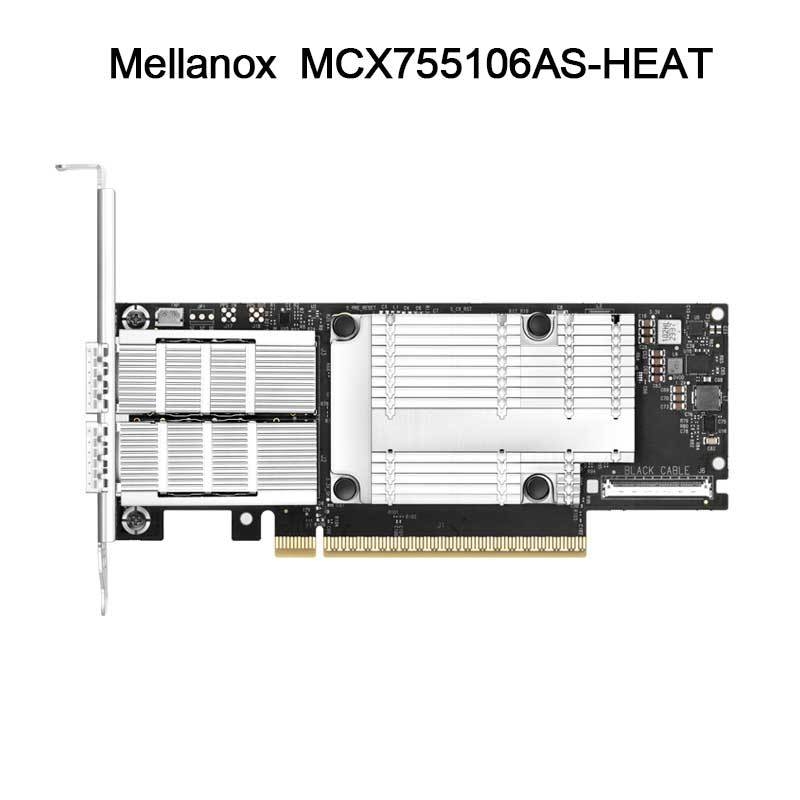

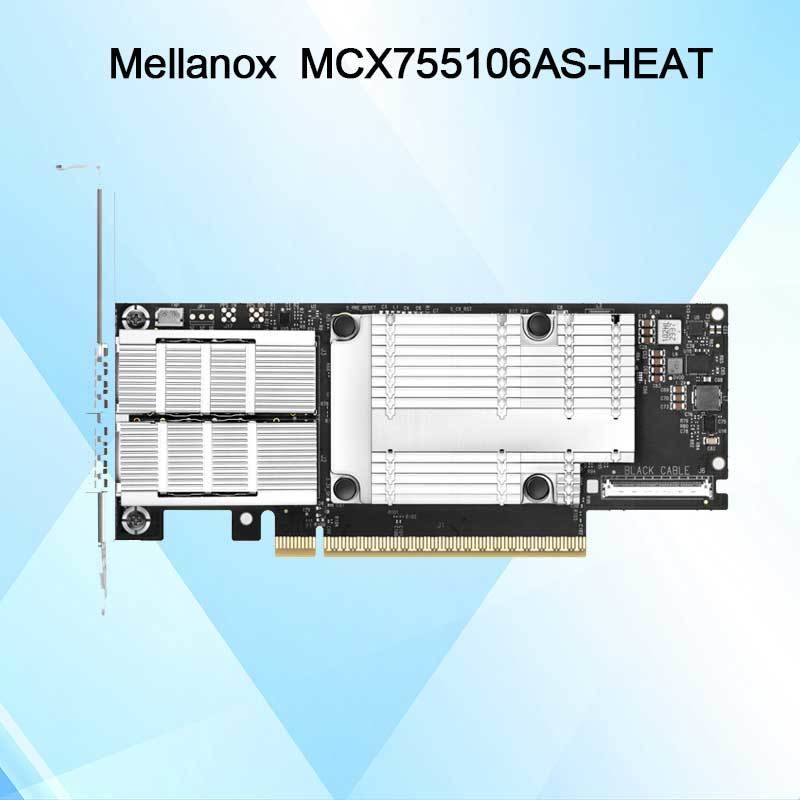

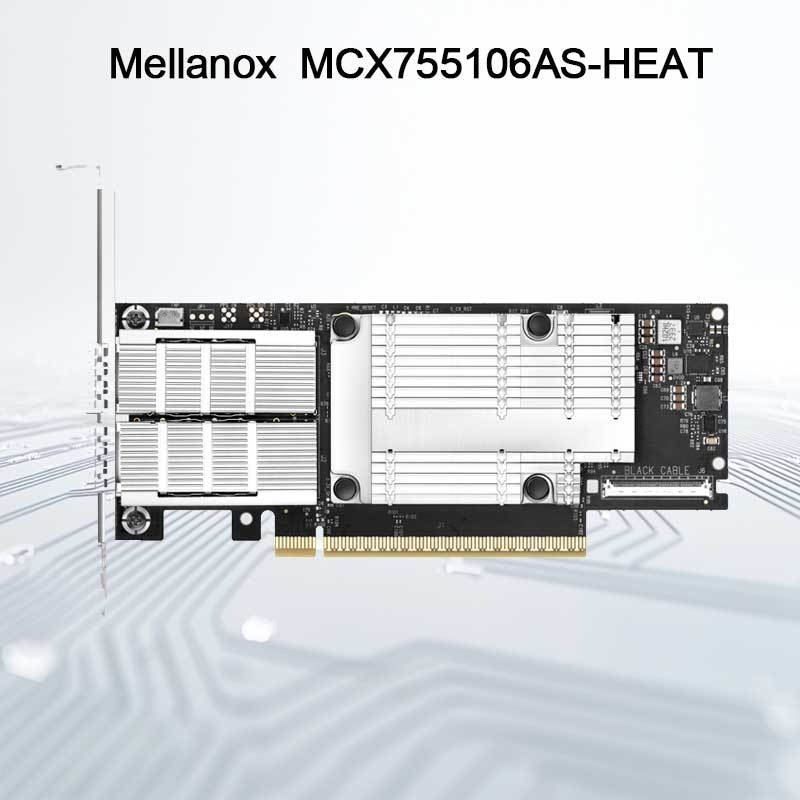

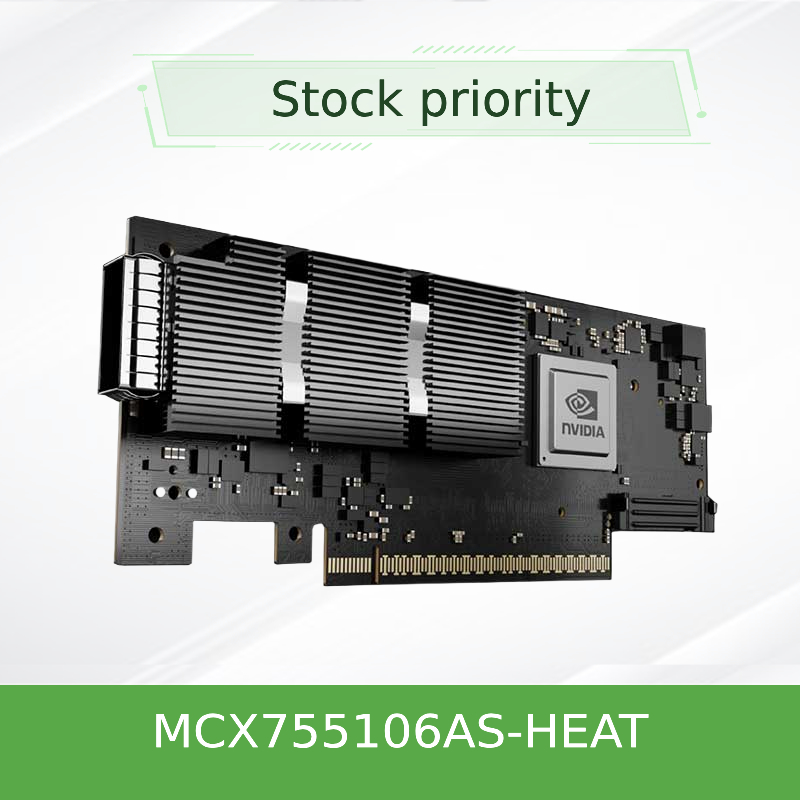

NVIDIA ConnectX-7 MCX755106AS-HEAT 200G InfiniBand Network Adapter
The NVIDIA ConnectX-7 MCX755106AS-HEAT is a high-performance dual-port InfiniBand network card designed for next-generation data centers and high-performance computing environments. This advanced network interface card delivers 200Gb/s per port bandwidth, ultra-low latency, and hardware-accelerated features that make it ideal for AI training, scientific simulations, and cloud infrastructure. Building upon the success of the ConnectX-6 series, this network card offers enhanced performance and capabilities for the most demanding workloads.
Key Characteristics
- Dual-port HDR InfiniBand (200Gb/s per port)
- PCI Express Gen 5.0 x16 host interface
- Hardware-offloaded RDMA operations
- GPUDirect® RDMA and Storage technology
- Enhanced NVIDIA SHARP™ in-network computing
- Hardware-accelerated security encryption
- SR-IOV virtualization support
Advanced Technologies
This InfiniBand network card incorporates cutting-edge technologies including PCIe 5.0 interface, PAM4 signaling, and hardware-offloaded protocols. It supports InfiniBand HDR (200G) and EDR (100G) speeds, with compatibility for earlier generations. The NIC features comprehensive RDMA capabilities, NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol (SHARP), and enhanced congestion control mechanisms for optimal performance in large-scale deployments.
Operational Principle
The ConnectX-7 network card operates by offloading network processing tasks from the host CPU to specialized hardware engines. Through Remote Direct Memory Access (RDMA), it enables direct memory-to-memory data transfer between systems without CPU involvement, significantly reducing latency. The integrated network card processor handles protocol processing, traffic management, and security functions, delivering line-rate performance regardless of packet size.
Application Scenarios
- Artificial Intelligence and Deep Learning clusters
- High-Performance Computing (HPC) systems
- Hyper-scale cloud data centers
- High-frequency trading systems
- Scientific research and simulation environments
- Storage Area Networks (SAN) and NVMe over Fabrics
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | MCX755106AS-HEAT |
| Interface | PCIe Gen5 x16 |
| Port Configuration | Dual-port QSFP56 |
| Data Rate | HDR InfiniBand (200Gb/s per port) |
| Protocols | InfiniBand, Ethernet RoCE |
| Form Factor | FHFL (Full Height, Full Length) |
| Power Consumption | < 22W typical |
| Operating Temperature | 0°C to 55°C |
Competitive Advantages
The ConnectX-7 network card represents a significant advancement over previous generations like the ConnectX-6, offering 2x the bandwidth and improved energy efficiency. This high-performance NIC card features enhanced in-network computing capabilities through SHARP technology, reducing MPI operation time by offloading collective operations to the switch network. The hardware-accelerated security engine provides inline encryption without performance degradation, making this network adapter ideal for secure environments.
Service & Support
We provide a comprehensive 3-year warranty on all NVIDIA network products. Our technical support team offers 24/7 assistance for installation, configuration, and troubleshooting. We maintain substantial inventory for immediate shipment and provide volume pricing for large deployments. Custom configuration services are available for OEM partners.
Frequently Asked Questions
Q: What is the difference between ConnectX-7 and ConnectX-6 network cards?
A: The ConnectX-7 offers higher bandwidth (200/400G vs. 200G max), PCIe Gen5 support, enhanced SHARP capabilities, and improved security features compared to the ConnectX-6 NIC card.
Q: Is this network card compatible with existing InfiniBand infrastructure?
A: Yes, the ConnectX-7 maintains backward compatibility with EDR and FDR InfiniBand systems, allowing gradual infrastructure upgrades.
Q: What cables are required for HDR InfiniBand connections?
A: You will need HDR InfiniBand compatible cables (QSFP56) or appropriate transceivers with OM4 fiber or DAC cables.
Installation Notes
- Ensure adequate airflow around the network card as high-speed operation generates significant heat
- Verify PCIe slot compatibility (Gen5 x16 recommended for full performance)
- Install latest firmware and drivers from NVIDIA support website
- For optimal performance, use certified InfiniBand cables and transceivers
- Ensure proper ESD precautions during handling and installation
