NVIDIA ConnectX-7 MCX75310AAS-NEAT 400G InfiniBand Ethernet SmartNIC – High-Performance Network Adapter

NVIDIA ConnectX-7 MCX75310AAS-NEAT 400G InfiniBand/Ethernet Network Interface Card

Product Alias: mq9700 | Core Search Terms: network card, NIC card, InfiniBand adapter, Ethernet SmartNIC, high-speed network adapter

1. Product Overview & Specifications

The NVIDIA ConnectX-7 MCX75310AAS-NEAT is a premier dual-port network interface card (NIC card) designed for next-generation data centers. This network adapter supports both InfiniBand NDR (400Gb/s) and Ethernet (up to 400GbE) protocols, delivering exceptional bandwidth and latency for AI, high-performance computing (HPC), cloud, and enterprise storage. Leveraging PCI Express 5.0 and hardware-based acceleration engines, it offloads critical tasks from the CPU, maximizing application performance and efficiency.

2. Key Characteristics

• High-Speed Interfaces: Two network ports, each configurable for InfiniBand (NDR, HDR, EDR) or Ethernet (400/200/100/50/25/10GbE).
• Hardware Offloads: RDMA (RoCE, InfiniBand), GPUDirect® RDMA/Storage, NVMe over Fabrics (NVMe-oF), TLS/IPsec/MACsec inline encryption.
• Advanced Networking: Support for NVIDIA SHARP™ in-network computing, adaptive routing, enhanced congestion control, and SR-IOV.
• Precision Timing: IEEE 1588 PTP with nanosecond accuracy and SyncE for timing-sensitive applications.
• Robust Management: Comprehensive manageability via NC-SI, PLDM (Redfish, FRU), SPDM, and secure firmware updates.
• This specific model, also known under the alias mq9700, is a top-tier solution for scalable cluster deployment.

3. Core Technologies & Standards

This NIC card is built on industry-leading technologies:

• Protocols: InfiniBand (IBTA 1.5), Ethernet (IEEE 802.3), RoCE (RDMA over Converged Ethernet).
• Compute Acceleration: GPUDirect technologies, NVIDIA SHARP™ for collective communication offload.
• Security: Hardware-accelerated TLS 1.3, IPsec, MACsec (AES-GCM 128/256-bit).
• Virtualization: Single Root I/O Virtualization (SR-IOV), VirtIO acceleration.
• Standards Compliance: PCIe Gen5, IEEE 1588, PLDM, SPDM, OCP 3.0 (for specific form factors).

4. Working Principle

The ConnectX-7 network card operates as a sophisticated network co-processor. Data flows from the host server via the PCIe Gen5 x16 interface into the adapter's onboard intelligence. Key processing steps include:

1. Packet Processing & Steering: The programmable parser classifies traffic, directing it to appropriate hardware acceleration engines.
2. Hardware Offload: Network (RoCE/IB transport), storage (NVMe-oF/TCP), and security (encryption/decryption) operations are executed directly on the card, bypassing the CPU.
3. RDMA Transfer: For low-latency communication, RDMA enables direct memory access between servers or GPU memory (via GPUDirect RDMA).
4. In-Network Computing: NVIDIA SHARP™ engines perform collective operations (like reductions) within the switch network, drastically reducing host CPU and GPU involvement.
5. Quality of Service (QoS): Traffic is prioritized and scheduled according to configured policies before transmission through the high-speed SerDes interfaces (PAM4/NRZ).

5. Application Scenarios

• AI & Machine Learning Clusters: Accelerates multi-node training with GPUDirect and SHARP™.
• High-Performance Computing (HPC): Provides ultra-low latency for scientific simulations and modeling.
• Hyperscale & Cloud Data Centers: Enables high-density, software-defined infrastructure with SR-IOV and overlay network offloads (VXLAN, GENEVE).
• High-Frequency Trading & Financial Services: Nanosecond-precision timing and deterministic latency are critical.
• Enterprise Storage & Disaggregated Infrastructure: Optimizes performance for NVMe-oF and RDMA-based storage networks.

6. Specifications & Selection Table

7. Advantages & Competitive Edge

• Performance Leadership: Compared to previous generations and competitor NIC cards, ConnectX-7 doubles the throughput to 400G and significantly reduces latency for AI workloads.
• Total Cost of Ownership (TCO): Hardware offloads free up valuable CPU cores, allowing for higher application density and reduced licensing costs.
• Future-Proof Design: Dual-protocol support on a single network adapter protects infrastructure investment against technology shifts.
• Ecosystem Integration: Deep optimization with NVIDIA GPUs, VMware, Kubernetes, and leading HPC software stacks like OpenMPI and NCCL.
• The mq9700 alias model is recognized for its reliability in large-scale deployments, a testament to its robust design.

8. Service & Support

Backed by over a decade of industry experience, we provide comprehensive support for this network interface card:

• Warranty: Standard manufacturer warranty applies. Extended warranty options are available.
• Availability & Delivery: In stock for immediate shipment. We maintain a $10M inventory to ensure supply continuity.
• Technical Support: 24/7 customer consultation and technical support from our expert team.
• Pre- & Post-Sales Service: Assistance with solution design, compatibility verification, and integration.
• Global Logistics: We ensure accurate and timely arrival of goods to customers worldwide.

9. Frequently Asked Questions (FAQ)

Q1: What is the difference between this model (MCX75310AAS-NEAT) and other ConnectX-7 variants?

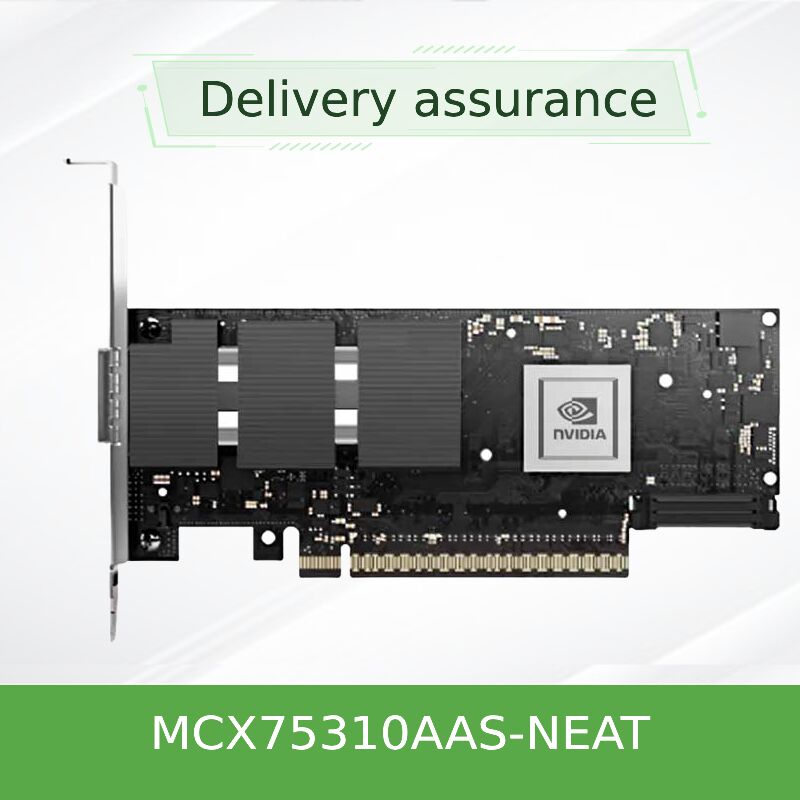

A: This specific model is a dual-port, FHFL PCIe card. Variants differ in port count (1/2/4), form factor (OCP 3.0, SFF), and sometimes pre-configured protocol (VPI = InfiniBand & Ethernet, or EN = Ethernet-only). The alias mq9700 often refers to this high-performance dual-port configuration.

Q2: Can this network card operate in an Ethernet-only environment?
A: Yes. The ConnectX-7 is a VPI (Virtual Protocol Interconnect) NIC card. It can be configured via firmware/driver to operate in Ethernet-only mode, supporting RoCE for RDMA over standard Ethernet networks.

Q3: Does it support legacy PCIe generations?
A: Yes. The PCIe Gen5 interface is backward compatible with Gen4 and Gen3 slots, though maximum bandwidth will be limited by the host slot's capability.

Q4: What cables are required for 400GbE or NDR InfiniBand connections?
A: For 400G speeds, you will need QSFP-DD or OSFP optical transceivers and fiber cables, or appropriate Direct Attach Copper (DAC) cables. The choice depends on distance and infrastructure.

Q5: Is this card suitable for GPU-based AI servers?
A: Absolutely. This is a primary use case. Features like GPUDirect RDMA and SHARP™ are specifically designed to eliminate bottlenecks in multi-GPU, multi-server AI training clusters, making this an ideal network adapter.

10. Precautions & Notes

• Compatibility: Verify server has a PCIe Gen4 x16 or Gen5 x16 slot for full performance. Ensure adequate chassis cooling, as this is a high-performance network card.
• Drivers & Firmware: Always use the latest NVIDIA-approved drivers and firmware from the official portal for stability and feature access.
• Electromagnetic Compatibility (EMC): Install in compliance with local EMC regulations. Use manufacturer-provided brackets and ensure proper grounding.
• Security: Utilize the hardware root-of-trust and secure boot features to prevent unauthorized firmware modification.
• Handling: Follow ESD (electrostatic discharge) precautions during installation. Avoid touching the gold-plated connectors.
• When searching for this product, using terms like "NIC card", "network adapter", or the alias "mq9700" will help locate specific technical resources and support.
