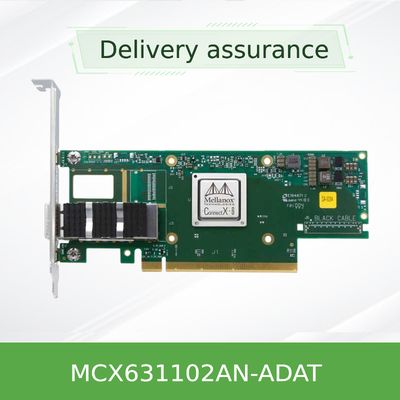

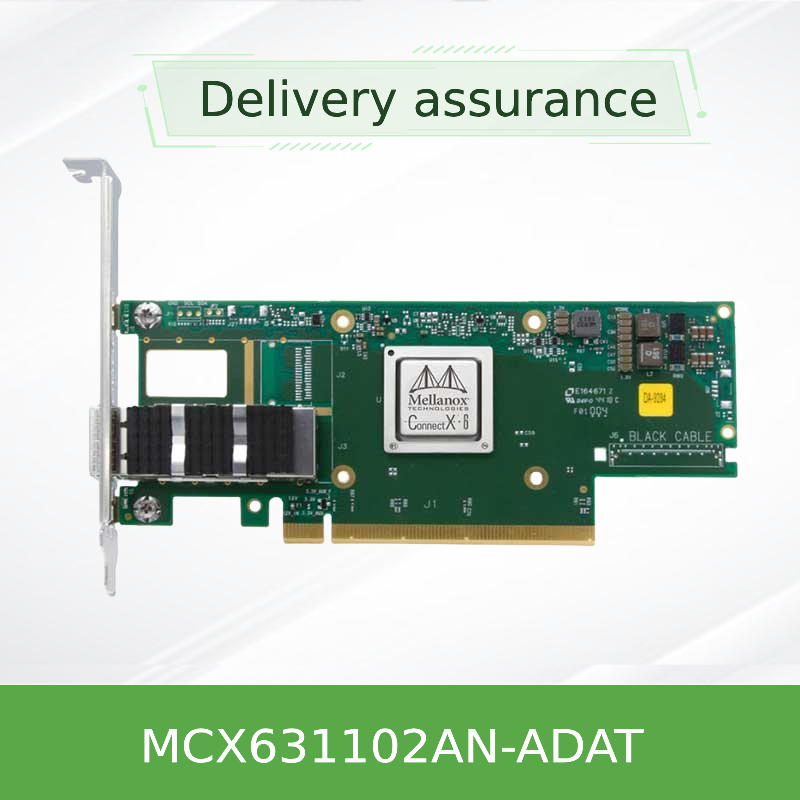

NVIDIA ConnectX-6 Lx MCX631102AN-ADAT Dual 25GbE PCIe Low Profile SmartNIC with ASAP² Technology
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCX631102AN-ADAT |
| Document: | connectx-6-infiniband.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Products Status: | Stock | Condition: | New And Original |
|---|---|---|---|
| Technology: | Ethernet | Network Interface: | Two SerDes Lanes Supporting 25Gb/s Per Lane, For Various Port Configurations: -2x 10/25 GbE -1x 50GbE |
| Host Interface: | PCIe Gen 4.0, 3.0, 2.0, 1.1 16.0, 8.0, 5.0, 2.5 GT/s Link Rate 8 Lanes Of PCIe MSI/MSI-X Mechanisms Advanced PCIe Capabilities | Speed: | 25Gbps |
| Connectors: | 2 X SFP28 | Interface: | PCIe 4.0 X8 |
Product Description
NVIDIA ConnectX-6 Lx MCX631102AN-ADAT 25GbE SmartNIC
High-Performance Dual-Port SmartNIC for Enterprise Data Centers
The NVIDIA ConnectX-6 Lx MCX631102AN-ADAT represents a sophisticated network interface card solution, delivering exceptional performance, robust security features, and comprehensive acceleration capabilities for modern enterprise and cloud data centers. This advanced NIC card supports dual 25GbE ports with PCIe Gen4 compatibility, providing reliable high-speed connectivity.
Primary Benefits:
- Dual 25GbE ports for high-density connectivity
- Zero-Touch RoCE technology for seamless deployment
- Hardware-accelerated IPsec encryption and decryption
- ASAP² technology for SDN and NFV offloading
- Hardware root-of-trust for enhanced security
Product Overview
The ConnectX-6 Lx network card (model MCX631102AN-ADAT) provides high-performance networking solutions for demanding enterprise environments. This advanced NIC card delivers up to 50Gb/s aggregate bandwidth through its dual 25GbE ports. The SmartNIC architecture efficiently offloads critical networking functions from host CPUs, enhancing overall system performance while optimizing resource utilization and reducing operational costs.
Key Characteristics
- Dual-port 25GbE SFP28 connectivity
- PCI Express Gen4 x8 host interface with backward compatibility
- Hardware-accelerated RoCE v2 implementation
- ASAP² technology for software-defined networking acceleration
- Inline IPsec encryption with AES-256/512 support
- Advanced security features with hardware root-of-trust
- Comprehensive overlay network support (VXLAN, GENEVE)
- Enhanced virtualization with SR-IOV and VirtIO acceleration
Core Technologies
The ConnectX-6 Lx NIC card incorporates several innovative technologies that set it apart from conventional network interface cards:
ASAP² (Accelerated Switch and Packet Processing): This technology offloads software-defined networking data plane operations directly to the SmartNIC, significantly improving performance in virtualized environments while substantially reducing host CPU utilization.
Zero-Touch RoCE: Enables seamless deployment of RDMA over Converged Ethernet without requiring complex network configuration, eliminating the traditional need for Priority Flow Control or Explicit Congestion Notification setup.
Hardware Security Framework: Implements robust IPsec inline cryptography with AES-XTS 256/512-bit encryption and provides hardware root-of-trust for secure boot processes and firmware validation.
Operation Principles
The ConnectX-6 Lx SmartNIC operates by efficiently offloading network processing tasks from the host server CPU to specialized hardware engines on the network card. When network traffic is received, the integrated processor manages packet classification, filtering, and forwarding decisions autonomously. For virtualized infrastructure, the SR-IOV technology provides direct hardware access to virtual machines, bypassing the hypervisor for optimal performance. The RoCE implementation enables efficient remote direct memory access, allowing high-speed data transfer between servers with minimal CPU overhead, making this NIC card ideal for performance-sensitive applications.
Application Scenarios
This high-performance network interface card is engineered for diverse deployment scenarios:
- Enterprise Data Centers: Virtualized infrastructure with software-defined networking requirements
- High-Performance Computing: Computational clusters requiring low-latency RDMA communication
- Network Function Virtualization: Telecommunications and service provider infrastructure
- Storage Area Networks: iSCSI and NVMe over Fabrics implementations
- Secure Enterprise Networks: Environments requiring encrypted communications and robust security
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MCX631102AN-ADAT |
| Interface Configuration | Dual 25GbE Ports |
| Host Bus Interface | PCIe Gen4 x8 |
| Total Bandwidth | 50 Gb/s aggregate |
| Packet Processing Rate | 75 million packets per second |
| Form Factor | PCIe Low Profile |
| Physical Connector | SFP28 |
| Security Features | IPsec inline crypto, Hardware Root-of-Trust |
Competitive Advantages
The ConnectX-6 Lx network interface card delivers substantial improvements over previous generation solutions and competing products:
- Enhanced Power Efficiency: 30% improvement in performance per watt compared to previous generation NIC cards
- Streamlined Deployment: Zero-Touch RoCE eliminates complex network configuration requirements
- Comprehensive Security: Hardware-based security features provide robust protection against firmware tampering
- Future-Ready Architecture: PCIe Gen4 compatibility ensures long-term viability in evolving data center environments
- Virtualization Excellence: Advanced SR-IOV and VirtIO acceleration for high-density virtualized deployments
Service & Support
We provide comprehensive support services for all our networking products including this high-performance NIC card. Our service offerings include:
- Standard manufacturer warranty with optional extension packages
- 24/7 technical support with average response time under 2 hours
- Regular firmware updates and security patches
- Integration assistance for complex deployment scenarios
- Custom configuration services for large-scale implementations
Frequently Asked Questions
What server compatibility does this network card support?
The ConnectX-6 Lx NIC card maintains compatibility with all major server platforms supporting PCIe Gen3 or Gen4 slots, including both x86 and ARM architectures with UEFI firmware implementation.
Does this SmartNIC require specialized drivers?
Standard NVIDIA drivers are readily available for all major operating systems including Windows Server, various Linux distributions, and VMware ESXi. Regular updates are distributed through standard software channels.
What is the typical power consumption of this network interface card?
Typical power consumption remains under 15W, making this NIC card particularly suitable for high-density server deployments where power efficiency represents a critical consideration.
Can this NIC card support both networking and storage applications?
Yes, the ConnectX-6 Lx supports both standard Ethernet networking and storage protocols including iSCSI and NVMe over Fabrics, rendering it ideal for converged infrastructure deployments where this network card can handle multiple workload types.
Installation & Usage Notes
- Ensure adequate cooling airflow around the network card in server configurations
- Verify PCIe slot compatibility (requires x8 mechanical, x4 electrical minimum)
- Utilize qualified optical transceivers or direct attach cables for optimal performance
- Update to the latest firmware version before deployment to access security and feature enhancements
- Consult compatibility documentation when deploying in heterogeneous network environments
