Hpe Aruba Networking Cx 6200f 48g Class4 Poe 4SFP+ 370W Switch (JL727A)

Hpe Aruba Networking Cx 6200f 48g Class4 Poe 4SFP+ 370W Switch (JL727A)

Product Details:

Brand Name: ARUBA
Model Number: JL727A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: carton
Delivery Time: 7-10days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Get Best Price Contact Now

Detail Information

Model NO.: CX 6200F (JL727A) Transmission Rate: 10/100/1000Mbps
Ports: ≦8 Operating System: Aruba OS
L3: WLAN/STP/Lldp/Lacp Poe: Hpe Smart Rate
Transport Package: Carton Specification: 449× 441 × 44mm
Trademark: Extreme Origin: China

Product Description

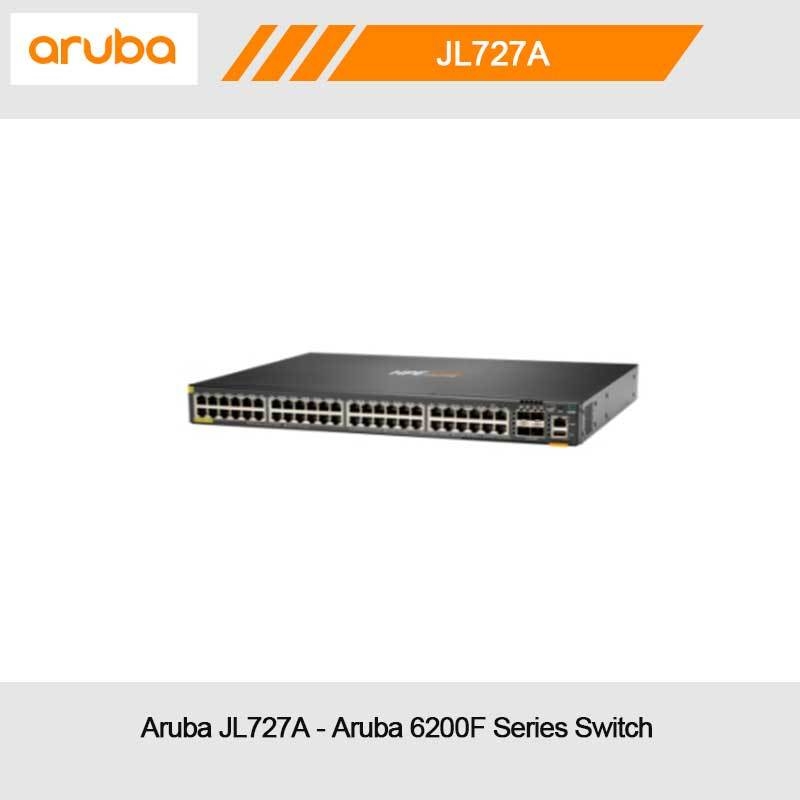

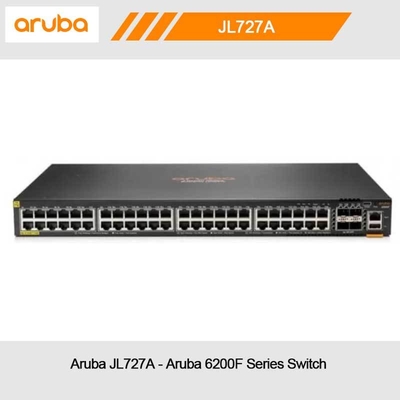

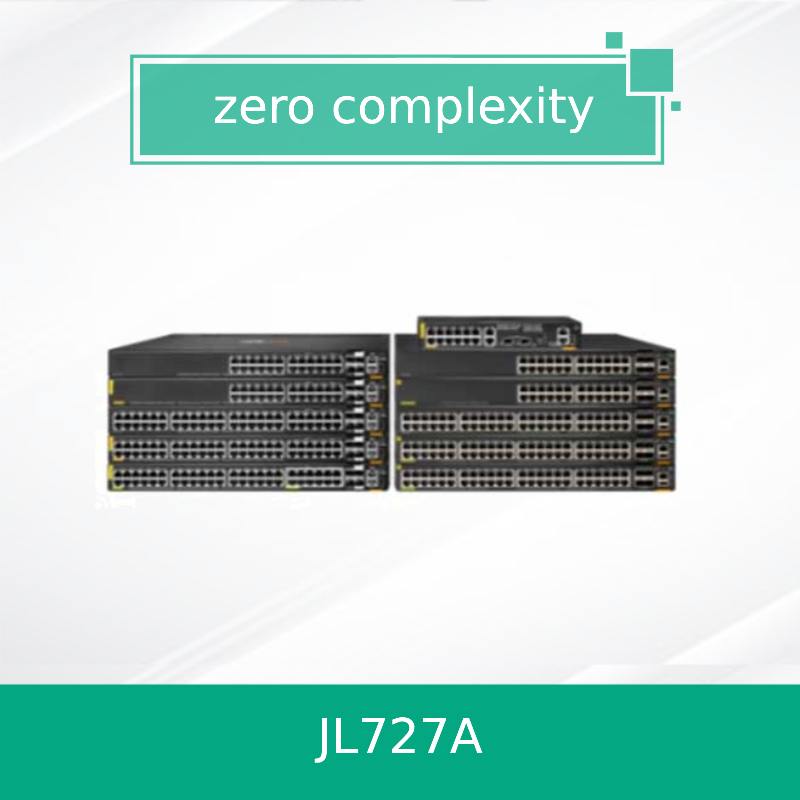

HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727A)

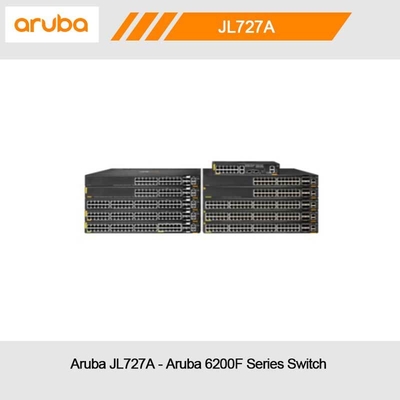

The HPE Aruba Networking CX 6200F (JL727A) Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer. Make your network ready for tomorrow's unpredictable demands with a powerful Gen7 ASIC architecture to deliver fast, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs.
The HPE Aruba Networking CX 6200F (JL727A) Switch Series provides Layer 3 access switching with high performance, security, and ease of use for enterprise edge, SMB, and branch office networks. A fully distributed architecture with Gen7 ASICs deliver very low latency, increased packet buffering, and adaptive power consumption. Switching and routing are wire-speed to meet the demands of bandwidth-intensive workloads. HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers. Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6200 models that support up to 1440W IEEE 802.3at Class 6 Power over Ethernet for up to 60W per port. Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Product Number
JL727A
Differentiator
48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used with CX Mobile app Fixed power supply Up to 370W of Class 4 PoE power Fixed fans
Ports
48x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used withCX mobile app
Memory and processor
CPU: Quad Core ARM Cortex™ A72 at 1.8 GHz Memory and Flash: 8 GB DDR4 16 GB eMMC
Latency
1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
Throughput
Up to 130.9 Mpps
Switching capacity
176 Gbps
PoE capability
370W
Power supply name
Fixed power supply (500W) Up to 370W of Class 4 PoE Power
Input voltage
100 - 240 VAC
Power consumption
65W at 230 VAC
Product dimensions
4.39 x 44.2 cm x 32.7 cm
Weight
4.90 kg
