Aruba Cx 6300f Switch Jl668A Enterprise Switches Original Genuine Genuine Brand New Enterprise Switch
Product Details:
| Brand Name: | Aruba |
| Model Number: | JL668A |
| Document: | JL668AHPE Aruba Networking ...nw.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | CX 6300F (JL668A) | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Aruba OS |
| L3: | WLAN/STP/Lldp/Lacp | Poe: | Hpe Smart Rate |
| Transport Package: | Carton | Specification: | 449× 441 × 44mm |
| Trademark: | Extreme | Origin: | China |
| Highlight: | Enterprise Switches Jl668A,Aruba Cx 6300f Switch JL668A,Enterprise Switches Original Genuine |
||
Product Description

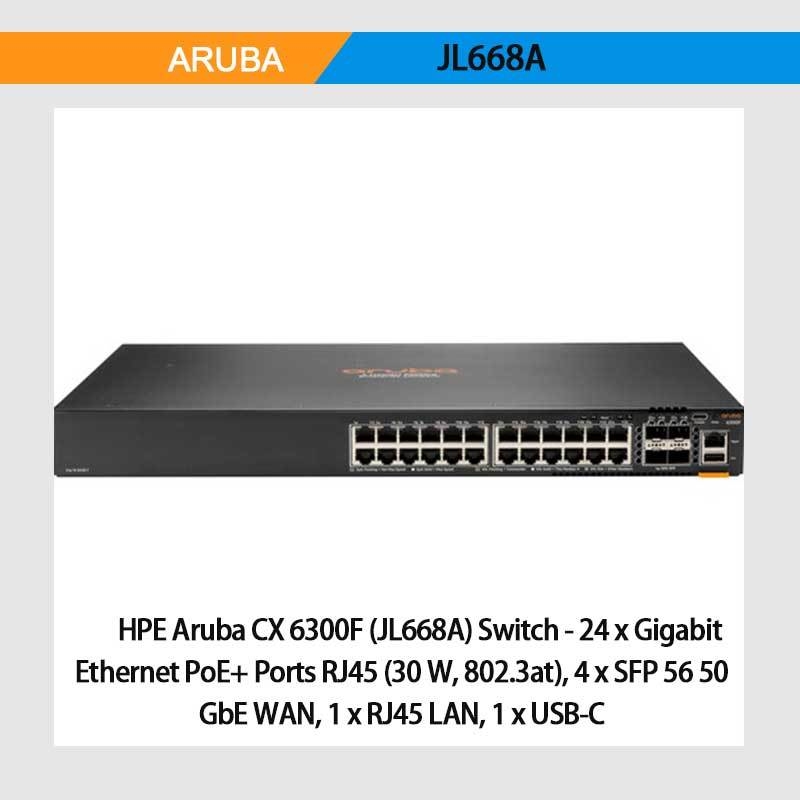

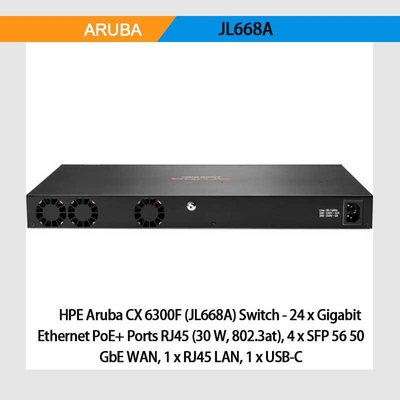

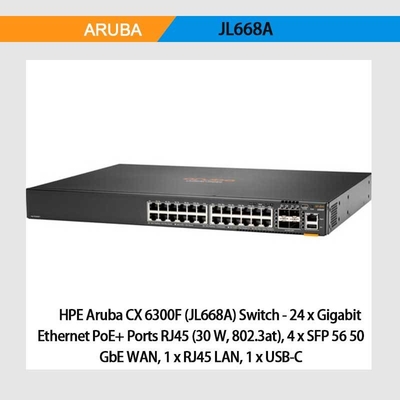

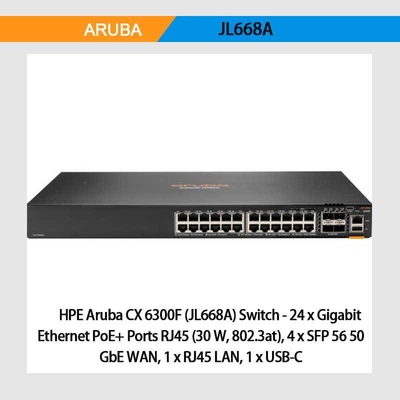

The HPE Aruba Networking CX 6300F Switch (JL668A) is a high-performance, fixed-configuration, stackable Layer 2+/Layer 3 switch designed for enterprise access and aggregation layers. It is part of the modern, cloud-native Aruba CX 6300 Switch Series, built to support IoT, mobile, and cloud applications with robust security, high availability, and simplified management. This compact 1U switch offers 24 x 1GbE RJ45 ports and 4 x 1G/10G/25G/50G SFP56 uplink ports, making it ideal for bandwidth-intensive environments.
- 24 x 10/100/1000BASE-T ports, 4 x 1G/10G/25G/50G SFP56 ports
- Fixed internal power supply (200W)
- Non-blocking switching capacity: 448 Gbps
- Forwarding throughput: 334 Mpps
- Supports HPE Aruba Networking CX OS with REST API and cloud management
- Built-in security features including MACsec, ACLs, and Dynamic Segmentation
- Energy Efficient Ethernet (IEEE 802.3az) support
- Virtual Stacking Framework (VSF) for up to 10 switches
The JL668A switch supports a wide range of industry standards and protocols including:
- Layer 2: IEEE 802.1Q VLANs, STP/RSTP/MSTP, LACP, LLDP
- Layer 3: OSPFv2/v3, BGP, VRF, PIM-SM, Static Routing
- Security: IEEE 802.1X, RADIUS, TACACS+, ACLs, MACsec
- Management: SNMP, REST API, SSH, SFTP, IPFIX, sFlow
- PoE: IEEE 802.3af/at (up to 30W per port on PoE models)
The switch operates on a fully distributed architecture using HPE's Gen7 ASIC, enabling wire-speed switching and routing. It uses a microservices-based OS (Aruba CX) for automated workflows and integrates with Aruba Central for cloud-based management. The switch supports VSF stacking, allowing multiple units to operate as a single logical device with unified management and high availability.
Ideal for:
- Enterprise campus access and aggregation layers
- Branch office networking
- Data center top-of-rack (ToR) deployments
- High-density wireless and IoT environments
- Out-of-band management (OOBM) and server connectivity
| Attribute | Value |
|---|---|
| Model | JL668A |
| Ports | 24 x 1GbE RJ45, 4 x SFP56 (1G/10G/25G/50G) |
| Switching Capacity | 448 Gbps |
| Throughput | 334 Mpps |
| Power Supply | Internal fixed (200W) |
| PoE Support | No (non-PoE model) |
| Dimensions (HxWxD) | 1.73" x 17.4" x 12.9" (4.39 x 44.2 x 32.7 cm) |
| Weight | 4.36 kg (9.61 lb) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Memory | 8 GB DDR4, 32 GB eMMC |
- High-density 1GbE access with multi-gig uplink flexibility
- Cloud-native management with Aruba Central and CX Mobile App
- Advanced security with Dynamic Segmentation and built-in TPM
- Low latency and high buffering for performance-sensitive applications
- Energy-efficient design with EEE support
- Simplified deployment with Zero Touch Provisioning and VSF stacking
- Limited Lifetime Warranty
- 24/7 technical support and consultation
- Fast delivery with global shipping options
- Professional integration and configuration services
- Optional HPE Aruba Central subscriptions and advanced feature packs
Q: Does the JL668A switch support PoE?
A: No, the JL668A is a non-PoE model. For PoE support, consider the JL665A or JL666A models.
Q: Can I stack this switch with other Aruba CX 6300 models?
A: Yes, it supports VSF stacking with up to 10 switches, including mixed models.
Q: What management options are available?
A: You can manage it via CLI, Web UI, Aruba Central, REST API, or the CX Mobile App.
Q: Is this switch suitable for data center use?
A: Yes, it can be used as a top-of-rack switch for 1GbE servers or out-of-band management.
- Use only compatible transceivers and DAC cables; unsupported modules may not function.
- Ensure proper airflow and operating temperature to avoid overheating.
- VSF stacking is not supported on 1G ports; use SFP56 ports for stacking.
- For full feature access, consider the optional CX Advanced Feature Pack.
- Complies with safety standards including UL, IEC, and RoHS.
