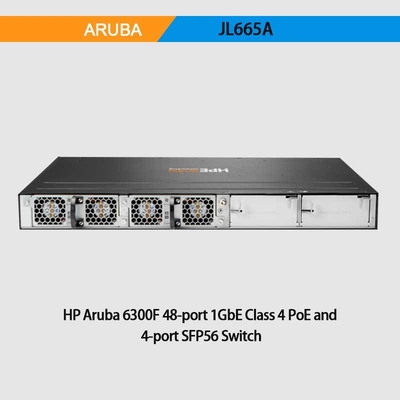

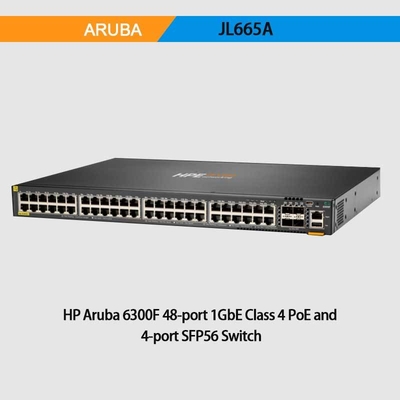

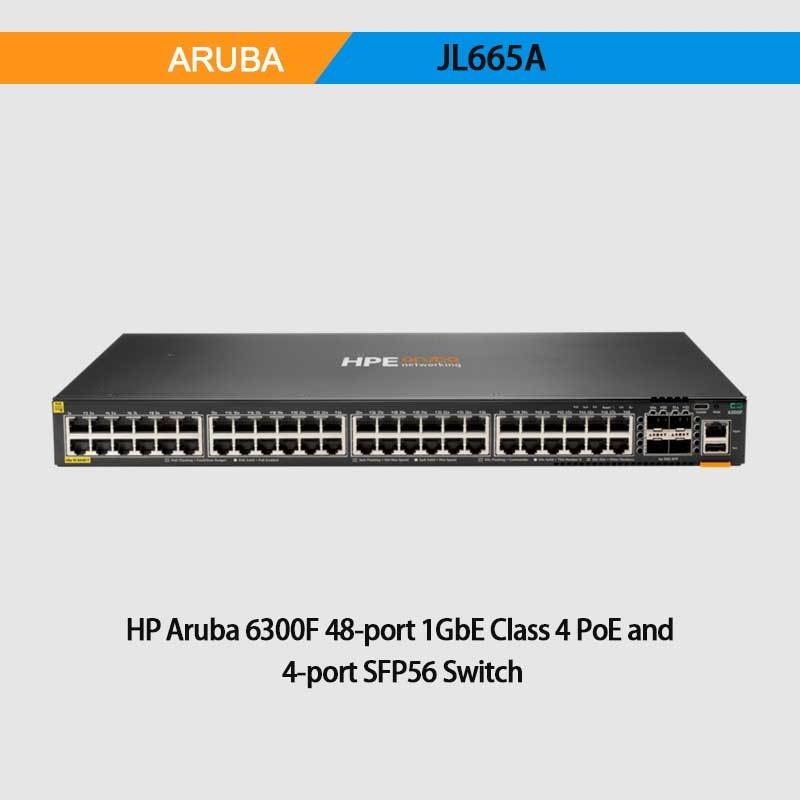

High-Performance Access Layer Switches New Jl665A 6300f 48g Cl4 Poe 4SFP56 Switch
Product Details:
| Brand Name: | Aruba |
| Model Number: | JL665A |
| Document: | JL665AHPE Aruba Networking ...nw.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | CX 6300F (JL665A) | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Aruba OS |
| L3: | WLAN/STP/Lldp/Lacp | Poe: | Hpe Smart Rate |
| Transport Package: | Carton | Specification: | 449× 441 × 44mm |
| Trademark: | Extreme | Origin: | China |
| Highlight: | Jl665A Access Layer Switches,New Access Layer Switches,SFP56 Access Layer Switches |
||
Product Description
The HPE Aruba Networking CX 6300F Switch (JL665A) is a high-performance, fixed-configuration switch designed for modern enterprise access and aggregation layers. It delivers robust Layer 3 features, advanced security, and high-power PoE capabilities in a compact 1U form factor. Ideal for demanding environments, this switch supports IoT, mobile, and cloud applications with non-blocking performance and simplified management through HPE Aruba Networking Central.
- 48 x 10/100/1000Base-T PoE+ ports (up to 30W per port)
- 4 x 1G/10G/25G/50G SFP56 uplink ports
- Built-in security with MACsec, Dynamic Segmentation, and ACL support
- HPE Aruba Networking CX OS with cloud-native management
- VSF stacking support for up to 10 units
- Energy Efficient Ethernet (EEE) and hot-swappable power supplies
- High-density PoE+ support for IP phones, cameras, and APs
- Multi-gigabit ready uplinks for future-proof scalability
- Integrated Bluetooth for mobile app management
- Zero-touch provisioning and REST API support
- Front-to-back airflow for efficient cooling
The JL665A switch leverages HPE's 7th Generation ASIC architecture, enabling wire-speed performance, deep buffering, and programmable innovation. It supports advanced protocols including BGP, OSPF, VXLAN, EVPN, and VRF. Security features include Trusted Platform Module (TPM), Role-Based Access Control, and encryption via SSH, SSL, and SNMPv3.
The switch operates as a fully distributed system, utilizing HPE Aruba Networking Gen7 to process and forward traffic at line rate. It uses Virtual Output Queuing (VOQ) to prevent head-of-line blocking and ensure low latency. The built-in Network Analytics Engine (NAE) provides real-time monitoring and troubleshooting capabilities.
Ideal for enterprise campus networks, branch offices, and medium-sized data centers. Common use cases include:
- Access layer switching for wired and wireless networks
- IP phone and IoT device connectivity with PoE+
- Top-of-Rack (ToR) deployment in server racks
- Aggregation layer for traffic consolidation
- Out-of-band management (OOBM) for data centers
| Attribute | Value |
|---|---|
| Model | JL665A |
| Ports | 48 x 1GbE PoE+, 4 x SFP56 (1G/10G/25G/50G) |
| PoE Budget | 740W Max |
| Switching Capacity | 496 Gbps |
| Throughput | 369 Mpps |
| Power Supply | Internal fixed 950W |
| Dimensions (HxWxD) | 1.73" x 17.4" x 12.9" |
| Weight | 5.10 kg (11.24 lb) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Stacking | VSF up to 10 units |
- Higher PoE density and power efficiency compared to previous models
- Integrated security features reduce operational overhead
- Cloud-native management via HPE Aruba Networking Central
- Future-proof with multi-gig and 50G uplink support
- Limited Lifetime Warranty with global support services
We offer comprehensive support including 24/7 technical consultation, worldwide shipping, and integration services. All products come with original manufacturer warranty. We also provide customized configuration and deployment assistance for large-scale projects.
Q: What is the maximum PoE power per port?
A: Each PoE port supports up to 30W (IEEE 802.3at).
Q: Can I stack this switch with other CX 6300 models?
A: Yes, it supports VSF stacking with up to 10 compatible CX 6300 switches.
Q: Does it support IPv6 routing?
A: Yes, it fully supports IPv6 routing protocols including OSPFv3 and BGP.
Q: Is the power supply hot-swappable?
A: No, the JL665A model has a fixed internal power supply.
Q: What transceivers are compatible?
A: It supports standard SFP, SFP+, and SFP56 transceivers from HPE Aruba and other certified vendors.
- Ensure proper ventilation and airflow to maintain operating temperature.
- Use only certified power cables and accessories.
- Verify compatibility of third-party transceivers and DAC cables.
- Follow ESD precautions during installation and maintenance.
- Do not block airflow vents or operate in dusty environments.
