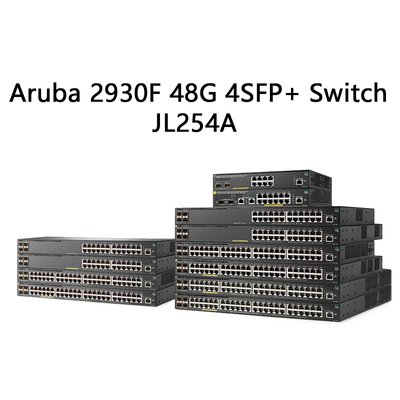

Hpe Aruba 2930f 48g Switch with 4 SFP+ Ports JL254A New and Original
Product Details:
| Brand Name: | Aruba |
| Model Number: | JL254A |
| Document: | HPE Aruba Networking 2930F ...29.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | 2930F 48G 4SFP+ (JL254A) | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Aruba OS |
| L3: | WLAN/STP/Lldp/Lacp | Transport Package: | Carton |
| Specification: | 449× 441 × 44mm | Trademark: | Aruba |
| Origin: | China | Condition: | New And Original |
| Highlight: | Original JL254A Switch,Original Aruba 2930f Switch,4 SFP+ Ports Aruba 2930f Switch |
||
Product Description

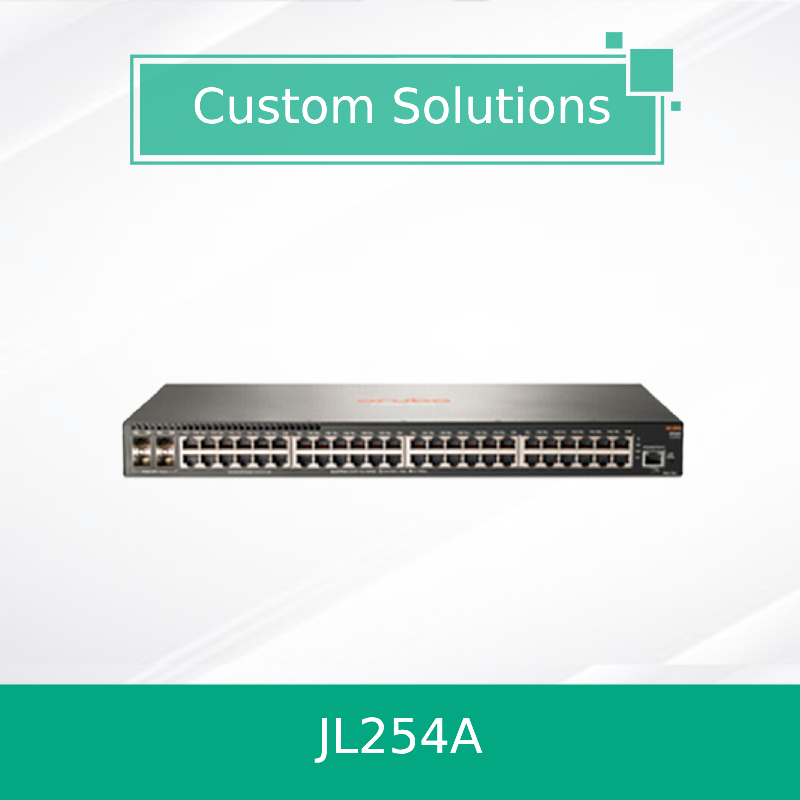

The HPE Aruba Networking 2930F 48G 4SFP+ Switch (JL254A) is a high-performance Layer 3 access switch designed for modern digital workplaces. This switch seamlessly integrates wired and wireless networks, providing optimized connectivity for mobile users and IoT devices. With 48 autosensing 10/100/1000BASE-T ports and 4 SFP+ 1/10GbE uplinks, it delivers robust performance and scalability for growing enterprise networks. The switch supports advanced features like VSF stacking, PoE+ capabilities, and comprehensive security protocols, making it an ideal solution for secure, high-speed network access.
- 48 RJ-45 autosensing 10/100/1000 ports + 4 SFP+ 1/10GbE uplink ports
- Virtual Switching Framework (VSF) stacking for simplified management
- Advanced Layer 3 routing including static IP, RIP, and Access OSPF
- Power over Ethernet Plus (PoE+) support for connected devices
- Cloud-ready with HPE Aruba Networking Central management
- Comprehensive security features including Dynamic Segmentation and ACLs
- Energy-efficient design with 80 PLUS Silver certified power supply
The 2930F Switch Series incorporates HPE Aruba Networking's ProVision ASIC for enhanced performance and programmability. It supports a wide range of networking protocols including IEEE 802.1Q VLANs, IEEE 802.1ax Link Aggregation, IEEE 802.3az Energy Efficient Ethernet, and IPv6 routing. The switch also features advanced QoS capabilities, RIP/OSPF routing protocols, and comprehensive security measures including IEEE 802.1X authentication and ACLs.
The JL254A operates as an intelligent access layer switch, connecting end devices to the network core. It utilizes HPE Aruba Networking's ProVision ASIC to process traffic with low latency while applying quality of service policies, security rules, and traffic prioritization. The switch can operate as a standalone unit or as part of a Virtual Switching Framework (VSF) stack, where multiple physical switches function as a single logical device for simplified management and increased redundancy.
The HPE Aruba Networking 2930F Switch is ideal for enterprise access layer deployments, campus networks, and medium to large business environments. It effectively supports:
- Digital workplace connectivity for mobile users and IoT devices
- Unified wired and wireless network infrastructure
- IP telephony and video surveillance systems with PoE+ support
- Converged network applications requiring quality of service
- Secure access deployment with role-based policy enforcement
| Specification | Value |
|---|---|
| Product Model | JL254A |
| Port Configuration | 48x RJ-45 10/100/1000, 4x SFP+ 1/10GbE |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 112 Mpps |
| Power Consumption | 46.6W (max), 32.7W (idle) |
| Dimensions (WxDxH) | 17.42 x 9.7 x 1.73 in (44.25 x 24.63 x 4.39 cm) |
| Weight | 6.83 lb (3.10 kg) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
- Simplified management through HPE Aruba Networking Central cloud platform
- Zero Touch Provisioning for rapid deployment and configuration
- Integrated security with ClearPass Policy Manager compatibility
- Energy efficient design with 80 PLUS Silver certification
- Limited lifetime warranty for long-term investment protection
- Flexible deployment options with both cloud and on-premises management
Our company provides comprehensive support for all HPE Aruba Networking products, including the 2930F Switch Series. We offer:
- 24/7 technical consultation and support services
- Warranty registration and claim processing assistance
- Integration services for complex network environments
- Flexible logistics options with global shipping capabilities
- Access to over 10 million inventory units across multiple brands
Q: What is the maximum power consumption of the JL254A switch?
A: The maximum power rating is 46.6W, with idle power consumption of 32.7W.
Q: Does this switch support PoE+ functionality?
A: The JL254A model does not support PoE+. For PoE+ capabilities, consider the JL256A model.
Q: Can I manage this switch through cloud-based systems?
A: Yes, the switch supports both cloud management via HPE Aruba Networking Central and on-premises management options.
Q: What is the warranty period for this product?
A: The switch comes with a limited lifetime warranty. See HPE's warranty terms for specific details.
Q: How many devices can be stacked using VSF technology?
A: Up to 8 switches can be stacked using Virtual Switching Framework technology.
- Ensure proper ventilation and adhere to specified operating temperatures
- Use compatible transceivers and cables for optimal performance
- Follow electrostatic discharge (ESD) precautions during installation
- Verify power requirements and use appropriate power cords for your region
- Implement proper grounding for electrical safety and noise reduction
- Regularly update firmware to maintain security and functionality
