Hpe Aruba Networking Cx 6200f 48g 4SFP+ Switch (JL726A)
Product Details:
| Brand Name: | Aruba |
| Model Number: | JL726A |
| Document: | JL726AHPE Aruba Networking ...nw.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | CX 6200F 48G (JL726A) | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Aruba OS |
| L3: | WLAN/STP/Lldp/Lacp | Poe: | Hpe Smart Rate |
| Transport Package: | Carton | Specification: | 449× 441 × 44mm |
| Trademark: | Extreme | Origin: | China |
| Highlight: | 48g Switch,JL726A Switch,4SFP+ Switch |
||
Product Description

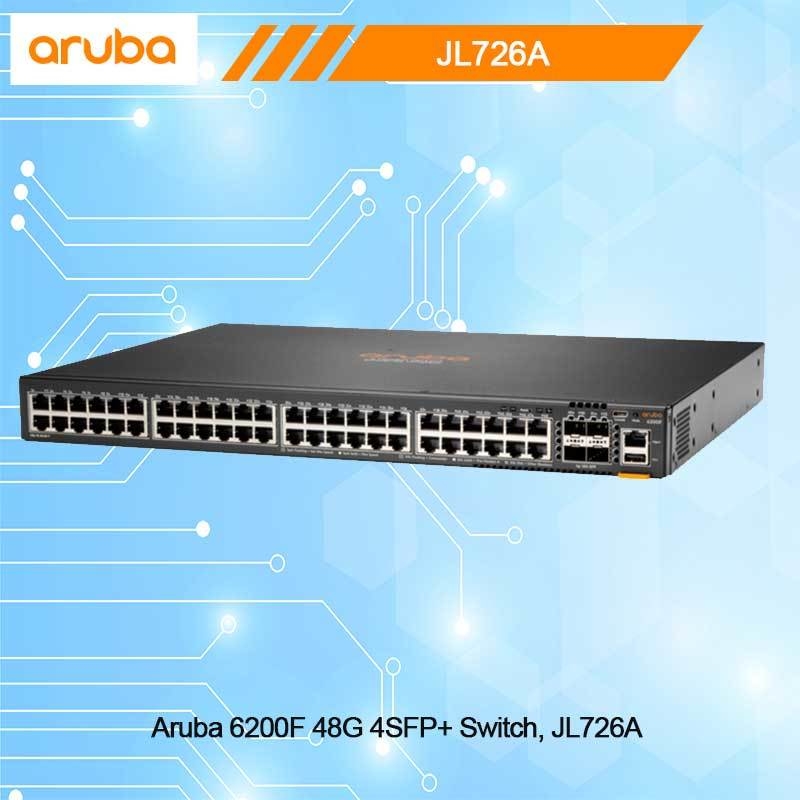

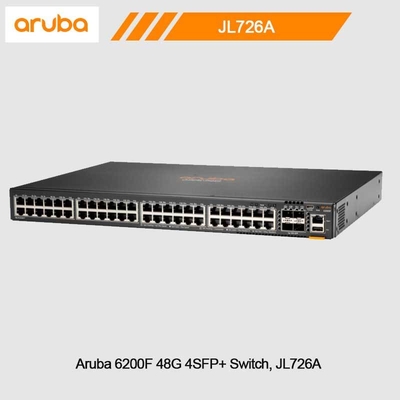

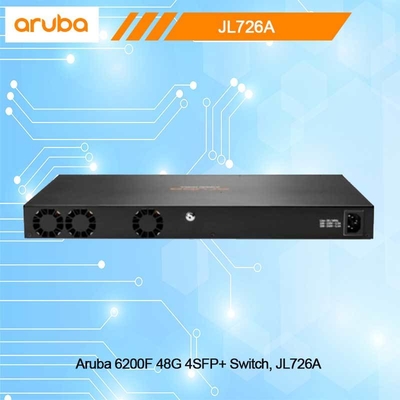

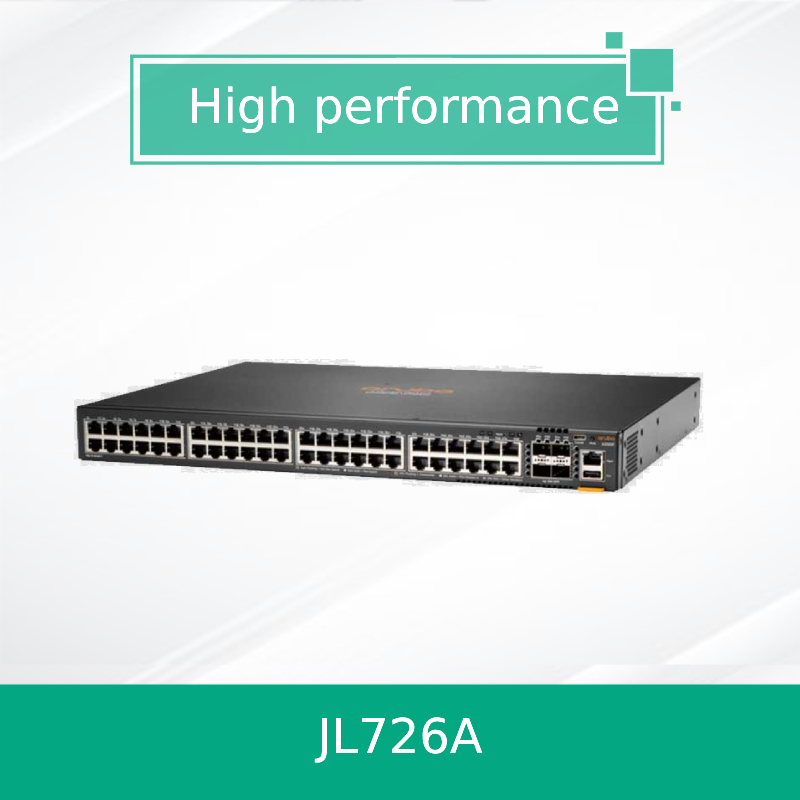

HPE Aruba Networking CX 6200F 48G 4SFP+ Switch (JL726A)
Product Overview
The HPE Aruba Networking CX 6200F 48G 4SFP+ Switch (Model: JL726A) is a high-performance, stackable access switch designed for modern enterprise networks. Part of the robust 6200 Switch Series, this switch delivers enterprise-class connectivity, advanced security, and seamless management. It features 48x 1GbE downlink ports and 4x 1/10G SFP+ uplink ports, providing flexible and scalable networking solutions for campuses, branches, and data centers.
Key Features
- 48 x 10/100/1000BASE-T ports + 4 x 1/10G SFP+ uplinks
- HPE Aruba Networking CX Operating System with built-in analytics
- VSF stacking support for up to 8 units (384 ports)
- Advanced security with dynamic segmentation and ACLs
- Energy Efficient Ethernet (EEE) and hot-patching support
Core Technologies
The JL726A switch leverages HPE's Gen7 ASIC architecture for high throughput and low latency. It supports a wide range of protocols including OSPF, RIP, VLAN, QoS, IPv6, and MACsec. The built-in Network Analytics Engine (NAE) enables real-time monitoring and troubleshooting via Python scripts and REST APIs.
How It Works
The switch operates as a Layer 2/Layer 3 access device, forwarding traffic at wire speed using virtual output queuing (VQQ) to prevent head-of-line blocking. It integrates with HPE Aruba Networking Central for cloud-based management and supports dynamic segmentation for consistent policy enforcement across wired and wireless networks.
Applications
Ideal for enterprise access layers, campus networks, and IoT deployments. Commonly used in education, healthcare, retail, and government sectors for connecting users, cameras, phones, and wireless APs.
Specifications
| Attribute | Value |
|---|---|
| Model | JL726A |
| Ports | 48 x 1GbE RJ45, 4 x SFP+ |
| Switching Capacity | 176 Gbps |
| Throughput | 130.9 Mpps |
| Power Consumption | 33W (idle), 53W (max) |
| Dimensions | 1.72" x 17.42" x 11.2" |
| Weight | 3.90 kg (8.59 lbs) |
Advantages
- Unified management with HPE Aruba Networking Central
- High availability with VSF stacking and hot-patching
- Advanced security features including TPM and dynamic segmentation
- Low latency and high buffering for performance-intensive applications
Service & Support
We offer lifetime limited warranty, 24/7 technical support, and global shipping. Customized integration services and volume discounts are available.
FAQ
Q: Does this switch support PoE?
A: The JL726A model does not support PoE. For PoE versions, consider JL727B or JL728B.
Q: Can I stack with other 6200 series switches?
A: Yes, it supports VSF stacking with up to 8 compatible 6200F or 6200M switches.
Q: Is this switch compatible with third-party transceivers?
A: Yes, via Unsupported Transceiver Mode (UTM), though without warranty.
Precautions
- Operating temperature: 0°C to 45°C
- Use certified power sources and grounding
- Ensure firmware is up to date for security patches
- Follow local EMC and safety regulations
