Jl660A/Jl662A/Jl665A/Jl667A/Jl675A/Jl676A Enterprise Switches Original Genuine Brand New Cx 6300f (JL667A)
Product Details:
| Brand Name: | Aruba |
| Model Number: | JL667A |
| Document: | JL667AHPE Aruba Networking ...nw.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | CX 6300F (JL667A) | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Aruba OS |
| L3: | WLAN/STP/Lldp/Lacp | Poe: | Hpe Smart Rate |
| Transport Package: | Carton | Specification: | 449× 441 × 44mm |
| Trademark: | Extreme | Origin: | China |
| Highlight: | Jl676A Enterprise Switches,Brand New Enterprise Switches |
||
Product Description

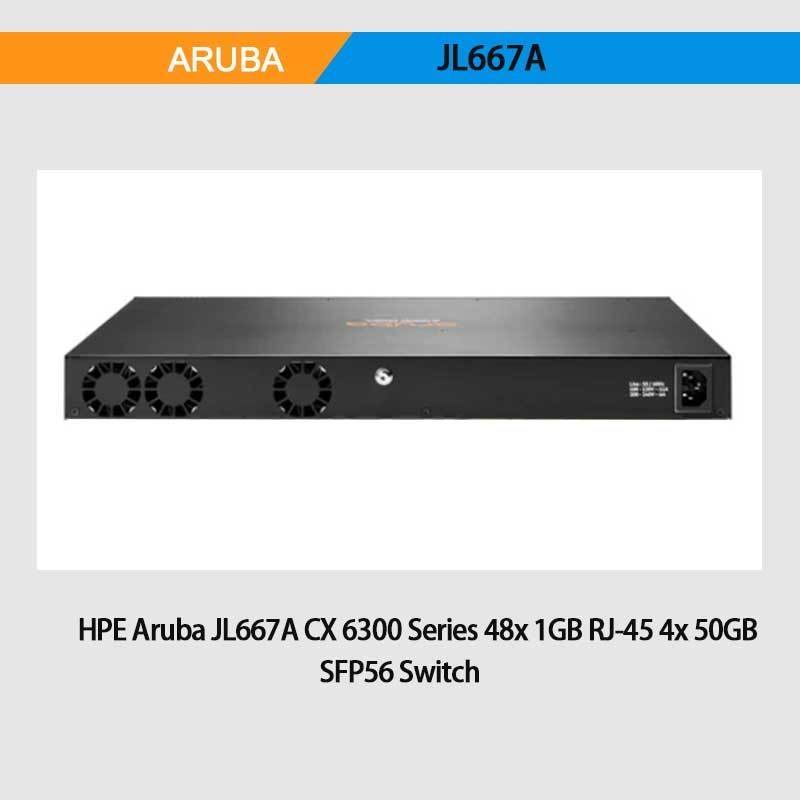

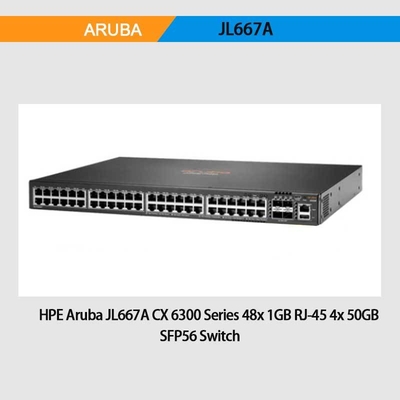

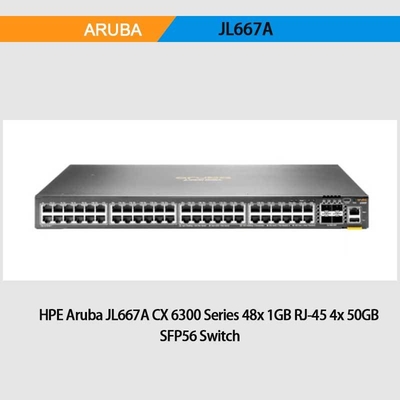

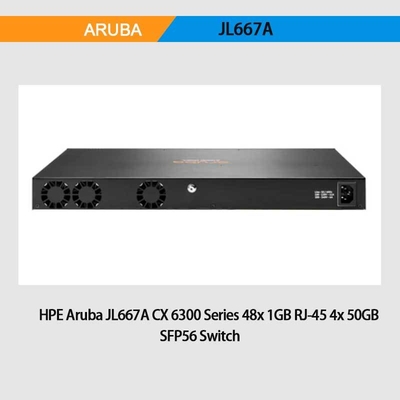

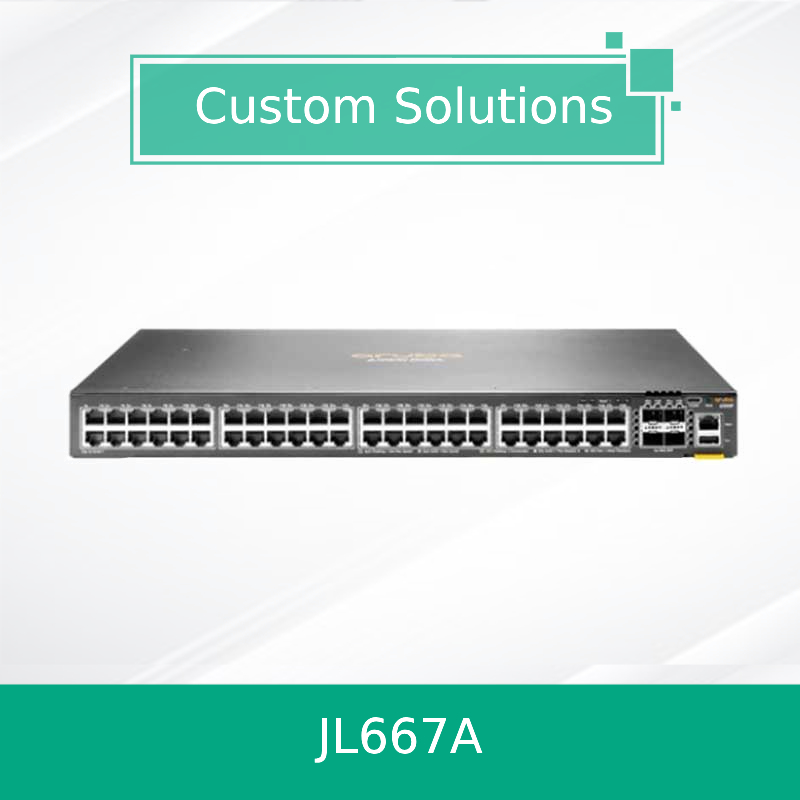

HPE Aruba Networking CX 6300F 48-Port 1GbE Class 4 PoE and 4-Port SFP56 Switch (JL667A)
1. Product Overview
The HPE Aruba Networking CX 6300F Switch (Model: JL667A) is a high-performance, fixed-configuration, Layer 3 stackable switch designed for modern enterprise access and aggregation layers. It combines robust PoE capabilities with high-speed uplinks, making it ideal for bandwidth-intensive environments supporting IoT, mobile, and cloud applications. This switch is part of the advanced Aruba CX 6300 Series, delivering reliability, security, and scalability in a compact 1U form factor.
2. Key Characteristics
- 48 x 10/100/1000BASE-T PoE+ ports (up to 30W per port)
- 4 x 1G/10G/25G/50G SFP56 uplink ports
- Built-in USB-C and RJ45 console ports, OOBM port, and USB Type-A host port
- Fixed internal power supply (200W) with no hot-swap support
- Non-blocking switching capacity of 496 Gbps and throughput of 369 Mpps
- Supports HPE Aruba Networking CX OS with cloud-native management
- Integrated security features including MACsec, ACLs, and Dynamic Segmentation
3. Core Technologies & Protocols
The JL667A switch supports a wide range of industry standards and protocols, including:
- IEEE 802.3af/at PoE, IEEE 802.3az EEE, IEEE 802.1Q VLANs, IEEE 802.1X
- BGP, OSPFv2/v3, VRF, VXLAN, EVPN
- sFlow, IPFIX, RMON, SNMPv3, REST API
- LLDP, LACP, VRRP, BFD, UDLD
- FIPS 140-2 cryptography, TPM for secure boot
4. Working Principle
The Aruba CX 6300F switch operates on a distributed architecture using Gen7 to deliver wire-speed switching and routing. It uses a microservices-based OS (HPE Aruba Networking CX OS) for automated operations and integrates with HPE Aruba Networking Central for unified cloud management. The switch supports Virtual Stacking Framework (VSF) for simplified scaling and high availability.
5. Applications & Usage
Ideal for:
- Enterprise campus access and aggregation layers
- IoT and mobile device connectivity with high-power PoE
- High-density wireless deployments with multi-gigabit support
- Data center top-of-rack (ToR) and out-of-band management (OOBM)
- Education, healthcare, and retail networks requiring secure segmentation
6. Technical Specifications
| Feature | Specification |
|---|---|
| Model | JL667A |
| Ports | 48 x 1GbE PoE+, 4 x SFP56 (1G/10G/25G/50G) |
| PoE Budget | 740W Max |
| Switching Capacity | 496 Gbps |
| Throughput | 369 Mpps |
| Latency | <5 µs (1G), 3.49 µs (50G) |
| Power Supply | Fixed 200W AC |
| Dimensions (HxWxD) | 1.73" x 17.4" x 12.9" |
| Weight | 4.46 kg (9.83 lb) |
| Stacking | Up to 10 units with VSF |
7. Advantages & Selling Points
- High-density PoE+ support for IP phones, cameras, and APs
- Future-proof with multi-gig and 50G uplink capabilities
- Simplified management with HPE Aruba Networking Central and CX Mobile App
- Advanced security with Dynamic Segmentation and built-in TPM
- Low latency and high buffering for performance-sensitive applications
8. Service & Support
We offer:
- Limited Lifetime Warranty
- 24/7 technical support and consultation
- Fast delivery with global shipping options
- On-site support and hardware replacement services
- Integration and configuration assistance
9. Frequently Asked Questions (FAQ)
Q: What is the maximum PoE power per port?
A: Up to 30W per port, compliant with IEEE 802.3at.
Q: Does this switch support stacking?
A: Yes, it supports VSF stacking with up to 10 units.
Q: Can I use 50G transceivers in the SFP56 ports?
A: Yes, but only with supported 50G DAC cables. Transceivers are not supported on all models.
Q: Is the power supply hot-swappable?
A: No, the JL667A model has a fixed internal power supply.
Q: What management options are available?
A: CLI, Web GUI, HPE Aruba Networking Central, and REST API.
10. Precautions
- Ensure proper ventilation and operating temperature (0°C to 45°C)
- Use only compatible transceivers and DAC cables
- Verify PoE budget before connecting high-power devices
- Follow ESD precautions during installation
- Regular firmware updates recommended for security and performance
