Jl666A 6300f Serials 24X Ports 10/100/1000baset Poe+ Ports and 4X 1/10/25/50g SFP Ports Network Ethernet Switch
Product Details:
| Brand Name: | Aruba |
| Model Number: | JL666A |
| Document: | JL666AHPE Aruba Networking ...EN.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | CX 6300F (JL666A) | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Aruba OS |
| L3: | WLAN/STP/Lldp/Lacp | Poe: | Hpe Smart Rate |
| Transport Package: | Carton | Specification: | 449× 441 × 44mm |
| Trademark: | Extreme | Origin: | China |
| Highlight: | 10/100/1000baset Poe+ Ports Ethernet Switch,6300f Serials 24X Ports Ethernet Switch,6300f Serials 1/10/25/50g Ethernet Switch |
||
Product Description

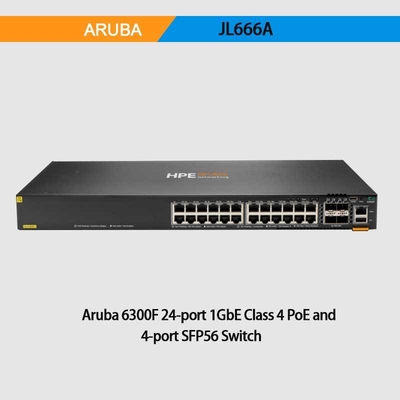

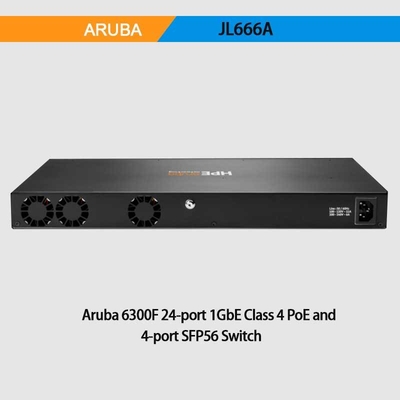

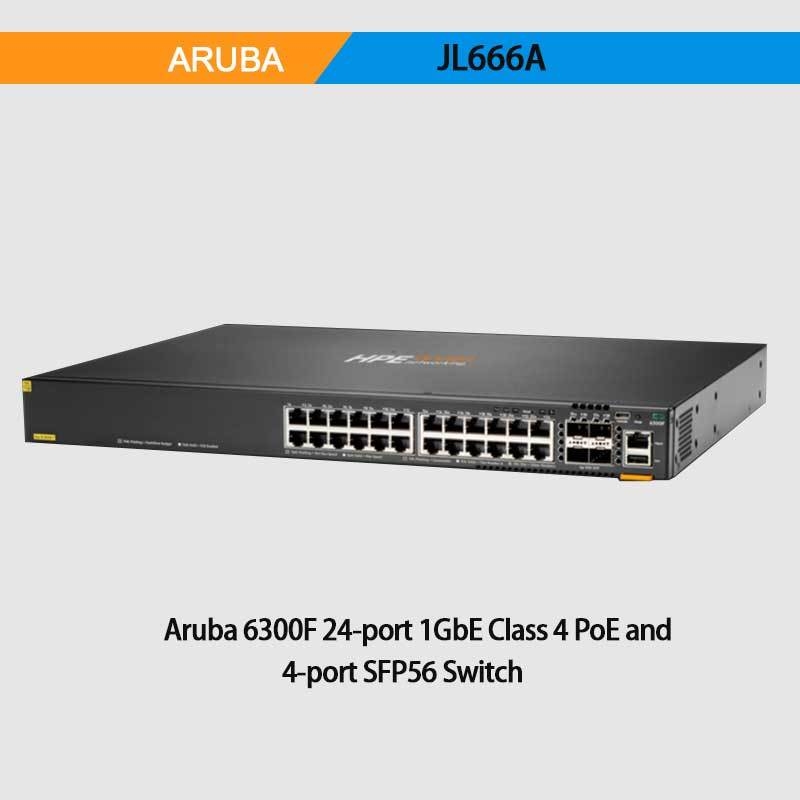

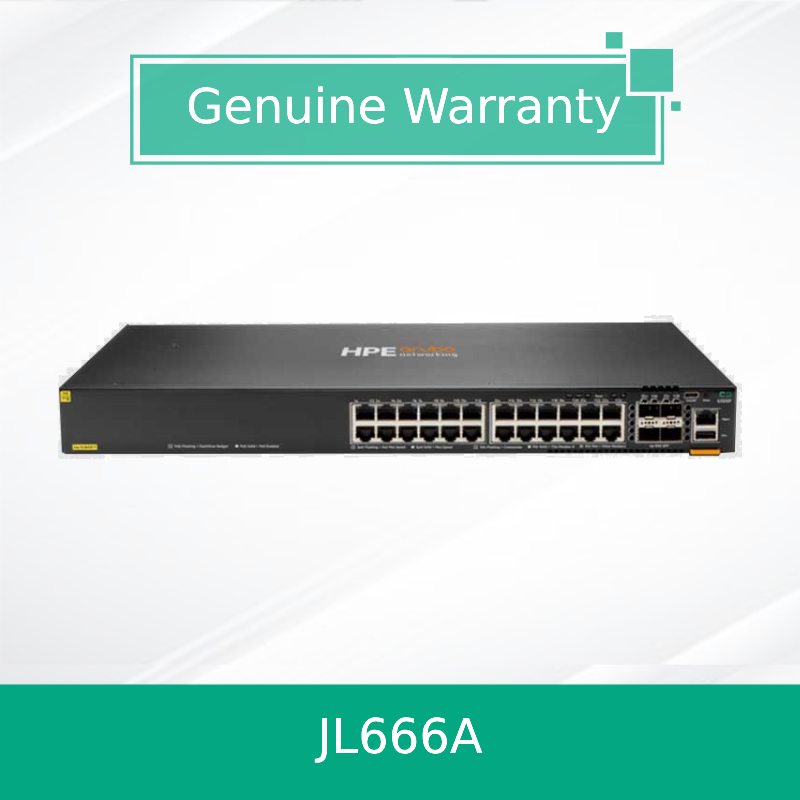

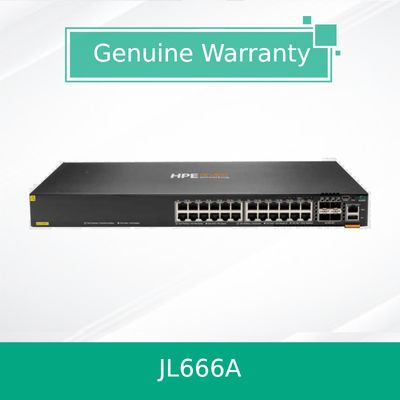

HPE Aruba Networking CX 6300F Switch (JL666A) - 24-port 1GbE Class 4 PoE with 4 SFP56 Ports
Product Overview
The HPE Aruba Networking CX 6300F Switch (Model: JL666A) is a high-performance, stackable Layer 3 switch designed for modern access, aggregation, and top-of-rack data center deployments. It combines advanced cloud-native architecture with programmable operations and built-in network analytics for superior visibility and control. This switch delivers robust performance with 24x 1GbE Class 4 PoE ports and 4x SFP56 ports supporting multi-gigabit speeds, making it ideal for powering IoT devices, wireless access points, and high-bandwidth applications.
Key Features
- 24x 1GbE RJ45 ports with IEEE 802.3af/at PoE support (30W per port)
- 4x SFP56 ports supporting 1G/10G/25G/50G speeds
- Up to 370W total PoE budget
- Virtual Switching Framework (VSF) for stacking up to 10 units
- Gen7 ASIC architecture with 448 Gbps switching capacity and 334 Mpps throughput
- Built-in Network Analytics Engine (NAE) for real-time monitoring and automation
- Support for BGP, EVPN, VXLAN, VRF, MACsec 256, and PTP
Core Technologies
The CX 6300F switch leverages a 7th Generation ASIC architecture for low-latency, non-blocking performance. It supports advanced protocols including BGP, EVPN, VXLAN, and VRF for scalable segmentation and multi-tenancy. The switch also features HPE Smart Rate multi-gigabit technology, IEEE 802.3bt PoE, and MACsec 256 encryption for secure, high-speed connectivity.
How It Works
The switch operates on a fully distributed architecture, performing wire-speed switching and routing across all ports. It uses a quad-core ARM Cortex A72 processor and 8 GB DDR4 memory to handle high-throughput traffic. The built-in Time Series Database and Network Analytics Engine continuously monitor network health, enabling proactive troubleshooting and automated policy enforcement via HPE Aruba Networking Central.
Applications
Ideal for enterprise access layers, campus networks, and data center top-of-rack deployments. Supports high-density Wi-Fi 6/6E access points, IoT devices, and IP cameras with Class 4 PoE. Suitable for healthcare, education, retail, and industrial environments requiring reliable, high-power Ethernet and multi-gigabit uplinks.
Specifications
| Attribute | Value |
|---|---|
| Model | JL666A |
| Ports | 24x 1GbE PoE, 4x SFP56 |
| PoE Budget | 370W |
| Switching Capacity | 448 Gbps |
| Throughput | 334 Mpps |
| Latency | 1.46μSec (10G) |
| Power Consumption | 52W (idle), 67W (max) |
| Dimensions | 44.2 x 32.7 x 4.4 cm |
| Weight | 4.95 kg |
Advantages
- Superior PoE density with 30W per port for high-demand devices
- Flexible uplink options with 50G DAC support for stacking and interconnects
- Cloud-native management with HPE Aruba Networking Central and AI insights
- Future-proof design with support for EVPN-VXLAN and software-defined segmentation
- Enhanced security with dynamic segmentation, MACsec, and role-based policies
Service & Support
We offer comprehensive support including warranty, technical consultation, and 24/7 customer service. Our professional team ensures rapid deployment, configuration validation, and ongoing network optimization. We also provide integration services and HPE GreenLake for Networking NaaS options for flexible operational models.
FAQ
Q: What is the maximum PoE power per port?
A: Each port supports up to 30W (Class 4) with a total budget of 370W.
Q: Can I stack this switch with other CX models?
A: The CX 6300F can stack with other CX 6300F and CX 6300M models using VSF.
Q: Does it support 50G transceivers?
A: 50G is supported only via DAC cables for stacking and inter-switch links.
Q: Is MACsec encryption supported?
A: Yes, MACsec 256-bit encryption is supported on all ports.
Precautions
- Ensure adequate power capacity for PoE devices.
- Use only HPE-supported DACs and optics for guaranteed performance.
- Do not mix CX 6300L models in VSF stacks with CX 6300F/M switches.
- VSF and VSX cannot be used simultaneously on the same device.
- Operating temperature: 0°C to 45°C (32°F to 113°F).
