Hpe Networking Instant on Switch 8p Gigabit Cl4 Poe 2p SFP 124W 1930 (JL681A)
Product Details:
| Brand Name: | Aruba |
| Model Number: | JL681A |
| Document: | JL681AHPE Networking Instan...nw.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | 1930 (JL681A) | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Aruba OS |
| L3: | WLAN/STP/Lldp/Lacp | Poe: | Hpe Smart Rate |
| Transport Package: | Carton | Specification: | 449× 441 × 44mm |
| Trademark: | Extreme | Origin: | China |
| Highlight: | 1930 Hpe Networking Instant on Switch,SFP Hpe Networking Instant on Switch |
||
Product Description

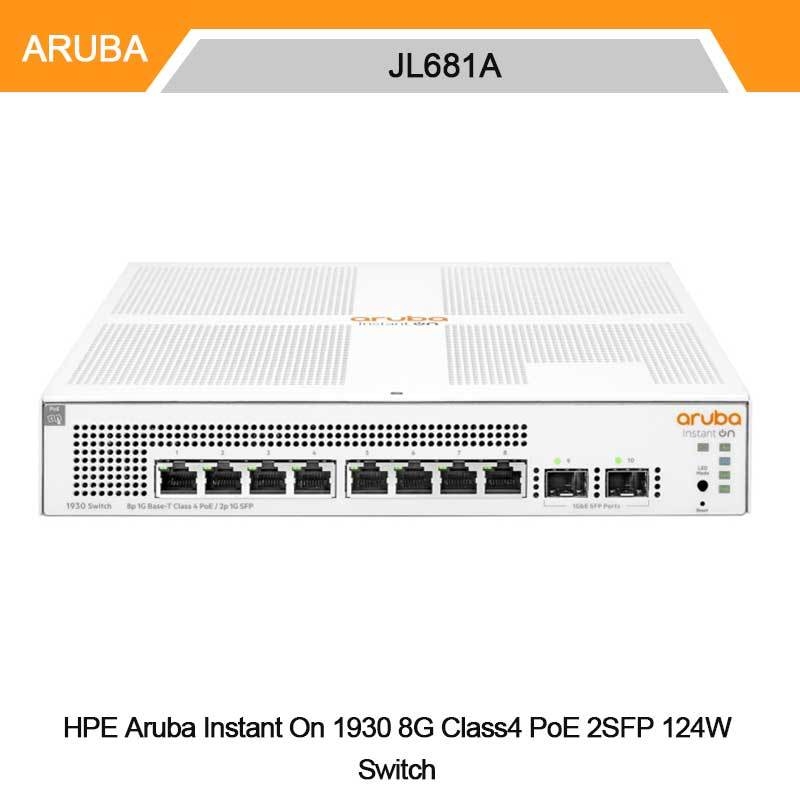

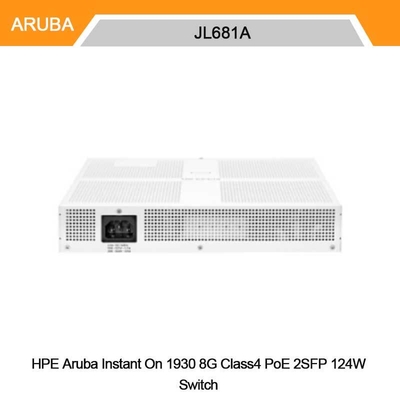

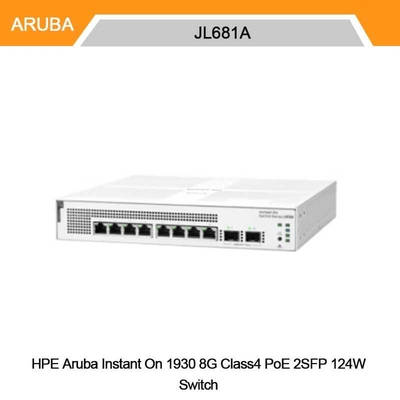

HPE Aruba Instant On 1930 Series 8-Port Gigabit Class 4 PoE Smart Managed Switch (JL681A)
1. Product Overview
The HPE Aruba Instant On 1930 Series JL681A is a high-performance, Layer 2+ smart-managed Gigabit Ethernet switch designed specifically for small to medium-sized businesses. This 8-port switch combines ease of use with advanced features, offering 124W of Class 4 PoE budget to power devices such as wireless access points, IP phones, and surveillance cameras. Managed via an intuitive cloud portal, mobile app, or local web interface, it provides reliable, secure, and scalable networking without licensing fees.
2. Key Features
- 8 x Gigabit Ethernet ports with Class 4 PoE (IEEE 802.3at), delivering up to 30W per port
- 2 x dedicated 1G SFP fiber uplink ports for expanded connectivity
- Cloud, mobile, and local web management with no subscription fees
- Fanless design for silent operation in office environments
- Advanced security: ACLs, IEEE 802.1X, VLANs, RADIUS, and TPM-based encryption
- Auto-voice VLAN and QoS for optimized VoIP performance
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
3. Core Technologies & Standards
The switch supports a wide range of industry standards including IEEE 802.3af/at (PoE), 802.1Q (VLANs), 802.1X (Port Access Control), 802.3ad (LACP), LLDP/LLDP-MED, IPv4/IPv6, and Spanning Tree Protocols (STP/RSTP/MSTP). It also features TPM-based security for secure cloud connections.
4. How It Works
The JL681A switch uses smart auto-configuration to detect and prioritize PoE devices such as Aruba access points and VoIP phones. Traffic is segmented via VLANs and prioritized through QoS settings. Management can be done remotely via the cloud or locally through a web GUI, ensuring seamless operation and quick troubleshooting.
5. Applications
Ideal for cafes, design studios, tech startups, retail stores, and small offices. Supports deployments involving Aruba wireless APs, IP surveillance systems, VoIP telephony, and IoT device networks.
6. Specifications
| Attribute | Value |
|---|---|
| Model Number | JL681A |
| Ports | 8 x 10/100/1000 PoE+, 2 x 1G SFP |
| PoE Budget | 124W (Class 4) |
| Switching Capacity | 20 Gbps |
| Throughput | 14.88 Mpps |
| Power Supply | Internal |
| Dimensions (W x D x H) | 10 x 10 x 1.73 in |
| Weight | 4.66 lb (2.11 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
7. Advantages
- No recurring license fees — all features included
- Silent fanless operation suitable for open offices
- Integrated cloud management with multi-site support
- High PoE power budget for demanding deployments
- Lifetime warranty with 90-day 24/7 phone support
8. Service & Support
All HPE Aruba Instant On switches come with a limited lifetime warranty, including 90-day 24/7 phone support and lifetime chat support. Next-business-day hardware replacement is available for the first 30 days. Optional Foundation Care support packages are available for extended coverage.
9. Frequently Asked Questions
Q: Can this switch be managed without an internet connection?
A: Yes, it can be fully managed via the local web GUI without internet access.
Q: Does it support VLANs for network segmentation?
A: Yes, it supports up to 256 VLANs with advanced traffic segmentation.
Q: Is the PoE power budget sufficient for 8 full PoE devices?
A: The 124W budget supports up to 8 devices at 15.4W each, or fewer high-power devices.
Q: Can I use fiber SFP modules with this switch?
A: Yes, the two SFP ports support various 1G fiber transceivers.
10. Precautions
- Ensure proper ventilation to avoid overheating.
- Use compatible HPE Aruba SFP transceivers for guaranteed performance.
- Verify power requirements before connecting high-power PoE devices.
- Avoid mounting in dusty or humid environments beyond specified limits.
