Jl663A Network Switch 6300m Series Switch 48-Port 1gbe and 4-Port Jl663A SFP56 Switch
Product Details:
| Brand Name: | Aruba |
| Model Number: | JL663A |
| Document: | JL663AHPE Aruba Networking ...nw.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | CX 6300M JL663A | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Aruba OS |
| L3: | WLAN/STP/Lldp/Lacp | Poe: | Hpe Smart Rate |
| Transport Package: | Carton | Specification: | 449× 441 × 44mm |
| Trademark: | Extreme | Origin: | China |
| Highlight: | 4-Port SFP56 Switch,6300M Series Switch,48-Port SFP56 Switch |
||
Product Description

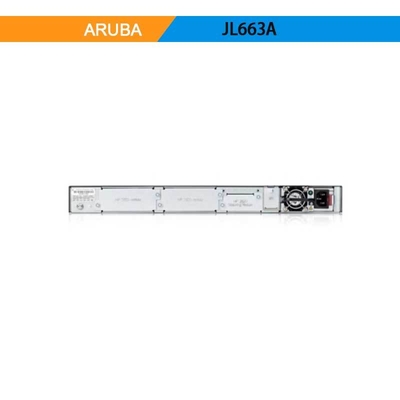

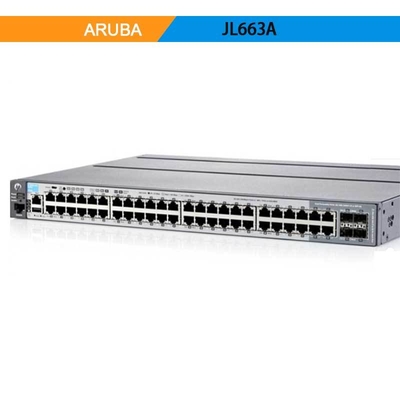

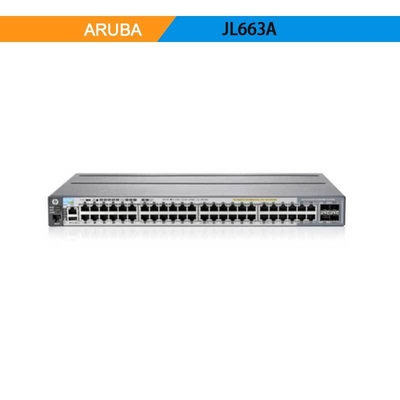

HPE Aruba Networking CX 6300M 48-Port 1GbE Switch (JL663A)
Product Overview
The HPE Aruba Networking CX 6300M JL663A is a high-performance, stackable Layer 3 switch designed for modern enterprise access, aggregation, and small core deployments. This 48-port 1GbE switch offers advanced features including high-speed uplinks, robust security, and flexible programmability. It is ideal for organizations requiring reliable, scalable, and secure networking infrastructure.
Key Features
- 48 x 10/100/1000BASE-T ports + 4 x 1G/10G/25G/50G SFP56 uplink ports
- Virtual Switching Framework (VSF) stacking support for up to 10 units
- High availability with hot-swappable power supplies and fan trays
- Advanced Layer 3 routing (BGP, OSPF, VRF, EVPN, VXLAN)
- Built-in Aruba CX OS with cloud-native management via Aruba Central
- Energy-efficient design with IEEE 802.3az support
Core Technologies
The JL663A leverages HPE's 7th Generation for high-performance switching and deep visibility. It supports a wide range of protocols including BGP, OSPFv2/v3, VXLAN, EVPN, and IEEE 802.1AE MACsec encryption. The switch also features Aruba's Network Analytics Engine (NAE) for real-time monitoring and troubleshooting.
How It Works
The switch operates as a fully distributed system using Aruba Gen7 to deliver wire-speed performance. It uses VSF stacking to combine multiple physical switches into a single logical unit, simplifying management and increasing resiliency. The built-in Aruba CX OS provides a programmable, microservices-based architecture for automation and security.
Applications
- Enterprise campus access and aggregation layers
- Data center top-of-rack (ToR) deployments
- High-density Wi-Fi 6 and IoT deployments
- Out-of-band management (OOBM) for server racks
- Converged wired and wireless networks
Specifications
| Attribute | Value |
|---|---|
| Model | JL663A |
| Ports | 48 x 1GbE RJ45, 4 x SFP56 (1G/10G/25G/50G) |
| Switching Capacity | 496 Gbps |
| Forwarding Rate | 369 Mpps |
| Power Supply | Hot-swappable, JL085A supported |
| Dimensions (HxWxD) | 1.73" x 17.4" x 15.2" |
| Weight | 5.51 kg (12.14 lb) |
| PoE Support | No |
Advantages
- High port density with multi-gigabit uplink flexibility
- Zero-touch provisioning and centralized management via Aruba Central
- Advanced security features including Dynamic Segmentation and TPM
- Low latency and high buffering for performance-intensive applications
- Lifetime warranty with 24/7 support options
Service & Support
We offer lifetime warranty, 24/7 technical support, and fast delivery. Our team provides pre-sales consultation, post-sales integration, and ongoing maintenance services. Custom configuration and bulk order discounts are available.
FAQ
Q: Does the JL663A support PoE?
A: No, the JL663A does not support Power over Ethernet. For PoE models, consider the JL659A or JL665A.
Q: What is the maximum stacking bandwidth?
A: The switch supports up to 200 Gbps stacking bandwidth using VSF.
Q: Is this switch compatible with Aruba Central?
A: Yes, it is fully manageable via Aruba Central for cloud-based orchestration.
Precautions
- Ensure proper airflow and operating temperature (0°C to 45°C)
- Use only compatible transceivers and DAC cables
- VSF stacking is not supported on 1G ports
- Follow ESD safety procedures during installation
