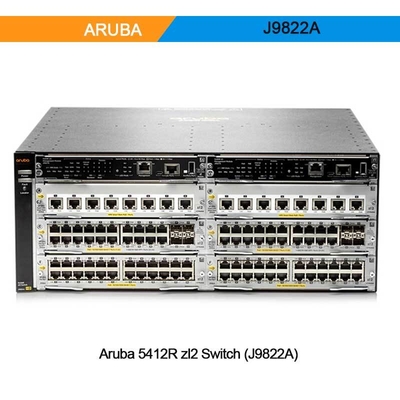

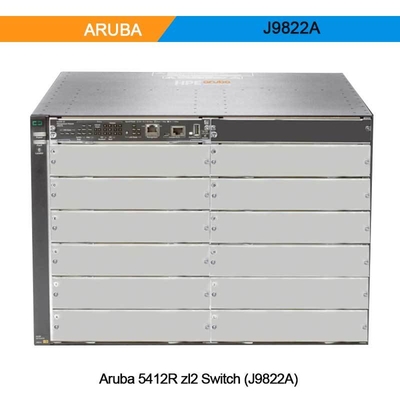

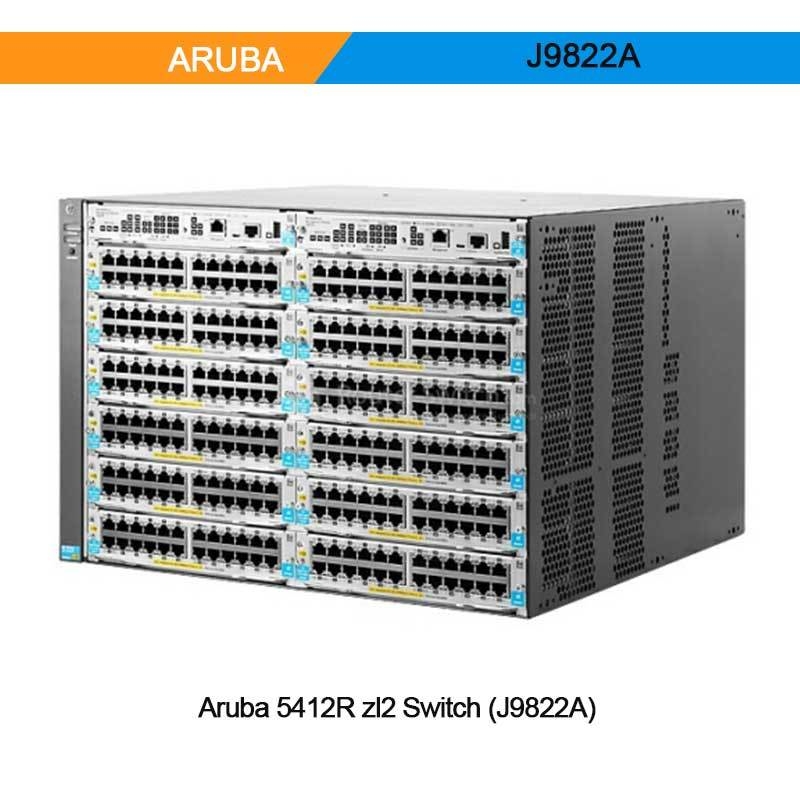

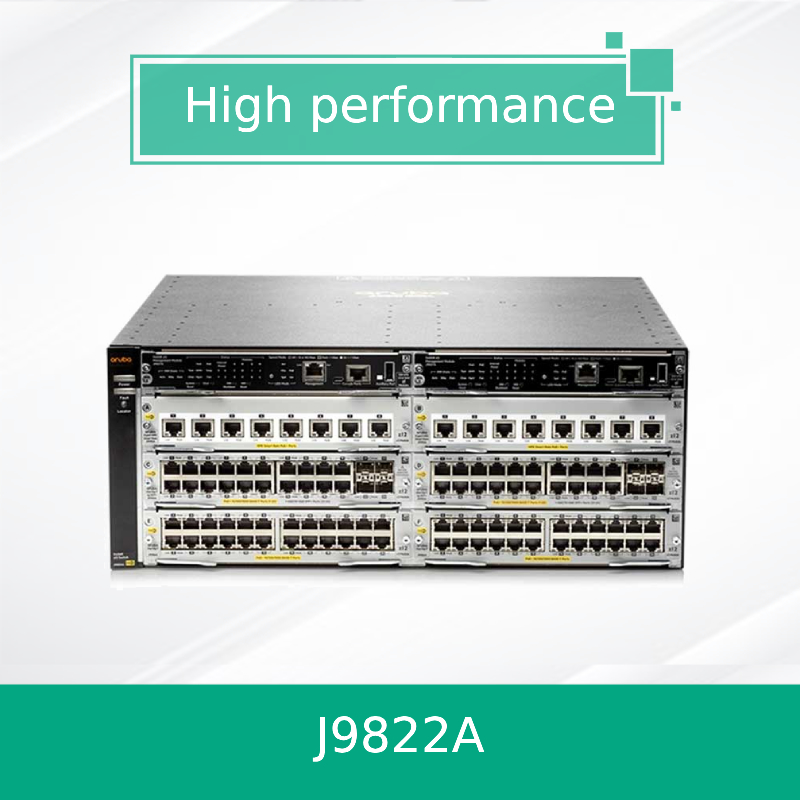

HPE Aruba Networking 5412R zl2 Switch (J9822A)

1. Product Overview

The HPE Aruba Networking 5412R zl2 Switch (J9822A) is a high-performance, modular Layer 3 switch designed for enterprise and campus environments. It supports advanced features such as VSF stacking, dynamic segmentation, and high-density PoE+ connectivity. This switch is ideal for organizations requiring scalable, resilient, and secure networking infrastructure.

2. Key Characteristics

• Modular design with 12 slots for flexible expansion
• Up to 288 PoE+ ports for powering devices like APs and IP cameras
• VSF stacking technology for simplified management and high availability
• Support for multi-gigabit speeds via HPE Smart Rate technology
• Advanced security features including dynamic segmentation and NAC integration
• REST APIs and OpenFlow support for SDN readiness

3. Core Technologies

The 5412R zl2 switch leverages ProVision ASIC technology, providing a 2 Tbps crossbar switching fabric with low latency. It supports a wide range of protocols including OSPF, BGP, IPv6, and VXLAN. Key technologies include:

• Virtual Switching Framework (VSF)
• Dynamic Segmentation
• Quality of Service (QoS) with advanced traffic prioritization
• IEEE 802.3at PoE+ and Energy Efficient Ethernet (EEE)

4. Working Principle

The switch operates by processing and forwarding data packets based on Layer 2 and Layer 3 information. It uses hardware-based forwarding engines to ensure high throughput and low latency. The management module handles control plane functions, while the interface modules manage data plane operations. VSF stacking allows multiple physical switches to operate as a single logical device, simplifying management and enhancing redundancy.

5. Applications

The Aruba 5412R zl2 is suitable for:

• Enterprise campus networks
• Data center aggregation
• High-density wireless deployments (supporting APs and IoT devices)
• Unified communications and VoIP systems
• Secure government and educational networks

6. Specifications

7. Advantages

• High availability with redundant management and power supplies
• Scalable architecture supporting up to 12 interface modules
• Advanced security with dynamic segmentation and NAC integration
• Low latency (as low as 1.5μs for 40G ports)
• Energy efficient with IEEE 802.3az EEE support

8. Service & Support

We offer comprehensive support including:

• Limited lifetime warranty
• 24/7 technical consultation
• Fast delivery from large inventory
• On-site support options available
• Integration and configuration assistance

9. FAQ

Q: What is the maximum PoE power output?
A: The switch supports IEEE 802.3at PoE+, providing up to 30W per port.

Q: Does it support IPv6?
A: Yes, it fully supports IPv6 routing and security features.

Q: Can I stack multiple units?
A: Yes, VSF stacking allows up to 10 units to be managed as one.

Q: What management options are available?
A: It can be managed via CLI, web interface, HPE Aruba Networking Central, or legacy management software.

10. Precautions

• Ensure proper ventilation and operating temperature (0°C to 45°C)
• Use only supported transceivers (revision "B" or later)
• Follow EMC and safety standards during installation
• Verify power requirements for PoE devices
• Regularly update firmware for security and performance
