Hpe Aruba Networking Cx 6300m 24-Port 1gbe Class 4 Poe and 4-Port SFP56 Switch (JL662A)
Product Details:
| Brand Name: | Aruba |
| Model Number: | JL662A |
| Document: | JL662A HPE Aruba Networking...nw.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | CX 6300M JL662A | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Aruba OS |
| L3: | WLAN/STP/Lldp/Lacp | Poe: | Hpe Smart Rate |
| Transport Package: | Carton | Specification: | 449× 441 × 44mm |
| Trademark: | Extreme | Origin: | China |
| Highlight: | Hpe Aruba Networking Cx 6300m Switch,24-Port SFP56 Hpe Aruba Switch,Class 4 Poe Hpe Aruba Switch |
||
Product Description

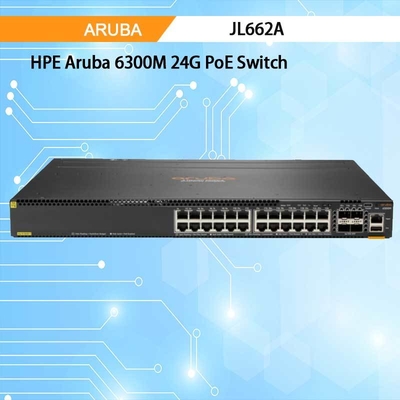

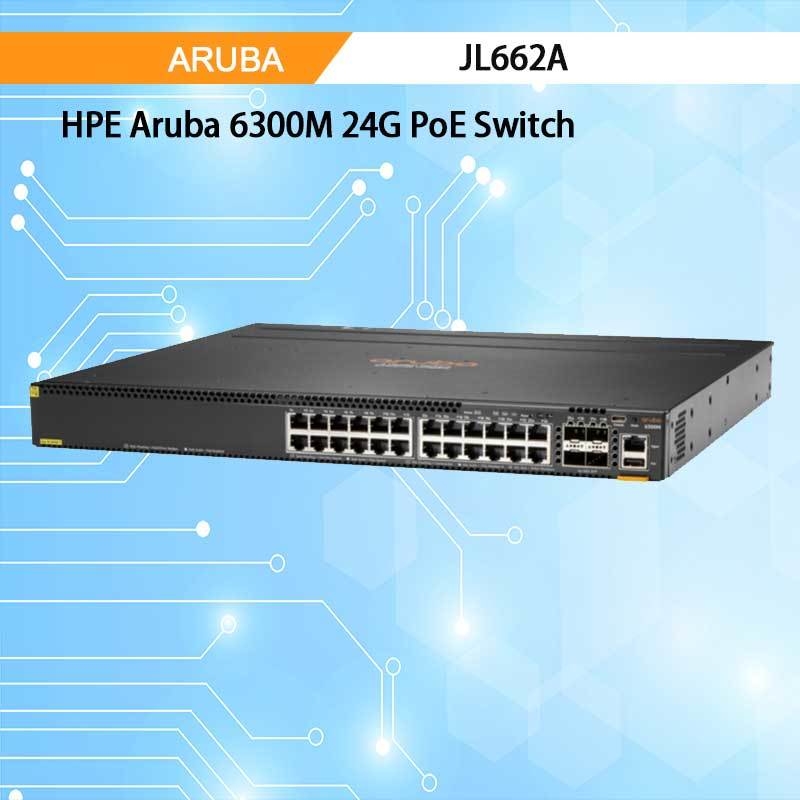

HPE Aruba Networking CX 6300M 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL662A)
Product Overview
The HPE Aruba Networking CX 6300M Switch Series (JL662A) is a high-performance, stackable Layer 3 switch designed for modern enterprise access, aggregation, and data center top-of-rack deployments. This switch combines advanced features like high-power PoE, multi-gigabit connectivity, and robust security in a compact 1U form factor. Built with the cloud-native HPE Aruba Networking CX operating system, it offers automation, visibility, and scalability for demanding network environments.
Key Features
- 24 x 10/100/1000 BaseT PoE+ ports supporting up to 30W per port
- 4 x 1G/10G/25G/50G SFP56 uplink ports for high-speed connectivity
- IEEE 802.3af/at PoE support with a total PoE budget of 720W
- HPE Aruba Networking CX OS with REST API and cloud management via Aruba Central
- Virtual Stacking Framework (VSF) support for up to 10 switches
- Advanced security features including Dynamic Segmentation, ACLs, and MACsec
Core Technologies
The Aruba CX 6300M switch leverages Gen7 ASIC architecture for high-performance forwarding and low latency. It supports key protocols including BGP, OSPF, VXLAN, EVPN, and VRF. The switch also features HPE Smart Rate multi-gigabit technology, energy-efficient Ethernet (IEEE 802.3az), and advanced QoS mechanisms.
How It Works
The switch operates as a fully distributed system, utilizing hardware-based forwarding to deliver wire-speed performance. It uses HPE Aruba Networking CX OS for automated configuration, monitoring, and troubleshooting. The built-in Network Analytics Engine (NAE) provides deep visibility into traffic flows, application performance, and security events.
Applications
Ideal for enterprise campus networks, branch offices, and IoT deployments. Commonly used in:
- High-density Wi-Fi 6 and Wi-Fi 7 access point connectivity
- IP phone and video surveillance systems
- Data center top-of-rack switching
- Out-of-band management (OOBM) and network aggregation
Specifications
| Feature | Specification |
|---|---|
| Ports | 24 x 1GbE PoE+, 4 x SFP56 (1G/10G/25G/50G) |
| PoE Budget | 720W |
| Switching Capacity | 448 Gbps |
| Forwarding Rate | 334 Mpps |

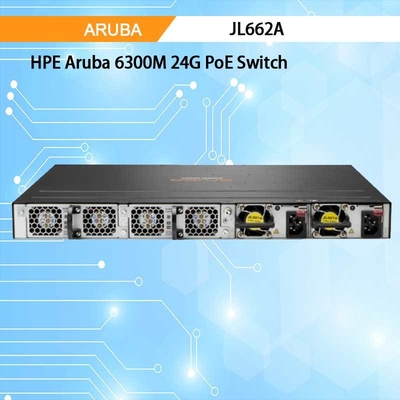

| Power Supplies | Dual hot-swappable (JL086A, JL087A, JL670A) |
| Dimensions (HxWxD) | 1.73" x 17.4" x 15.2" |
| Weight | 12.23 lb (5.55 kg) |
Advantages
- High availability with VSF stacking and hot-swappable power supplies
- Advanced security with TPM, ACLs, and Dynamic Segmentation
- Low latency and high buffering for performance-sensitive applications
- Simplified management via Aruba Central and CX Mobile App
- Future-proof with multi-gigabit and 50G uplink support
Service & Support
We offer lifetime warranty, 24/7 technical support, and global shipping. Our team provides pre-sales consultation, post-sales integration, and remote configuration assistance. All products are tested and guaranteed to be genuine and brand new.
FAQ
Q: What is the maximum PoE power per port?
A: Up to 30W per port (IEEE 802.3at).
Q: Does this switch support stacking?
A: Yes, it supports VSF stacking with up to 10 units.
Q: Can I use 50G transceivers in the SFP56 ports?
A: Yes, with supported 50G DAC cables.
Q: Is this switch compatible with Aruba Central?
A: Yes, fully manageable via Aruba Central.
Precautions
- Ensure proper airflow and operating temperature (0°C to 45°C)
- Use only compatible HPE power supplies and transceivers
- Verify cabling specifications for high-speed uplinks
- Follow ESD precautions during installation
