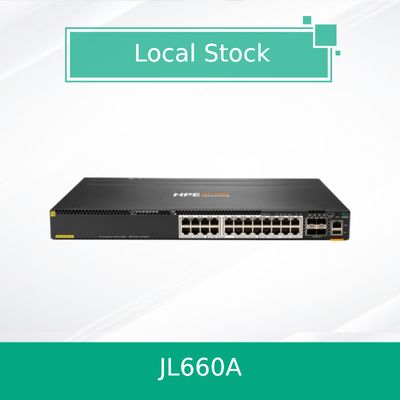

Hpe Aruba Networking Cx 6300m 24 Hpe Smart Rate Poe and 4 SFP56 Switch (JL660A)
Product Details:
| Brand Name: | Aruba |
| Model Number: | JL660A |
| Document: | JL660AHPE Aruba Networking ...nw.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | CX 6300M 24-port HPE Smart Rate 1/2.5/5GbE Class 6 | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Aruba OS |
| L3: | WLAN/STP/Lldp/Lacp | Poe: | Hpe Smart Rate |
| Transport Package: | Carton | Specification: | 449× 441 × 44mm |
| Trademark: | Extreme | Origin: | China |
| Highlight: | JL660A Aruba Switch,JL660A Aruba Switch,Hpe Smart Rate Poe Aruba Switch |
||
Product Description

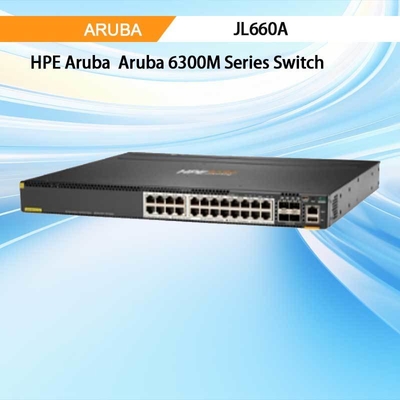

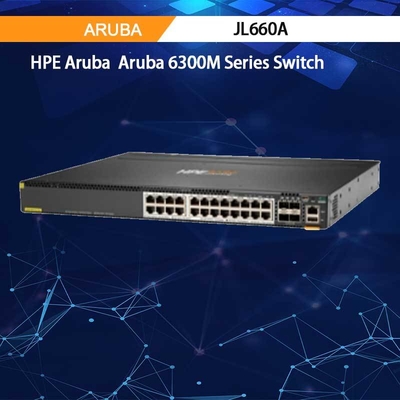

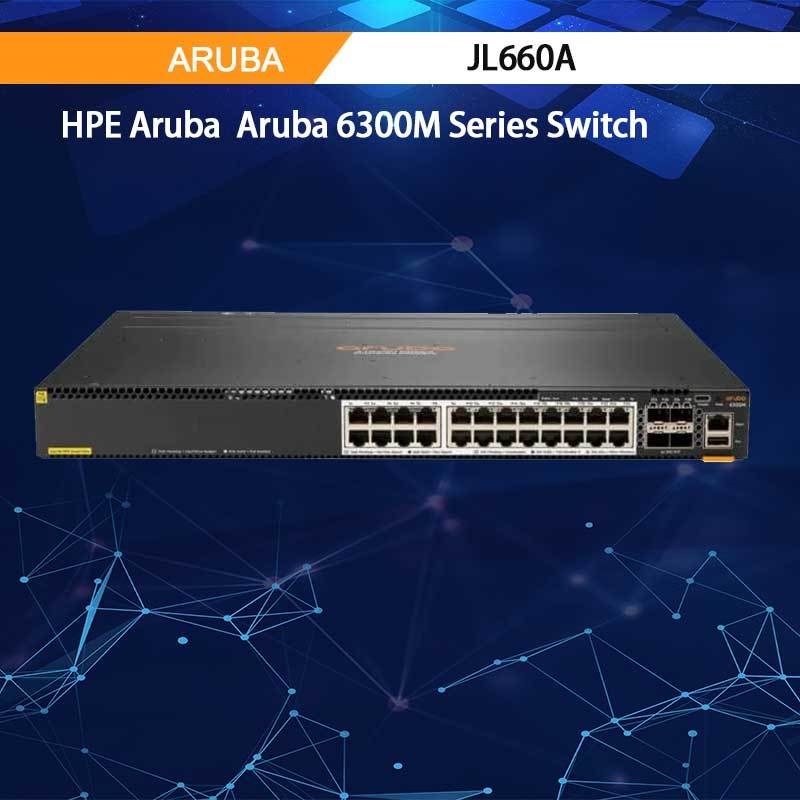

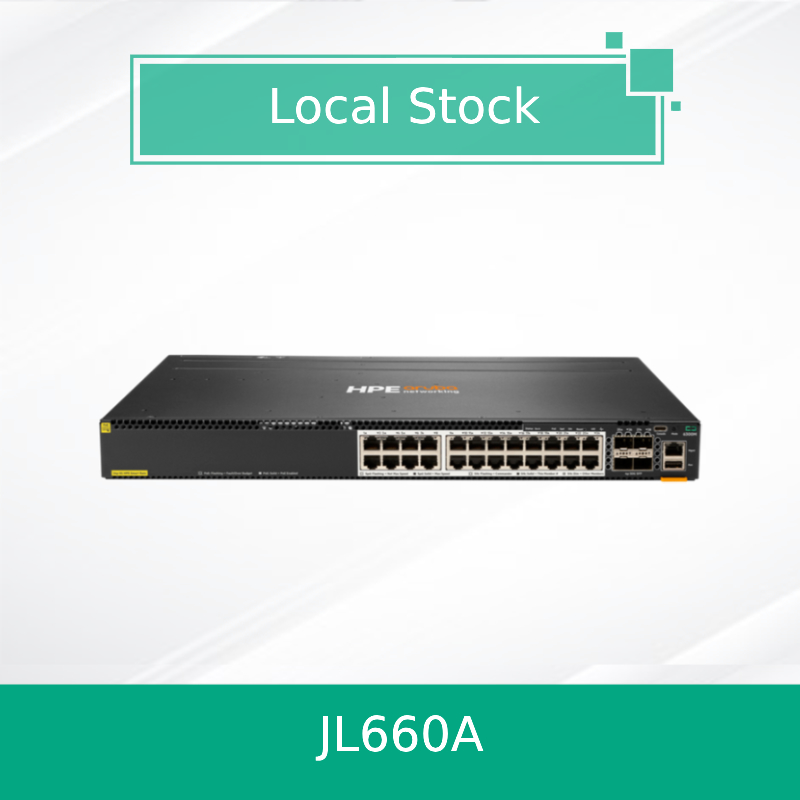

HPE Aruba Networking CX 6300M 24-port Smart Rate PoE+ Switch (JL660A)
Product Overview
The HPE Aruba Networking CX 6300M Switch (Model: JL660A) is a high-performance, stackable Layer 3 switch designed for modern enterprise access and aggregation layers. It features 24 multi-gigabit Smart Rate ports supporting PoE+ up to 60W per port, four high-speed SFP56 uplink ports, and advanced security and management capabilities. Ideal for IoT, wireless, and cloud-ready networks.
Key Features
- 24 x Smart Rate ports (100M/1G/2.5G/5G) with IEEE 802.3bt PoE+ (up to 60W/port)
- 4 x SFP56 uplink ports (1G/10G/25G/50G)
- HPE Aruba Networking CX OS with cloud-native management
- VSF stacking support for up to 10 units
- Advanced security with Dynamic Segmentation and MACsec
- Energy Efficient Ethernet (IEEE 802.3az)
Core Technologies
Built on Gen7 ASIC architecture, the switch supports BGP, OSPF, VXLAN, EVPN, and VRF. It features HPE Aruba Networking Central for unified management, Network Analytics Engine (NAE) for deep visibility, and Dynamic Segmentation for consistent policy enforcement across wired and wireless networks.
How It Works
The switch uses a distributed architecture with wire-speed switching and routing. It leverages Virtual Switching Framework (VSF) for scalable stacking and provides high availability through hot-swappable power supplies and fans. The CX OS enables automation via REST APIs and zero-touch provisioning.
Applications
- Enterprise access layer for high-density Wi-Fi 6/6E and IoT deployments
- Campus aggregation and core switching
- Data center top-of-rack (ToR) deployments
- Out-of-band management (OOBM) for server racks
- Education, healthcare, and government networks
Specifications & Selection Guide
| Specification | Value |
|---|---|
| Model | JL660A |
| Ports | 24 x Smart Rate RJ45, 4 x SFP56 |
| PoE Support | IEEE 802.3af/at/bt (up to 60W/port) |
| Switching Capacity | 640 Gbps |
| Throughput | 476 Mpps |
| Power Supplies | Hot-swappable, dual slots |
| Dimensions | 1.73" x 17.4" x 15.2" |
| Weight | 13.36 lb (6.06 kg) |
Advantages
- High PoE budget (up to 1440W total) for powering APs and IoT devices
- Flexible uplink options with 50G capability via DAC cables
- Zero-touch provisioning and centralized management with Aruba Central
- Enhanced security with TPM, ACLs, and role-based policies
- Low latency (<5μs) and jumbo frame support (9198 bytes)
Service & Support
We offer lifetime warranty, 24/7 technical support, and global shipping. Our team provides pre-sales consultation, configuration assistance, and post-sales maintenance. Custom integration services available for large deployments.
FAQ
Q: Does this switch support stacking?
A: Yes, it supports VSF stacking with up to 10 units.
Q: What is the maximum PoE power per port?
A: Up to 60W per port with IEEE 802.3bt.
Q: Is this switch compatible with Aruba Central?
A: Yes, it is fully manageable via Aruba Central.
Q: Can I use 50G transceivers?
A: Only 50G DAC cables are supported for stacking and interconnects.
Precautions
- Ensure proper airflow and operating temperature (0°C to 45°C)
- Use only supported transceivers and DAC cables
- Verify PoE budget before connecting high-power devices
- Follow EMC and safety standards during installation
