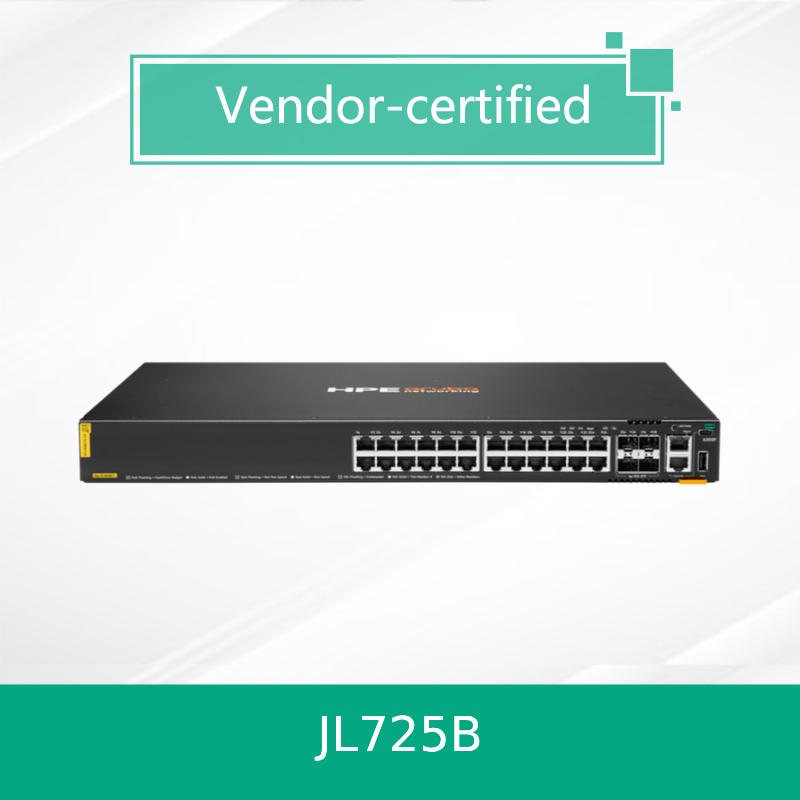

100% Genuine Products Hpe Aruba Networking Cx 6200f 24G Class-4 Poe 4SFP+ 370W Switch (JL725B)
Product Details:
| Brand Name: | Aruba |
| Model Number: | JL725B |
| Document: | JL725B HPE Aruba Networking...nw.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | CX 6200F 24G PoE 4SFP+ 370W Switch (JL725B) | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Aruba OS |
| L3: | WLAN/STP/Lldp/Lacp | Transport Package: | Carton |
| Specification: | 449× 441 × 44mm | Trademark: | Extreme |
| Origin: | China | ||
| Highlight: | CX 6200F 4SFP+ Switch,370W 4SFP+ Switch,4SFP+ Hpe Aruba Networking Switch |
||
Product Description
Product Overview
The HPE Aruba Networking CX 6200F 24G Class 4 PoE 4SFP+ 370W Switch (JL725B) is a next-generation stackable access switch designed for enterprise branch offices, campuses, and SMB networks. This advanced network switch combines cutting-edge hardware with modern software to deliver exceptional operational efficiency, built-in analytics, and automation capabilities.
This enterprise-class Aruba Switch features 24x 10/100/1000BASE-T PoE+ ports supporting up to 30W per port, plus 4x 1/10G SFP+ uplink ports. The JL725B model provides reliable Power over Ethernet connectivity for IP phones, wireless access points, security cameras, and IoT devices while offering robust security features and centralized management through HPE Aruba Networking Central.
Key Characteristics
- 24x Gigabit Ethernet ports with IEEE 802.3at PoE+ support (30W per port)
- 4x 1/10G SFP+ uplink ports for high-speed connectivity
- VSF stacking support for up to 8 switches with 40 Gbps stacking bandwidth
- HPE Aruba Networking CX Operating System with built-in analytics
- Advanced security features including dynamic segmentation and MACsec
- Cloud-managed with HPE Aruba Networking Central
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- Limited lifetime warranty with comprehensive support options
Core Technologies
The CX 6200 Switch Series incorporates several advanced technologies including:
- HPE Aruba Networking Gen7 ASIC architecture for programmable innovation
- Virtual Switching Framework (VSF) for simplified stacking and management
- Network Analytics Engine (NAE) for enhanced monitoring and troubleshooting
- Dynamic Segmentation for consistent policy enforcement across wired and wireless networks
- REST APIs and Python scripting for network automation
- Comprehensive Layer 2/Layer 3 routing protocols including OSPF, RIP, and VRF
Working Principle
The HPE Aruba Networking CX 6200 switch operates on a modern, database-driven operating system (AOS-CX) that provides stateful information tracking and automation capabilities. The switch utilizes a distributed architecture with HPE's Gen7 to deliver wire-speed performance across all ports.
For Power over Ethernet functionality, the switch incorporates intelligent power management that allocates power based on device requirements and available power budget. The built-in Network Analytics Engine continuously monitors network health and can trigger automated responses to network events through Python scripts.
Application Scenarios
The JL725B network switch is ideal for various deployment scenarios:
- Enterprise access layer deployments in campus environments
- Branch office connectivity with PoE support for IP phones and wireless APs
- Medium-sized business networks requiring reliable switching with advanced features
- Educational institutions for classroom and administrative networking
- Healthcare facilities for connecting medical devices and communication systems
- Retail environments supporting POS systems, cameras, and inventory management
Specification Table
| Specification | Value |
|---|---|
| Product Model | JL725B - HPE Aruba Networking CX 6200F 24G Class 4 PoE 4SFP+ 370W Switch |
| Ethernet Ports | 24x 10/100/1000BASE-T PoE+ ports |
| SFP+ Ports | 4x 1/10G SFP+ uplink ports |
| PoE Budget | 370W total, up to 30W per port |
| Switching Capacity | 128 Gbps |
| Throughput | 95.2 Mpps |
| Power Consumption | Idle: 32W, 100% traffic: 44W (230V AC) |
| Dimensions (HxWxD) | 1.72" x 17.42" x 11.98" (4.37 cm x 44.25 cm x 30.43 cm) |
| Weight | 4.39 kg (9.68 lbs) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
Competitive Advantages
The HPE Aruba Networking CX 6200F switch offers several distinct advantages:
- Modern Operating System: AOS-CX with built-in database and analytics capabilities
- Unified Management: Single-pane-of-glass management through Aruba Central
- Advanced Security: Dynamic segmentation, MACsec, and comprehensive ACL support
- Scalable Architecture: VSF stacking support for up to 8 units
- Reliable PoE: Always-on PoE even during reboots and firmware upgrades
- Programmability: REST APIs and Python scripting for automation
Service & Support
We provide comprehensive support services for all our networking products:
- Limited lifetime warranty on hardware
- 24/7 technical consultation and support
- Fast shipping with global delivery options
- Professional integration and configuration services
- Flexible support contracts including 4-hour onsite response options
- Access to firmware updates and technical documentation
Frequently Asked Questions
What is the maximum PoE power available per port on the JL725B switch?
The JL725B Aruba Switch supports IEEE 802.3at PoE+ standard, delivering up to 30W of power per port with a total PoE budget of 370W.
Can the JL725B be stacked with other switches?
Yes, this network switch supports VSF stacking with up to 8 members (24/48-port 6200F and 6200M switches) with up to 40 Gbps stacking bandwidth.
What management options are available for this switch?
The switch can be managed through HPE Aruba Networking Central (cloud-based), CLI, Web GUI, or REST APIs. It also supports integration with Aruba NetEdit for multi-switch management.
Does this switch support IPv6 routing?
Yes, the CX 6200 series supports comprehensive IPv6 features including IPv6 routing protocols (OSPFv3, static routing), ACLs, and management.
What transceivers are compatible with the SFP+ ports?
The switch supports a wide range of 1G and 10G SFP/SFP+ transceivers including SR, LR, ER, and LRM models from HPE Aruba Networking and compatible third-party options.
Important Considerations
- Ensure adequate airflow around the switch for proper cooling
- Verify power requirements for connected PoE devices to avoid exceeding the total PoE budget
- Plan stacking configurations carefully for optimal performance and redundancy
- Use supported transceivers and cables for guaranteed compatibility and performance
- Follow proper electrostatic discharge (ESD) procedures during installation
- Review firmware compatibility when deploying in mixed-version environments
