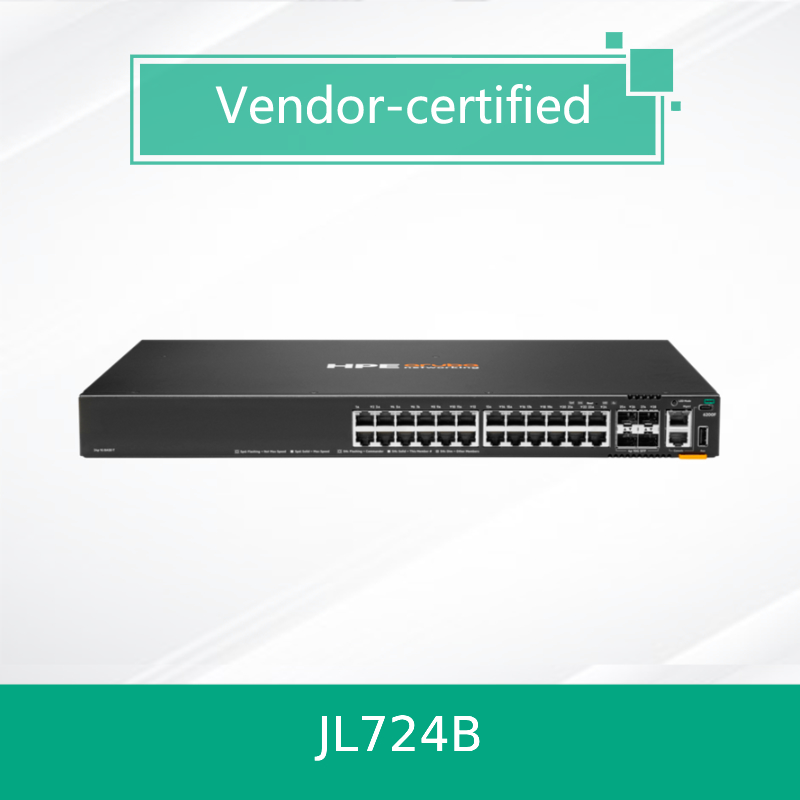

High-Performance Access Layer Switches Cx 6200f 24G 4SFP+ Switch (JL724B) User-Friendly Aruba Network Switch
Product Details:
| Brand Name: | Aruba |
| Model Number: | JL724B |
| Document: | JL724B HPE Aruba Networking...nw.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | CX 6200F 24G 4SFP+ Switch (JL724B) | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Aruba OS |
| L3: | WLAN/STP/Lldp/Lacp | Transport Package: | Carton |
| Specification: | 449× 441 × 44mm | Trademark: | Extreme |
| Origin: | China | ||
| Highlight: | JL724B Access Layer Switch,4 SFP+ Access Layer Switch,CX 6200F Access Layer Switch |
||
Product Description
Product Overview
The HPE Aruba Networking CX 6200F 24G 4SFP+ Switch (JL724B) is a next-generation, enterprise-class access switch designed for modern campus and branch office networks. It delivers high-performance connectivity with 24x 1GbE downlink ports and 4x 1/10G SFP+ uplink ports, providing flexible and scalable network expansion. Built with the HPE Aruba Networking Gen7 ASIC architecture, this switch offers advanced features such as VSF stacking, dynamic segmentation, and robust security, all managed through the intuitive HPE Aruba Networking Central platform.
Key Features
- 24x 10/100/1000BASE-T ports and 4x 1/10G SFP+ uplink ports
- VSF stacking support for up to 8 switches with 40 Gbps stacking bandwidth
- HPE Aruba Networking CX Operating System with built-in analytics and automation
- Dynamic Segmentation for consistent policy enforcement across wired and wireless networks
- Energy Efficient Ethernet (EEE) and hot-patching support for reduced downtime
Technical Specifications
| Specification | Value |
|---|---|
| Model | JL724B - HPE Aruba Networking CX 6200F 24G 4SFP+ Switch |
| Downlink Ports | 24x 10/100/1000BASE-T |
| Uplink Ports | 4x 1/10G SFP+ |
| Switching Capacity | 128 Gbps |
| Throughput | 95.2 Mpps |
| Power Supply | Fixed |
| Dimensions (HxWxD) | 1.72" x 17.42" x 11.2" (4.37 cm x 44.25 cm x 28.45 cm) |
| Weight | 8.59 lbs (3.90 kg) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
Technology & Protocols
The CX 6200 Switch Series supports a wide range of industry standards and protocols including:
- IEEE 802.1AE MACsec, 802.1Q VLANs, 802.1w RSTP, 802.3ad LACP
- IPv6 (ND, ICMPv6, OSPFv3, ACL)
- sFlow, SNMPv3, REST APIs, Python scripting
- VSF stacking, dynamic segmentation, and QoS features
Applications
Ideal for enterprise access layer deployments, campus networks, branch offices, and mid-market businesses. Supports high-density Wi-Fi 6/6E APs, IoT devices, IP cameras, and voice over IP (VoIP) systems. Suitable for educational, healthcare, retail, and government sectors.
Advantages & Differentiators
- HPE Aruba Networking Central for cloud-based management
- Network Analytics Engine (NAE) for real-time monitoring and troubleshooting
- Dynamic Segmentation for unified policy across wired and wireless
- Gen7 ASIC for low latency and high performance
- Lifetime warranty and global support services
Service & Support
All HPE Aruba Networking switches come with a limited lifetime warranty. Optional support services include 24/7 technical assistance, onsite hardware replacement, and software updates. Professional services available for deployment and integration.
FAQ
Q: What is the maximum stacking capability of the JL724B switch?
A: It supports up to 8 switches in a VSF stack with 40 Gbps stacking bandwidth.
Q: Does this switch support PoE?
A: The JL724B model does not support PoE. For PoE capabilities, consider the JL725B model.
Q: Can I manage this switch via cloud?
A: Yes, through HPE Aruba Networking Central, a cloud-based management platform.
Q: What security features are included?
A: It includes MACsec, ACLs, RADIUS/TACACS+, dynamic segmentation, and secure management access.
Q: Is the switch compatible with third-party transceivers?
A: Yes, via Unsupported Transceiver Mode (UTM), though without warranty support.
Precautions
- Ensure proper ventilation and operating temperature range (0°C to 45°C).
- Use only compatible HPE Aruba Networking transceivers for full warranty support.
- Follow ESD precautions during installation and maintenance.
- Verify power requirements and compatibility before deployment.
