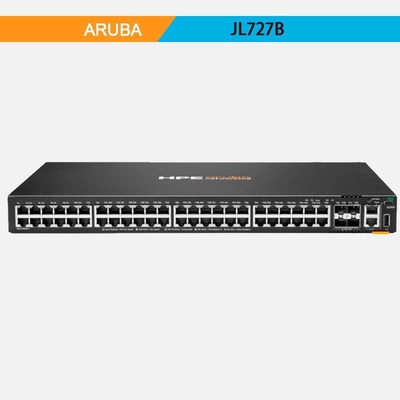

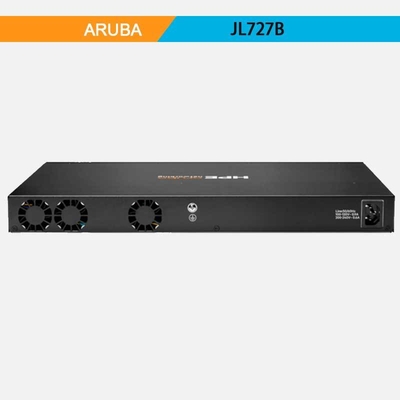

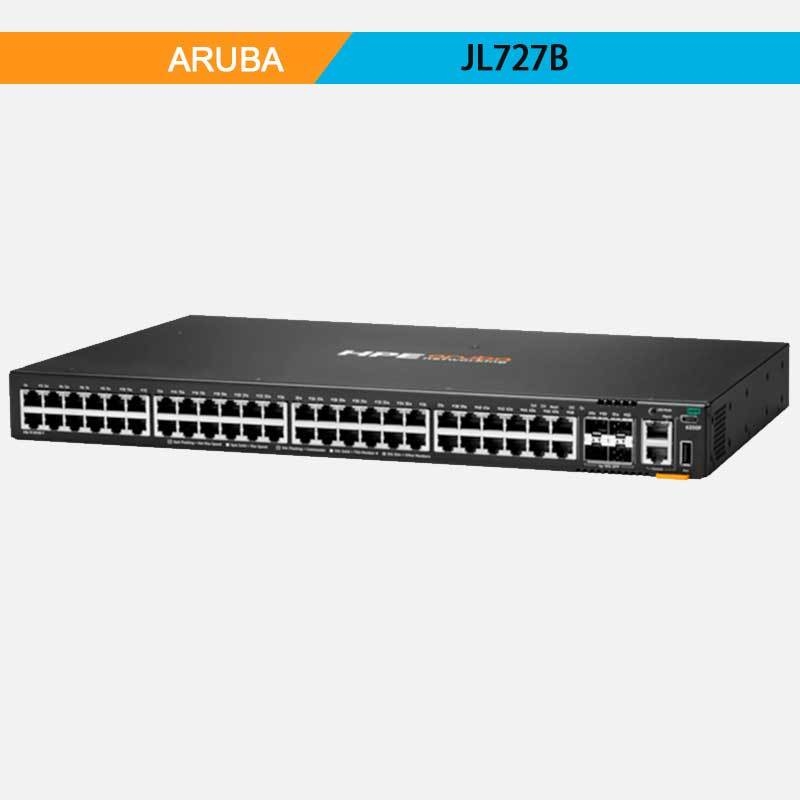

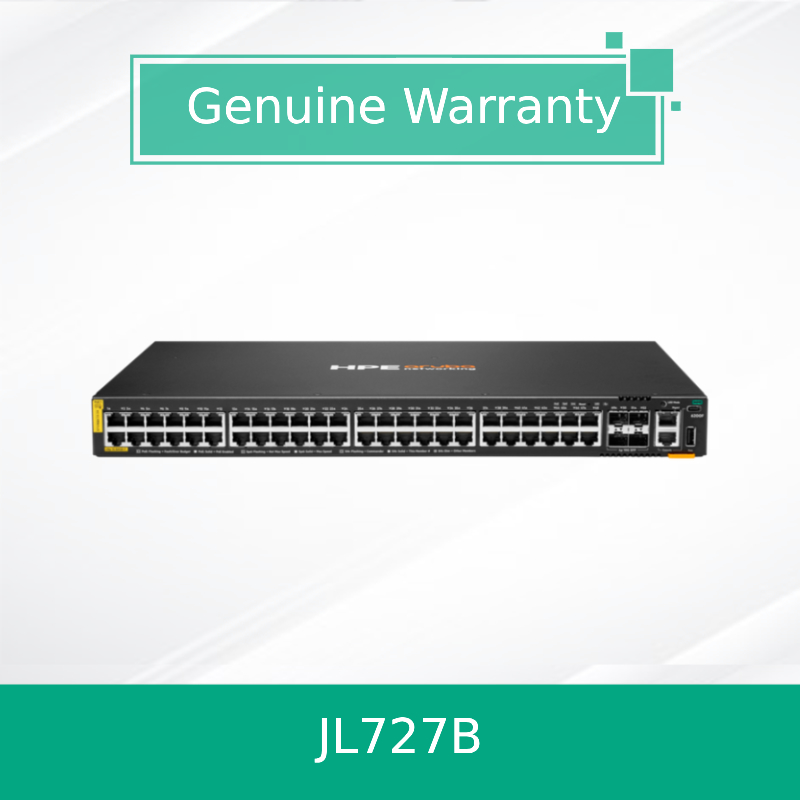

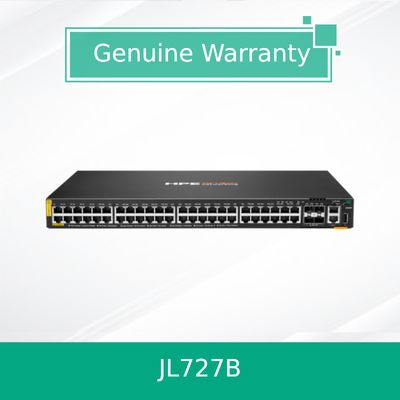

100% Genuine Products Hpe Aruba Networking Cx 6200f 48g Class-4 Poe 4SFP+ 370W Switch (JL727B)
Product Details:
| Brand Name: | Aruba |
| Model Number: | JL727B |
| Document: | JL727BHPE Aruba Networking ...EN.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | CX 6200F 48G PoE 4SFP+ 370W Switch (JL727B) | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Aruba OS |
| L3: | WLAN/STP/Lldp/Lacp | Transport Package: | Carton |
| Specification: | 449× 441 × 44mm | Trademark: | Extreme |
| Origin: | China | ||
| Highlight: | 48g PoE Aruba Networking Switch,4SFP+ Hpe Aruba Networking Switch,370W Hpe Aruba Networking Switch |
||
Product Description
HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727A)
High-Value Selling Points
- Enterprise-class Layer 3 access switch with 48x PoE+ ports and 4x SFP+ uplinks.
- Supports up to 370W PoE budget for powering IoT devices, APs, and cameras.
- VSF stacking technology allows up to 8 units to operate as a single logical switch.
- Built-in network analytics and automation with CX NAE and Python scripting.
- Cloud-ready with Aruba Central management and dynamic segmentation.
1. Product Overview
The HPE Aruba Networking CX 6200F Switch (JL727A) is a high-performance, stackable access switch designed for enterprise edge, campus, and branch deployments. It delivers robust Layer 3 features, PoE+ support, and advanced analytics in a compact form factor.
2. Key Characteristics
- 48x 10/100/1000BASE-T PoE+ ports with IEEE 802.3af/at support
- 4x 1/10G SFP+ uplink ports
- VSF stacking with up to 8 members
- 370W PoE budget
- Bluetooth and USB-C for out-of-band management
- Quad-core ARM CPU with 8GB DDR4 memory
3. Core Technologies
This Aruba switch leverages Gen7 ASIC architecture for low-latency forwarding, VXLAN for network segmentation, and REST API for automation. It supports OSPF, static routing, ACLs, QoS, and MACSec encryption.
4. Working Principle
The switch operates as a distributed forwarding system where each port uses dedicated hardware for packet processing. The CX Network Analytics Engine (NAE) continuously monitors traffic and device states, storing data in a time-series database for real-time troubleshooting.
5. Applications & Usage
Ideal for powering wireless access points, IP cameras, and IoT deployments in education, healthcare, retail, and mid-market enterprises. Suitable as an access layer switch in stacked or standalone configurations.
6. Specifications
| Attribute | Value |
|---|---|
| Model Number | JL727A |
| Ethernet Ports | 48x 1G PoE+, 4x SFP+ |
| PoE Budget | 370W |
| Switching Capacity | 176 Gbps |
| Throughput | 130.9 Mpps |
| Latency | 1.46 μs (10G), 2.28 μs (1G) |
| Power Supply | Fixed 500W (370W PoE) |
| Dimensions | 4.39 x 44.2 x 32.7 cm |
| Weight | 5.05 kg |
7. Advantages & Selling Points
This Aruba switch offers superior PoE density, advanced programmability, and seamless integration with Aruba Central. Compared to previous generations, it provides better buffering, deeper analytics, and more flexible stacking options.
8. Service & Support
We provide lifetime hardware warranty, 24/7 technical consultation, and global shipping. Custom configuration and integration services available upon request.
9. Frequently Asked Questions
Q: What is the maximum PoE output per port?
A: Each port supports up to 30W under IEEE 802.3at standard.
Q: Can I mix different models in a VSF stack?
A: Yes, CX 6200F and CX 6200M models can be stacked together.
Q: Does it support Layer 3 routing?
A: Yes, it supports static routing and OSPF.
10. Precautions
- Ensure adequate airflow and ambient temperature below 45°C.
- Use compatible SFP+ transceivers for optimal performance.
- Verify power budget before connecting high-power PoE devices.
