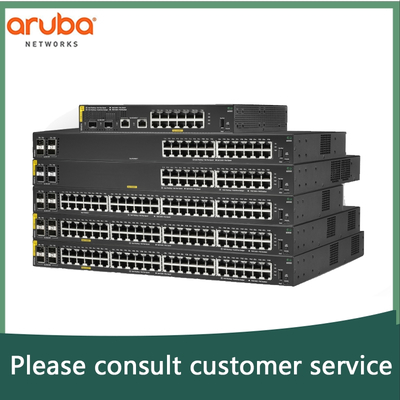

Hpe Aruba Networking Cx 6000 48g Class4 Poe 4SFP 370W Switch (R8N85A)
Product Details:
| Brand Name: | Aruba |
| Model Number: | R8N85A |
| Document: | R8N85A HPE Aruba Networkin...EN.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | CX 6000 48G PoE 4SFP 370W Switch (R8N85A) | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Aruba OS |
| L3: | WLAN/STP/Lldp/Lacp | Transport Package: | Carton |
| Specification: | 449× 441 × 44mm | Trademark: | Aruba |
| Origin: | China | Condition: | New And Original |
| Highlight: | R8N85A Aruba Networking Cx 6000 Switch,Class4 Poe Aruba Networking Switch,HPE Cx 6000 Aruba Networking Switch |
||
Product Description
HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch (R8N85A)
Product Overview
The HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch (Model: R8N85A) is a modern, fully-managed Layer 2 access switch designed for enterprise branch offices, mid-sized businesses, and small enterprises. It delivers reliable, secure, and convenient wired access connectivity, making it an ideal foundation for networks supporting IoT, mobile, and cloud applications. This switch combines high-performance gigabit connectivity with robust Power over Ethernet (PoE) capabilities, simplified management options, and a future-ready architecture.
Key Selling Points:
- High-density 48-port Gigabit Ethernet switch with 4x built-in 1G SFP uplinks.
- Up to 370W of Class 4 PoE/PoE+ support for APs, IP cameras, and IoT devices.
- Fanless, compact design suitable for noise-sensitive and space-constrained environments.
- Unified management via HPE Aruba Networking Central, CLI, Web GUI, or REST APIs.
- No software licensing or subscription required—simplifying total cost of ownership.
Characteristics
- 48 x 10/100/1000BASE-T ports, 4 x 1G SFP fiber uplinks
- Supports IEEE 802.3af/at PoE standards with up to 30W per port
- Dual-core ARM Cortex A9 processor @ 1.016 GHz
- 8 GB DDR3 memory, 16 GB eMMC storage
- Static routing, ACL, QoS, sFlow, IPv6 support
- USB-C console port and USB Type-A host port
Technology
This Aruba switch runs on the programmable HPE Aruba Networking CX Operating System (AOS-CX), ensuring consistent operation across the CX portfolio. It features a dedicated ASIC for low latency and adaptive power consumption. The switch supports modern standards including sFlow, REST APIs, and IEEE 802.3at/af PoE, making it ready for software-defined networking and IoT integration.
Working Principle
The switch operates at Layer 2 of the OSI model, providing Ethernet switching, VLAN segmentation, traffic prioritization, and PoE management. It uses hardware-based forwarding to achieve high throughput with minimal latency. The built-in PoE controller dynamically allocates power to connected devices such as wireless access points and IP cameras, ensuring efficient energy use.
Application & Usage
Ideal for:
- Enterprise branch offices and campus access layers
- Mid-market and small business networks
- IoT and digital workplace deployments
- Unified wired and wireless access environments
- Quiet environments such as libraries, classrooms, and clinics
Specification Table
| Attribute | Value |
|---|---|
| Model Number | R8N85A |
| Ports | 48x 10/100/1000BASE-T, 4x 1G SFP |
| PoE Budget | 370W (Class 4) |
| Switching Capacity | 104 Gbps |
| Throughput | 77.3 Mpps |
| Latency | 1.9 μs (1 Gbps) |
| Power Consumption | 45W (non-PoE), 480W (max) |
| Dimensions | 4.4 x 44.2 x 30.5 cm |
| Weight | 5.0 kg |
Advantages & Selling Points
- Cost-Effective: No license required for core features.
- Future-Ready: REST API support for automation and SDN.
- Quiet Operation: Fanless design ideal for office environments.
- High PoE Output: Supports power-intensive devices like APs and cameras.
- Flexible Management: Choose from Central, CLI, Web GUI, or Multi-Edit tools.
Service & Support
We offer comprehensive support including warranty services, technical consultation, and 24/7 customer service. Our professional team ensures timely delivery and post-sale support. We also provide integration services and network design assistance for large-scale deployments.
FAQ
Q: What is the maximum PoE power per port?
A: Up to 30W per port, compliant with IEEE 802.3at.
Q: Does this switch support Layer 3 routing?
A: It supports static routing only—ideal for Layer 2 access deployments.
Q: Is the switch fanless?
A: Yes, it operates silently, making it suitable for quiet environments.
Q: Can I manage it via the cloud?
A: Yes, through HPE Aruba Networking Central.
Precautions
- Ensure adequate ventilation and operating temperature between 0°C to 45°C.
- Verify PoE device compatibility before deployment.
- Use supported SFP modules for fiber uplinks.
- Follow local electrical and safety standards during installation.
