Hpe Aruba Networking 2930f 48g Poe+ 4SFP 370W Switch (JL262A) New and Original
Product Details:
| Brand Name: | Aruba |
| Model Number: | JL262A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | 2930F 48G PoE+ 4SFP (JL262A) | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Aruba OS |
| L3: | WLAN/STP/Lldp/Lacp | Transport Package: | Carton |
| Specification: | 449× 441 × 44mm | Trademark: | Aruba |
| Origin: | China | Condition: | New And Original |
| Highlight: | Poe+ 370W Switch,Aruba Networking 2930f 370W Switch |
||
Product Description

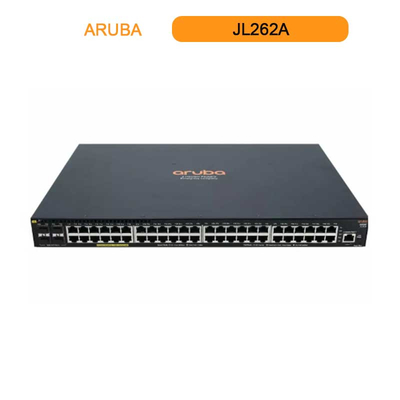

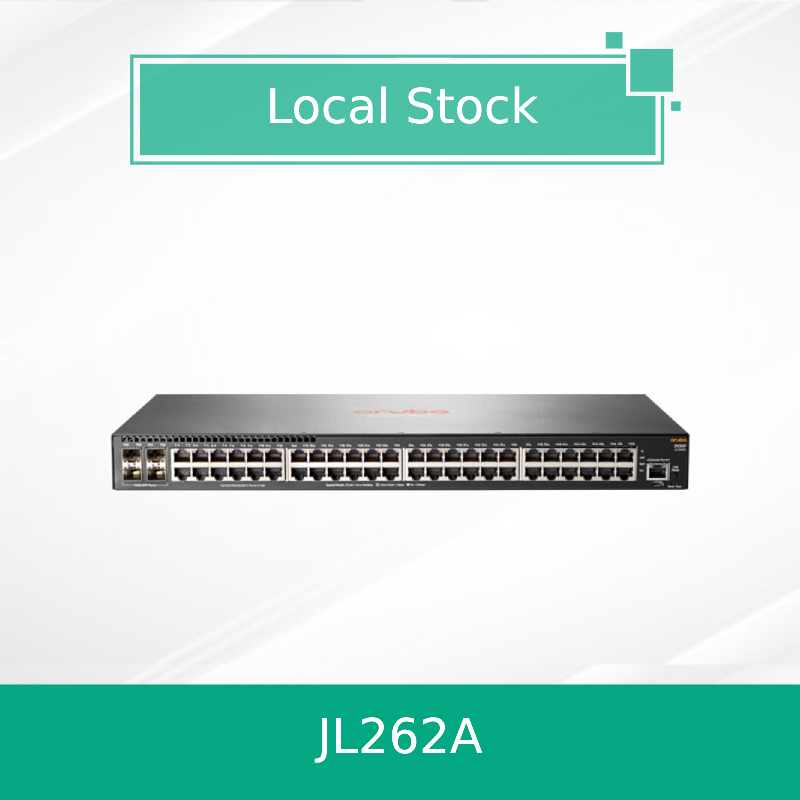

HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch (JL262A)
Product Overview
The HPE Aruba Networking 2930F Switch Series represents a sophisticated line of Layer 3 network switches engineered for modern digital workplaces. The JL262A model specifically delivers 48 Power over Ethernet Plus (PoE+) ports and 4 SFP fiber slots, providing robust connectivity and power delivery for enterprise networks. This switch integrates seamlessly with wired and wireless infrastructures, supporting advanced management through cloud-based HPE Aruba Networking Central or on-premises solutions.
Key Features
- 48 x PoE+ ports (IEEE 802.3at) with up to 370W total power budget
- 4 x SFP gigabit fiber slots for uplink or fiber connectivity
- Layer 3 static and RIP routing support
- Virtual Switching Framework (VSF) for stacking up to 8 units
- Advanced security features including Dynamic Segmentation and ClearPass integration
- Energy-efficient design with 80 PLUS Silver certified power supply
Technology & Protocols
The 2930F Switch Series incorporates HPE's ProVision ASIC for high performance and low latency. It supports a comprehensive suite of networking protocols including:
- IPv4/IPv6 dual stack, RIP, OSPF, and static routing
- IEEE 802.1Q VLAN, 802.1ad Q-in-Q, and 802.1X authentication
- LLDP, LLDP-MED, and PoE/PoE+ allocation management
- SNMPv3, RMON, and sFlow for monitoring and management
- OpenFlow 1.3 and REST APIs for software-defined networking
Applications
The JL262A switch is ideal for:
- Enterprise access layer deployments
- Unified wired and wireless networks
- IP phone, wireless AP, and security camera connectivity
- Campus and branch office networks
- SDN-ready infrastructure with OpenFlow support
Specifications
| Specification | Value |
|---|---|
| Product Model | JL262A |
| Ethernet Ports | 48 x 10/100/1000 PoE+ |
| SFP Slots | 4 x 1G SFP |
| PoE Budget | 370W |
| Switching Capacity | 104 Gbps |
| Throughput | 77.4 Mpps |
| Power Consumption | 48.6W (idle), 459W (max) |
| Dimensions (W x D x H) | 17.42 x 11.98 x 1.73 in |
| Weight | 9.83 lb (4.46 kg) |
Advantages
- High-Density Connectivity: 48 PoE+ ports support extensive device deployments
- Simplified Management: Zero Touch Provisioning and cloud-based Central management reduce deployment time
- Enhanced Security: Dynamic Segmentation, TPM, and comprehensive ACLs protect against threats
- High Availability: VSF stacking and smart link redundancy ensure continuous operation
- Energy Efficiency: 80 PLUS Silver certification and Energy Efficient Ethernet reduce operational costs
Service & Support
All HPE Aruba Networking switches come with a limited lifetime warranty. Our company provides additional value with:
- 24/7 technical consultation and support
- Fast shipping with global logistics network
- Professional integration and configuration services
- Compatible accessories and transceivers from major brands
Frequently Asked Questions
Q: What is the maximum PoE power per port?
A: Each PoE+ port supports up to 30W, compliant with IEEE 802.3at standard.
Q: Can this switch be stacked with other 2930F models?
A: Yes, using Virtual Switching Framework (VSF), you can stack up to 8 switches of the 2930F series.
Q: Does this switch support IPv6 routing?
A: Yes, it supports IPv6 static routing and RIPng protocol.
Q: What is the difference between JL261A and JL262A models?
A: The JL262A provides 48 PoE+ ports compared to 24 ports on the JL261A, offering higher port density for larger deployments.
Precautions
- Ensure proper ventilation and operating temperature (32°F to 113°F)
- Verify PoE power budget when connecting multiple high-power devices
- Use compatible HPE Aruba transceivers for optimal performance
- Follow electrostatic discharge (ESD) procedures during installation
- Configure appropriate security policies before network deployment
