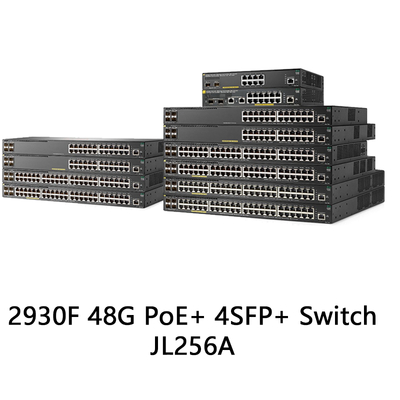

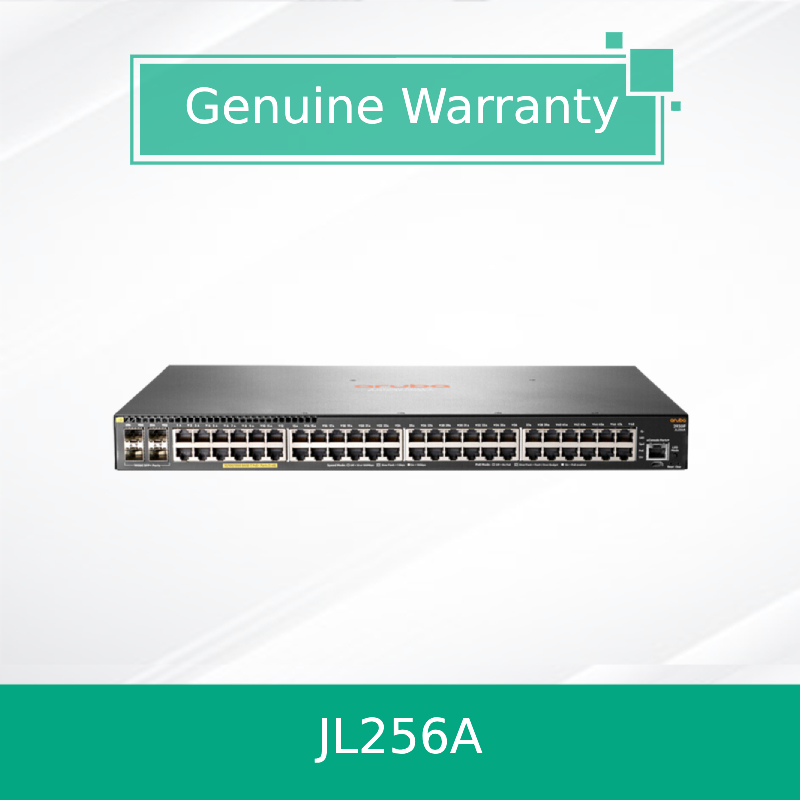

Hpe Aruba Networking 2930f 48g Poe+ 4SFP+ Switch JL256A New and Original
Product Details:
| Brand Name: | Aruba |
| Model Number: | JL256A |
| Document: | HPE Aruba Networking 2930F ...29.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | 2930F 48G PoE+ 4SFP+ (JL256A) | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Operating System: | Aruba OS |
| L3: | WLAN/STP/Lldp/Lacp | Transport Package: | Carton |
| Specification: | 449× 441 × 44mm | Trademark: | Aruba |
| Condition: | New And Original | ||
| Highlight: | 4SFP+ Switch JL256A,Poe+ Switch JL256A,Hpe Aruba Networking 2930f Switch |
||
Product Description
Product Overview
The HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch (JL256A) is a high-performance Layer 3 managed switch designed for modern digital workplaces. It integrates wired and wireless connectivity with advanced security, cloud management, and PoE+ support—all without requiring software licenses.
Key Features
- 48 x PoE+ Gigabit Ethernet ports + 4 x SFP+ 10GbE uplinks
- Layer 3 static, RIP, and Access OSPF routing
- Cloud management via HPE Aruba Central
- Virtual Switching Framework (VSF) stacking for scalability
- Zero Touch Provisioning for easy deployment
Key Characteristics
- Unified wired and wireless policy enforcement via ClearPass
- Dynamic Segmentation for user/device-aware security
- REST APIs and OpenFlow support for SDN readiness
- Energy-efficient design with 80 PLUS Silver certified PSU
- Built-in TPM for hardware-based security
Technology & Protocols
The switch supports a wide range of industry standards including:
- IPv4/IPv6 dual stack, RIPng, OSPFv2/v3
- IEEE 802.1Q VLAN, 802.1ad Q-in-Q, 802.3ad LACP
- IEEE 802.3at PoE+ with LLDP-MED power management
- SNMPv3, RADIUS, TACACS+, SSH, SSL
- sFlow, RMON, and REST API for monitoring and automation
How It Works
The 2930F Switch uses HPE's ProVision ASIC to deliver low-latency switching and advanced traffic processing. It can be stacked with up to 8 units using VSF, forming a single logical switch. Policies are enforced dynamically per user or device, and traffic can be tunneled to controllers for centralized management.
Applications
- Enterprise access layer for offices and campuses
- Unified wired and wireless deployments
- IP phone, camera, and wireless AP connectivity
- SDN-ready network infrastructure
- High-density PoE environments
Specifications
| Attribute | Value |
|---|---|
| Model | JL256A |
| Ports | 48 x 10/100/1000 PoE+, 4 x SFP+ |
| PoE Budget | 370W |
| Switching Capacity | 176 Gbps |
| Throughput | 112 Mpps |
| Power Supply | Internal, 100-240V AC |
| Dimensions (WxDxH) | 44.25 x 30.42 x 4.39 cm |
| Weight | 4.46 kg |
Advantages
- No license required for core features
- Lifetime warranty with advanced replacement
- Integrated cloud and on-premises management
- Low latency and high buffering capacity
- Advanced security with TPM and dynamic segmentation
Service & Support
We offer:
- Limited lifetime warranty
- 24/7 technical support
- Global shipping with tracking
- On-site service options available
- Integration and configuration assistance
FAQ
Q: Does this switch support stacking?
A: Yes, it supports VSF stacking with up to 8 units.
Q: Is a license required for Layer 3 features?
A: No, static RIP and OSPF are included without license.
Q: What is the maximum PoE power per port?
A: Up to 30W per port (IEEE 802.3at PoE+).
Q: Can it be managed via the cloud?
A: Yes, via HPE Aruba Central.
Q: Is it fanless?
A: No, this model has fans for cooling.
Precautions
- Ensure adequate airflow and operating temperature (0°C to 45°C)
- Use compatible SFP/SFP+ transceivers for optimal performance
- Follow local electrical safety standards during installation
- Verify PoE power budget before connecting high-power devices
- Keep firmware updated for latest security patches
