High-Performance Hpe Aruba 9012-RW (R1B32A) Wireless Controller for Business
Product Details:
| Brand Name: | Aruba |
| Model Number: | 9012-RW (R1B32A) |
| Document: | R1B32A-DS_9000Series .pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | 9012-RW (R1B32A ) | WiFi Antenna Type: | External |
|---|---|---|---|
| Transmission Rate: | >200Mbps | Voltage: | 5V |
| Antenna Gain: | 23dBi | Security Features: | AES-Ccmp |
| Condition: | New And Original | Trademark: | Aruba |
| Highlight: | Business Wireless Controller,R1B32A Wireless Controller,Hpe Aruba 9012-RW Wireless Controller |
||
Product Description

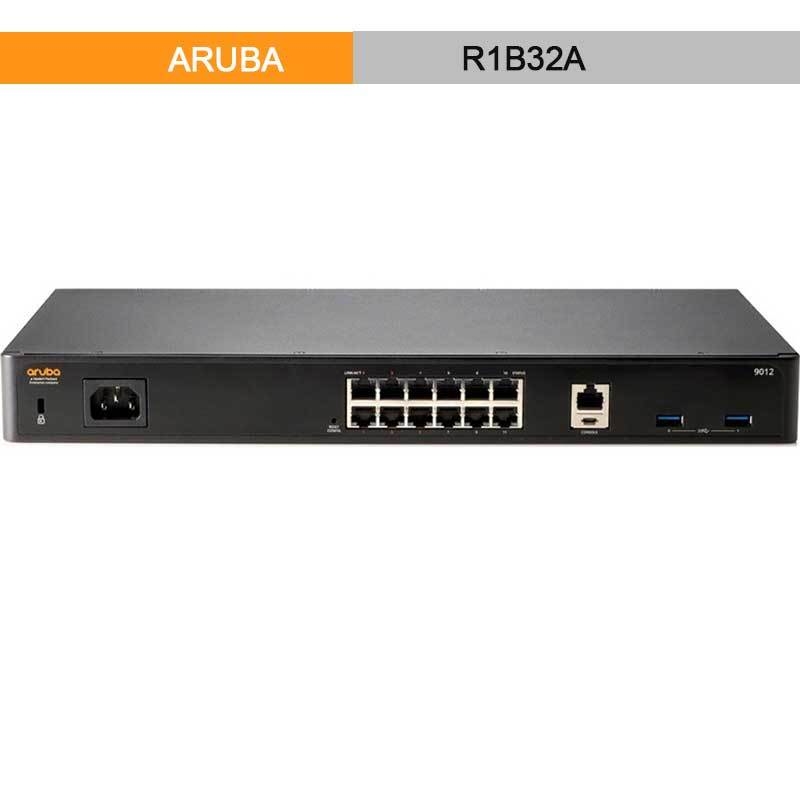

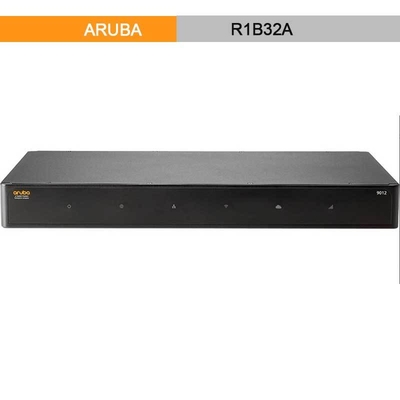

HPE Aruba Networking 9012 (RW) Gateway – 12xGbE (6xPoE+), 2K Clients, 32 APs
Product Overview
The HPE Aruba Networking 9012 Gateway, part of the versatile 9000 Series, is a high-performance, cloud-managed networking solution designed for branch and small campus deployments. This powerful network switch and wireless controller combo delivers integrated SD-WAN, security, and wired and wireless connectivity in a single, cost-effective appliance. It supports up to 2,048 users, offers 6 Gbps firewall throughput, and includes 12 Gigabit Ethernet ports (6 with PoE+), making it an ideal Aruba solution for modern distributed enterprises.
Key Features
- Cloud-managed via HPE Aruba Networking Central for simplified operations
- 12x Gigabit Ethernet ports (6x PoE+ with 120W total power budget)
- Integrated SD-WAN and security with stateful firewall and IDS/IPS
- Dynamic Segmentation for unified policy enforcement across wired and wireless networks
- Application visibility and control for over 3,800 applications
- High availability with clustering support (up to 4 devices per cluster)
Core Technologies
The 9012 Gateway leverages several advanced technologies, including:
- Deep Packet Inspection (DPI) for application recognition and control
- EVPN/VXLAN overlay support via NetConductor
- Role-based Policy Enforcement Firewall (PEF)
- Integrated LTE (optional on 9004-LTE model)
- Bluetooth 5 and IoT radio support for BLE devices
- AI-powered operations via Aruba Central Insights
How It Works
The 9012 Gateway acts as a centralized policy enforcement point. Wired and wireless traffic is tunneled to the gateway, where user, device, and application-aware policies are applied based on roles defined in ClearPass Policy Manager. It supports both SD-WAN and traditional WLAN gateway modes, providing flexibility in deployment. In SD-WAN mode, it optimizes WAN traffic, prioritizes critical applications like Microsoft 365, and provides integrated threat defense.
Applications & Use Cases
- Branch office networking and SD-WAN deployment
- Small to mid-sized campus wireless and wired access
- Secure IoT device onboarding and segmentation
- Unified Communications and Collaboration (UCC) support
- Redundant and high-availability network clustering
Specifications
| Feature | 9012 Gateway |
|---|---|
| Ports | 12x GbE (6x PoE+) |
| Firewall Throughput | 6 Gbps |
| Max Clients | 2,048 |
| Max APs | 32 (standalone), 256 (cluster) |
| Power Consumption | 160W (max with PoE) |
| Dimensions (HxWxD) | 4.37 cm x 39.5 cm x 26.00 cm |
| Weight | 3.42 kg |
| Operating Temp | 0°C to 40°C |
Advantages & Differentiators
- Unified wired and wireless policy enforcement via Dynamic Segmentation
- Integrated PoE+ reduces need for external power injectors
- Cloud-native management with AI-driven insights and automation
- High-availability clustering for mission-critical deployments
- Future-ready with EVPN/VXLAN and IoT connectivity support
Service & Support
We offer:
- 1-year hardware warranty (extendable via support contract)
- 90-day software support (extendable)
- 24/7 customer service and technical consultation
- Global shipping and large-quantity supply capabilities
- On-site deployment support and integration services
Frequently Asked Questions
Q: Can the 9012 Gateway be used as both a switch and a wireless controller?
A: Yes, it can operate as a mobility controller for WLAN and LAN services, including Dynamic Segmentation and firewall policies.
Q: Does it support high availability?
A: Yes, up to 4 gateways can be clustered for N+1 or NxN redundancy.
Q: Is PoE supported on all ports?
A: Only 6 of the 12 ports support PoE+ with a total budget of 120W.
Q: Can it be rack-mounted?
A: Yes, an optional rack mount kit is available (part number R4X13A).
Precautions & Notes
- Ensure adequate ventilation and operating temperature (0°C to 40°C).
- PoE budget is shared across 6 ports—plan power requirements accordingly.
- When used in SD-WAN mode, it cannot simultaneously act as a mobility controller.
- Complies with FCC, CE, and other global regulatory standards.
- Use only approved power adapters and accessories.
